WEG-AMA024409999-300 - Sequence Stag 200 Go-Fast w01 R02 AC 136km set

В наличии
Код товара:
9507857979
12222,00 ₴
Добавить в список желаний Добавить к сравнению
main product photo
+38 (095) 900-37-17
+38 (067) 900-37-17
Основные параметры
Дополнительная информация
Состояние Новый
Номер детали WEG-AMA024409999-300
Описание

COMPLETE SEQUENTIAL GAS INJECTION

STAG 200 GoFast

with AC w01 strip and integrated AC r02 REDUCER

(the whole set under the hood without the tank, hoses, copper pipes and multivalve)

the main idea of the controller is an intuitive system with great emphasis on quick and easy installation, where the number of built-in functions is fully compatible with the operation of most cars. Univerality of the controller is also emphasized by the number of car groups it is aimed at, that is: sequence, half-sequence, full group.

Функциональность:

<улей>
  • new, intuitive operating program on the PC with clear display of parameters
  • Simple Controller calibration,
  • New hardware platform based on a 32 bit processor,
  • possibility of expansion with new Software functions,
  • способность запускать приложение без водителя в демо-режиме,
  • control unit with built-in buzzer with упрощенный assembly method - only 3 wires are required for connection.
  • new compact plastic Housing working
  • in temp. -40…. + 140 ° C, сопротивление влажности, количество соединительных кабелей является минимальным.

    • STAG 200 GoFast does not require an ignition switch signal, which significantly shortens the installation time. Simplifications also been introduced when calculating RPM based on Injection times-нет необходимости подключать кабель

    with rotation pulses. Подключение коммутатора также стало простым, так как оно ограничено только 3 проводами сборки.

    Ease of Calibration:

    <улей>
  • all functions are placed on two panels and there is no need to switch between tabs,
  • built-in Oscilloscope function,
  • After disconnecting the communication cable with the PC, the controller resumes The transmission by itself.

    • possibilities:

    <улей>
  • Reminder about the inspection of the gas installation
  • Preview of operating parameters on an oscilloscope
  • 2D petrol injection Time map
  • Operation mode-CNG fuel
  • Engine RPM Signal filter
  • Working with different types of Injection control (standard, doubling)
  • Standard and turbo Engine type
  • Mazda ™ leaning
  • Extra-injection cut-off threshold
  • Built-in temperature and Gas Pressure corrections
  • Gas injectors heating
  • Gas temperature correction map
  • Reducing the pressure of the reducer during cut-off (emptying)
    • <улей>
  • Setting of the permissible number of emergency starts
  • Sound signaling informing about starting in safe mode
  • a warm start
  • Automatic setting of the gas Level indication
  • Option "leaning on a cold engine" - ограниченный the maximum injection time on a cold engine
  • Gas Pressure sensor error detection
  • Autocalibration - "all at once" option
  • Information about the car and gas installation
  • Petrol proportion (Petrol adding)
  • автоматическая регулировка множителя
  • Intelligent Post-injection control-this feature eliminates The need for the" mazda depletion " function known from stag300 controllers
  • Reading the RPM on the basis of petrol injection pulses
  • Detection of lack and overload of the solenoid valve
  • Injection sequence change options
  • Injector flow correction
  • Correction of the injectors ' opening time
  • Ignition switch Signal from Petrol injection pulses

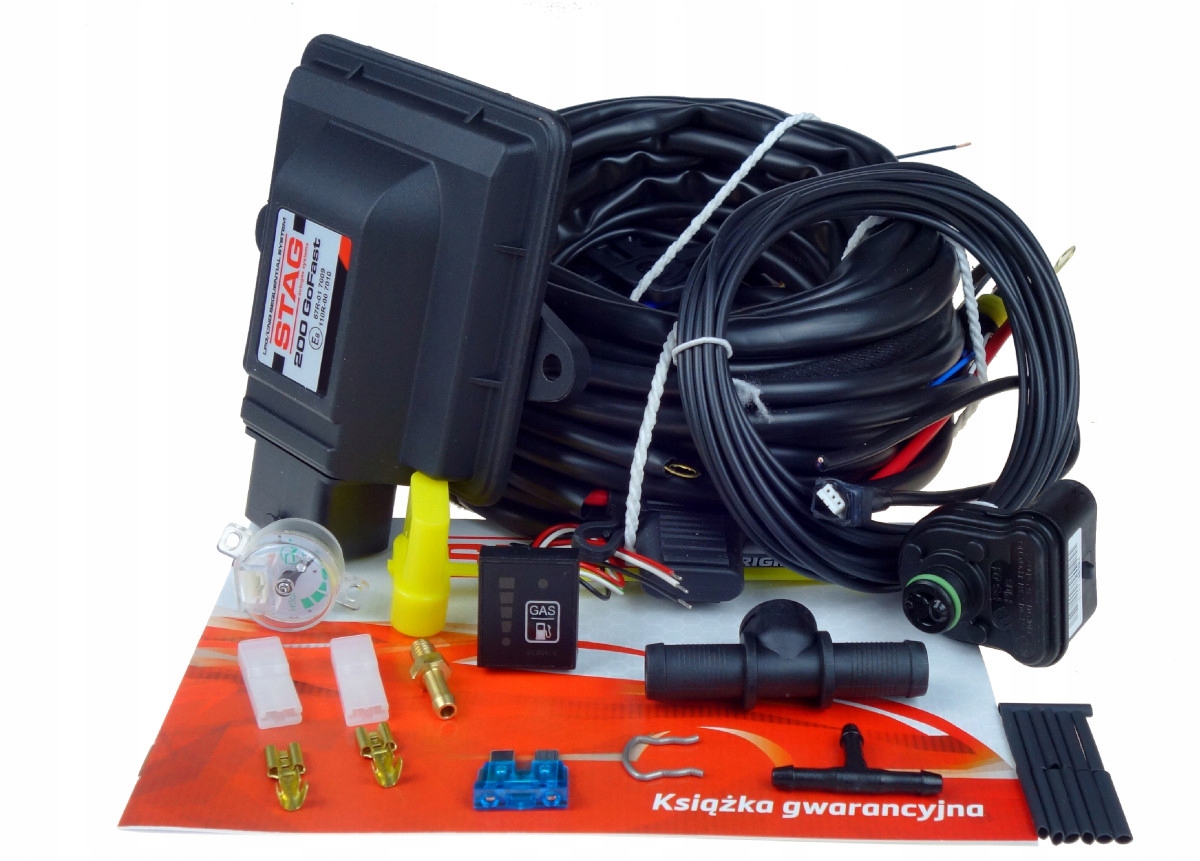

    • the kit includes:

    <улей>

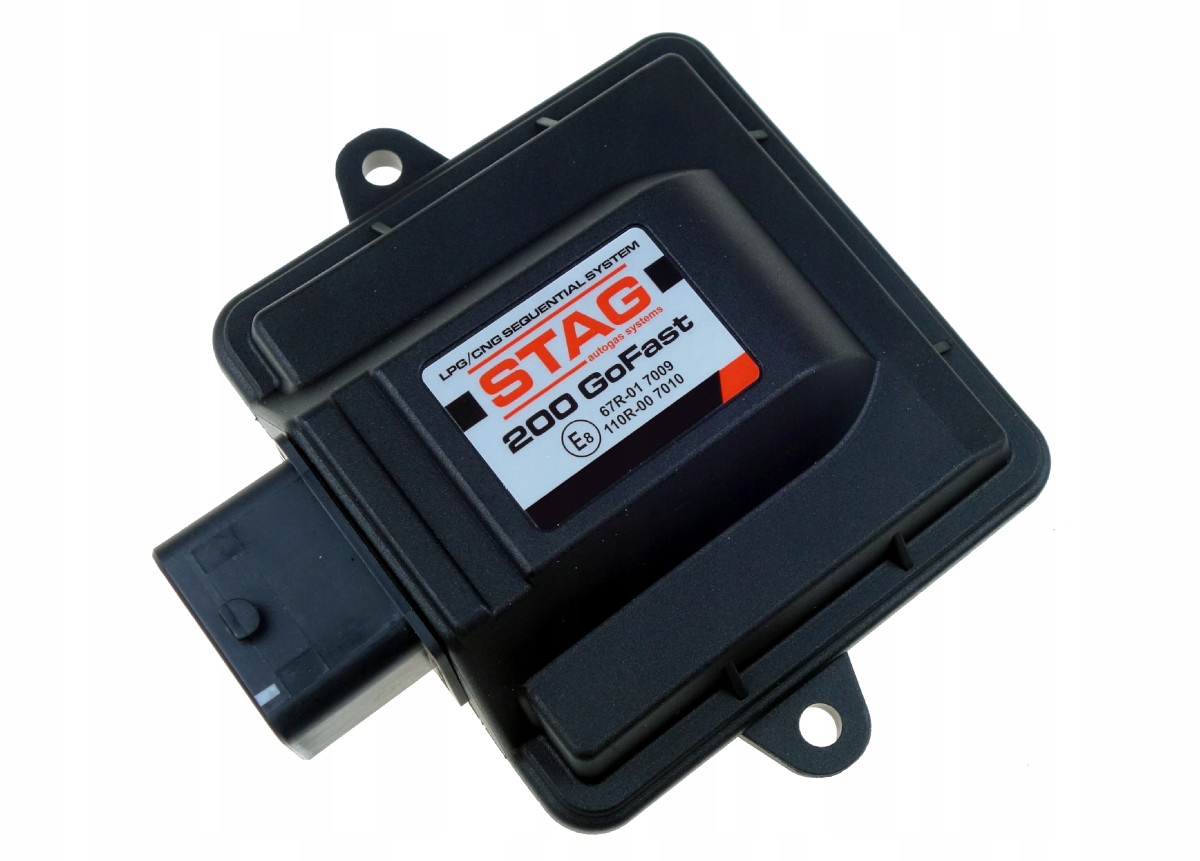

  • STAG 200 GoFast computer
  • AC r02 редуктор до 136 л. с.
  • впрыскивание Rail AC W01 4 цил.
  • electric bundle
  • датчик давления (Map-sensor) AC PS-02
  • central

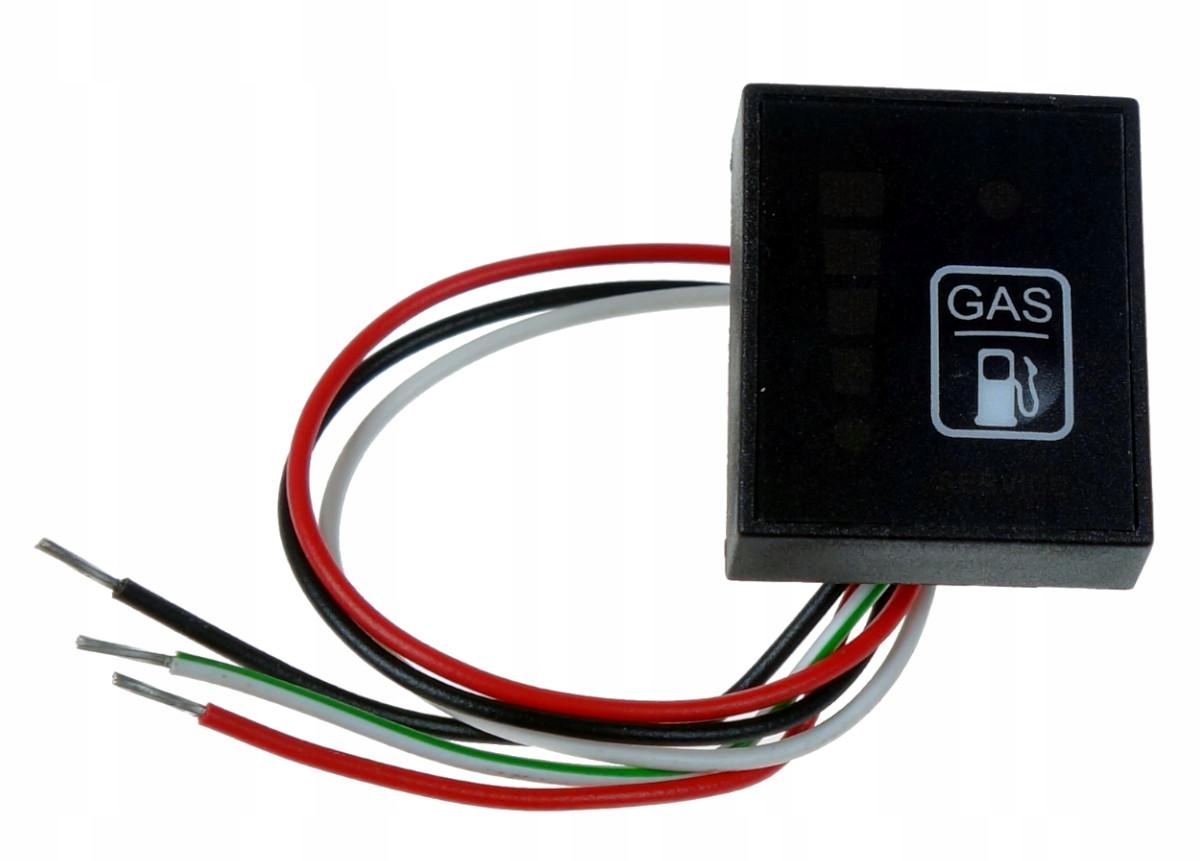

  • Full indication of gas Status sensor with cable
  • volatile Phase filter
  • assembly bag

    • это возможно установить установку в нашей компании !!!
