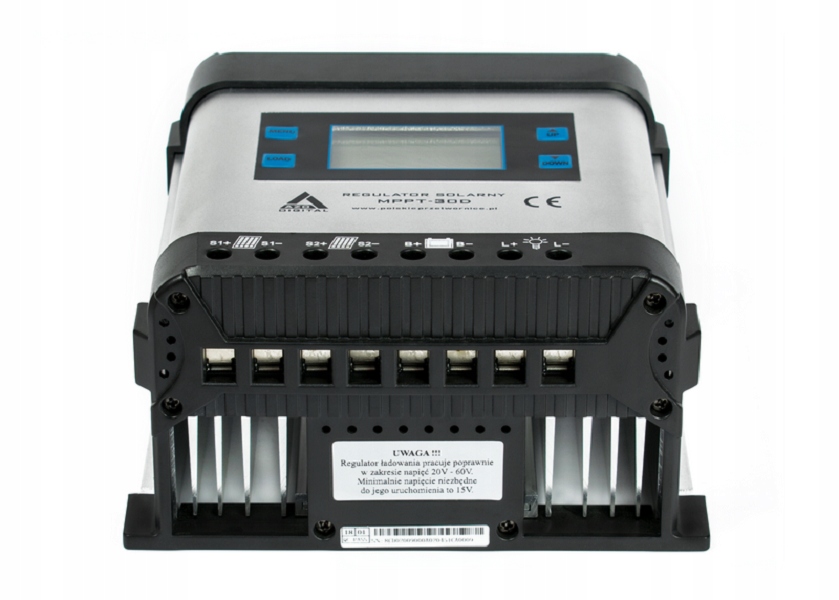

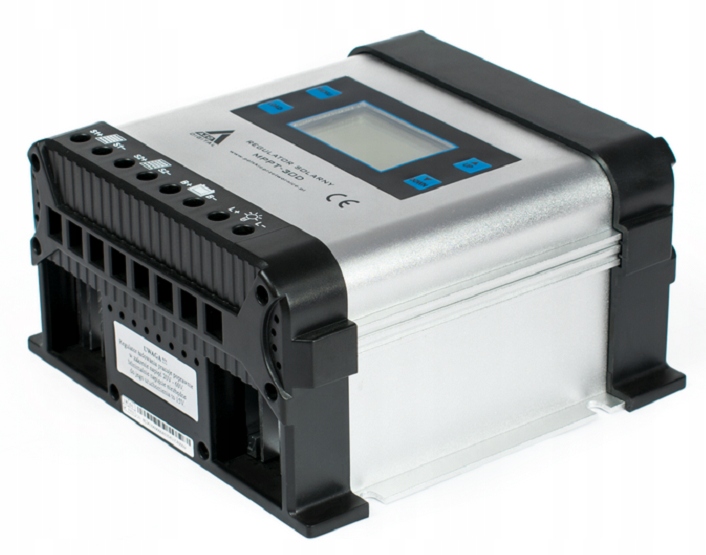

Солнечный контроллер заряда MPPT 30A LCD Camper

В наличии
Код товара:
9478666098
8552,00 ₴
Основные параметры
Дополнительная информация
Состояние Новый
Описание
солнечный регулятор заряда MPPT 30A LCD

контроллер солнечной заряда MPPT 30A LCD 12 / 24V

MPPT regulators are an improved version of PWM regulators .

естественно, they fulfill all the basic functions that are required of a cargo hold Controller. They have an additional built-in feature called MPPT, i. e. MPP tracking of PV modules . MPP is the point of maximum power of the panel determined in the current-voltage characteristics. Thanks to the MPPT system, the controller постоянно checks the voltage on the panel, detecting the maximum power point, which significantly accelerates the charging of the battery through the panel. MPPT Accelerate Battery Charging 20-это 30% быстрее, чем регуляторы PWM.

регулятор MPPT is an excellent choice for the climatic conditions in our country.

Характеристика:

  • Maximum work point tracking (MPPT)
  • Automatic 12 / 24V Voltage detection
  • Voltage and current regulation
  • Multi-stage charging technology
  • Disconnecting receivers
  • Automatic switch-on after disconnection
  • LCD display of operating parameters

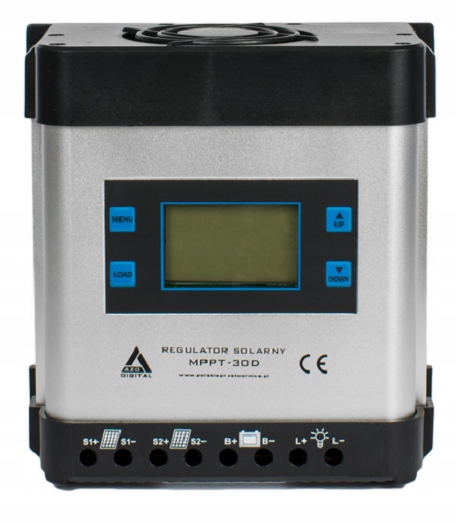

  • Solarny regulator ladowania MPPT 30A LCD KAMPER

    система безопасности:

  • Overcharging the battery
  • Battery deep discharge
  • Обратная полярность on each of the inputs / outputs
  • Automatic electronic fuse
  • Short circuit protection
  • Surge protectors at the панель ввода
  • High voltage uoc protection when battery is not connected
  • Before reverse current to the panel at night
  • Against overheating and overloading
  • battery disconnection with too high voltage
  • 0e4c56444c7caddcbd8e5bc942d9
    7ae9db374c85bfcef2dee1f4744b

    PARAMETERS:

  • Output - input voltage: 12V - 20V-60V / 24V - 30V-90V (автоматическое обнаружение)
  • поддерживаемый тип батареи: AGM / Gel
  • зарядное напряжение (adjustable): 14.0 V ÷ 15.0 V / 28.0 V 3 30.0 V
  • Холдинг напряжение: 13.8 в / 27.6 в
  • напряжение отключения (LVD): 10.4 V ÷ 11.4 V / 20.8 V ÷ 22.8 V
  • напряжение переподключения: 12.2 V ÷ 13.2 V / 24.4 V ÷ 26.4 V
  • Battery overvoltage protection: 12V-17v / 24V-34v
  • PV защита от перенапряжения: 12V - 60V / 24V-90V
  • максимальный ток зарядки: 30A
  • максимальный ток нагрузки: 30A
  • Own power consumption: <1ma (standby) / 15ma (work) / 130ma (work with connected load)
  • рабочая температура: -25 ° C ~ + 55 ° C
  • максимальный размер провода: 16 мм / 6awg
  • размеры LxWxH [мм]: 175 x 175 x 95
  • Вес [кг]: 1.54
