CETOP 4-SECTION HYDRAULIC DISTRIBUTOR
ELECTRICALLY CONTROLLED 12V
!!! ATTENTION !!! IN the SEPARATOR WITHOUT the RELIEF there is NO POSSIBILITY of FREE FLOW of OIL THROUGH the PLATE !!!
Application:
it is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.
распределитель адаптирован к различным типам машин, таким как: сельскохозяйственные машины, тракторы, распылители, повороты, циклопы, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines и другие устройства с гидравлической системой.
технические данные:
the set includes a set of connections with an m18x1.5 output and a set of electric plugs.
Recommended Oil flow in the system: 0-60 л / мин.
Example of control: three double-acting actuators.
материал:
Distributor body and steel sliders, electric свечи and plastic clamping nuts, block made of steel or aluminum, depending on the batch.
Electricity:
Power supply alternating current (DC) 12V
Connection (internal threads in the body):
Pump feed( P): BSP 1/2 " internal thread
Return to tank( T): BSP 1/2 " Female thread
разделы (A1, A2, A3, A4; B1, B2, B3, B4): BSP 3/8 " Female thread
диапазон давления:
Maximum pressure on the supply: 250bar
Maximum pressure on the return: 50Bar
Maximum pressure on sections: 300bar
The overflow valve is factory set at 175bar
Possibility of independent regulation, full turn change by 30Bar.
рекомендуемый диапазон температуры масла:
Permissible ambient temperature: -40 C до +60 C
Permissible oil temperature: -15 C to +80 C

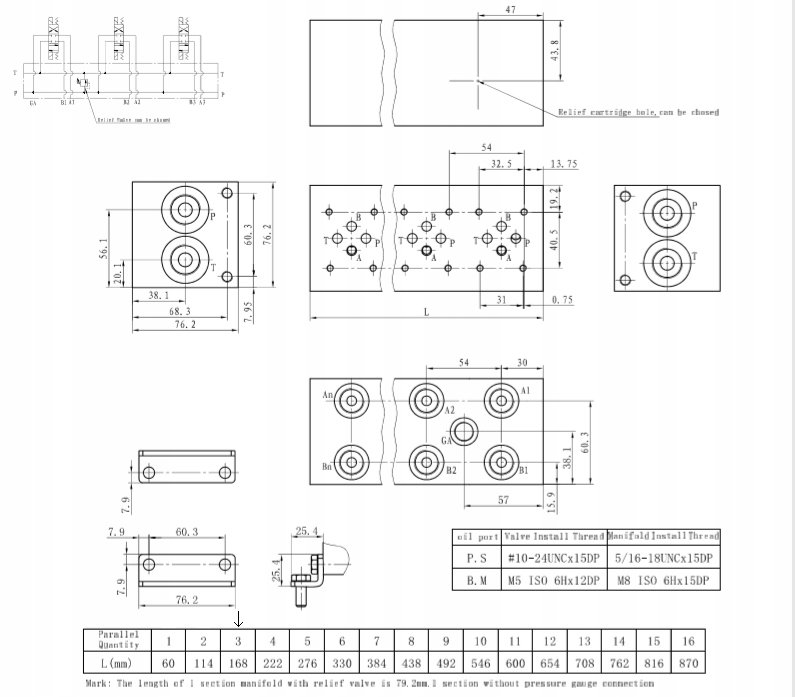

The listing is for the manifold from the description above
There is a possibility of a different configuration of the solenoid-distributor.
