DESCRIBE:
★ Load modes: low CC, CV, CW, CR Base load mode, low Input or uplink protection and online multi-load simultaneous Online alarm
★ High precision and high stability: optimized heat рассеянии structure, high power density and digital control method, higher precision, good stability, RS485, 232 communication interface, MODBUS protocol.
★ Protection function: with over-voltage, over-current, power supply, over-temperature protection functions, low-voltage telemetry function;
★ Automatic test function: with externalin / O trigger signal, PASS, FAIL instructions, powerful and friendly PC software.
★ Multiple test functions: 10kHz low frequency dynamic test function; low battery test function; internal resistance test function of the battery; overcurrent low point / time test function; low fan PWM control; 110 в ПЕРЕМЕННОГО тока / 220 в ПЕРЕМЕННОГО тока switching power supply.
FUNCTION:
<улей>

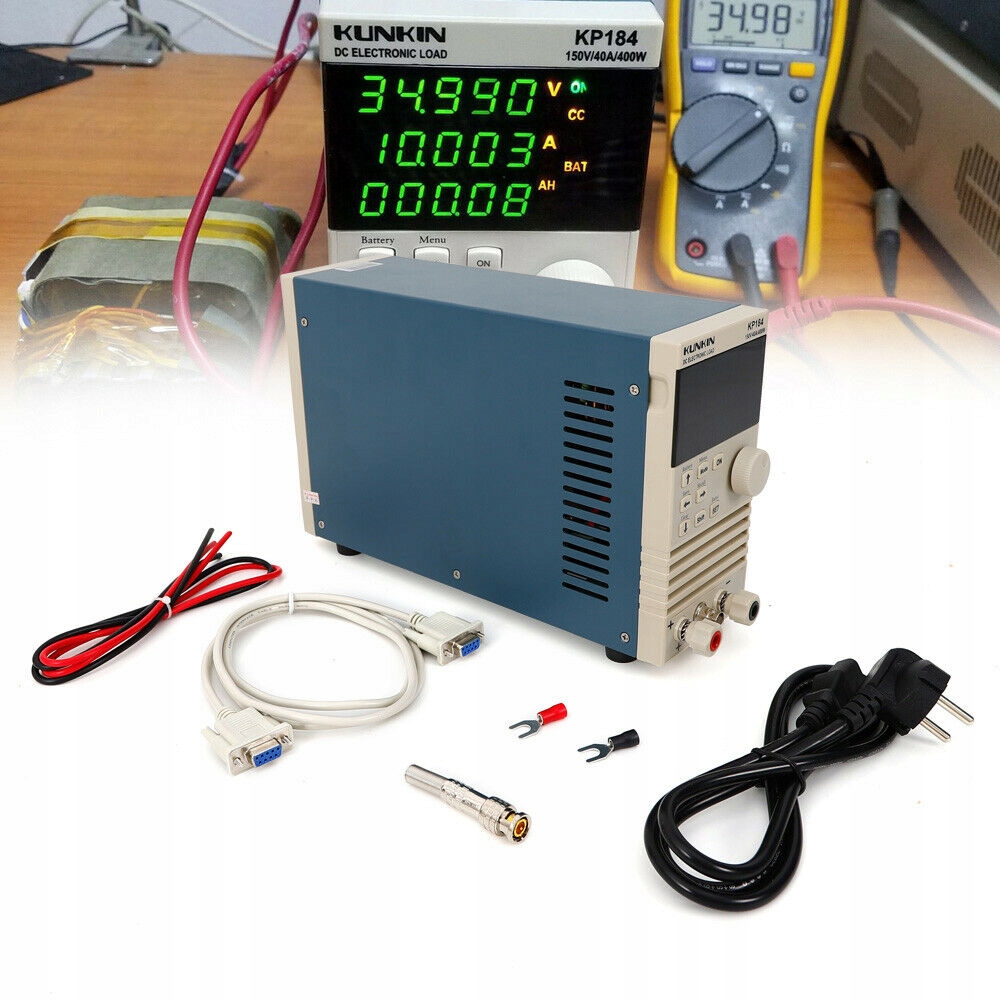

модель: KP184
Power plug: EU plug
улей>
Energy энергопотреблением:
<улей>
Voltage: AC 110V / 220V ± 10%, 50 ± 2Hz
потребляемая мощность: & lt;20W
улей>
Load Input:
<улей>
load voltage: DC 1-150v
load current: 0-40A
мощность нагрузки: 0-400W
улей>
D Measurement accuracy:
<улей>
ток: ± 0.05% + 5ma
напряжение: ± 0.05% + 5mv
улей>
control decision:
<улей>
ток: ± 0.05% + 5ma
напряжение: ± 0.05% + 5mv
метод связи: RS232 / RS485
улей>
PROTECT:
<улей>
Overvoltage (OV): greater than 152v with no load
Overtemperature (OT): 85 ° C
Overcurrent (OP): single channel 410w
Power fuse: 0.5 a
Ambient temperature range
0 ~ 500 ℃
диапазон влажности окружающей среды
: 10 ~ 90% RH
DC input terminal to the housing withstands ± 500vdc
вход постоянного тока в жилое сопротивление изоляции: > 20 мкг, 500 В постоянного тока
AC input to the case Insulation resistance: > 20 мкг, 500 В постоянного тока
улей>
Dimensions (mm) L × W × H: about 300 × 90 × 190
Размер упаковки: 38.5 * 16 * 27см
Вес: 4.5 кг
