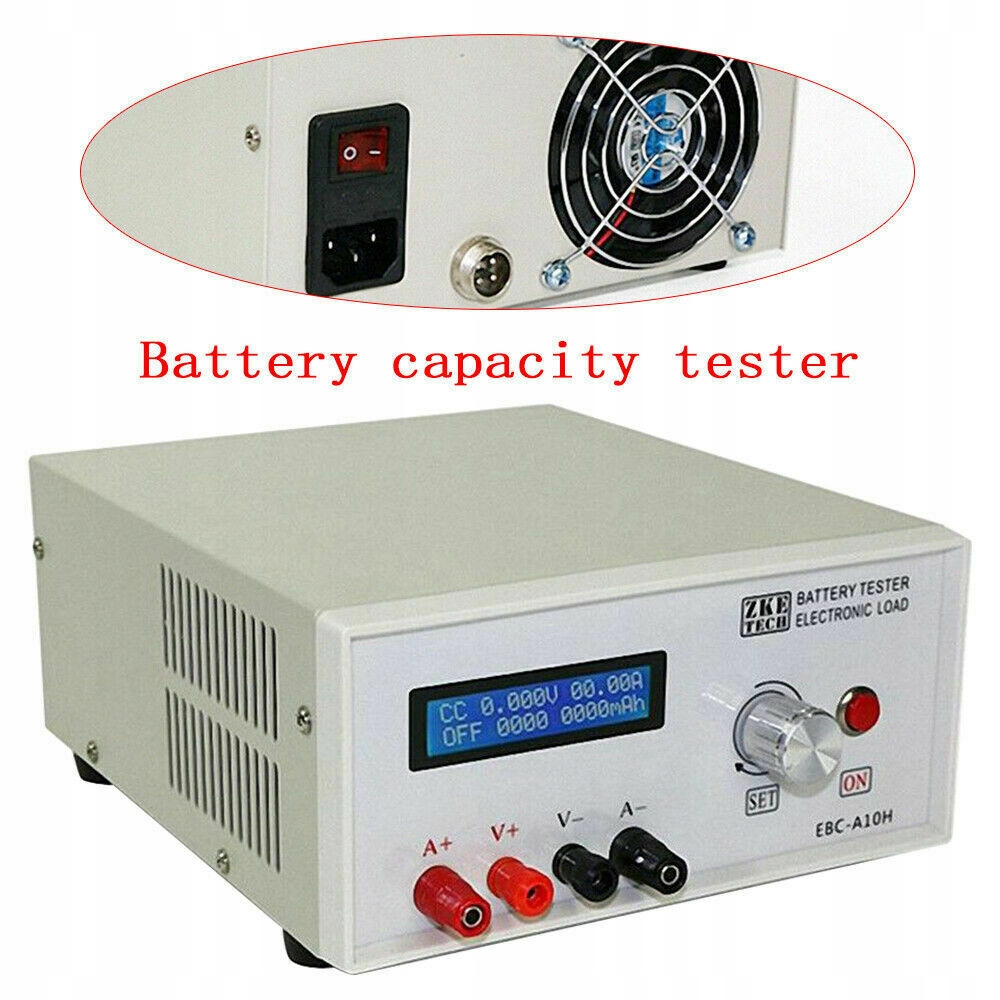

The EBC-A10H is an electronic load with a charging function. Suitable for charging and discharging capacity test of various batteries, mobile power discharge test, charging head performance test, support computer connection, and realize more extensive functions with online software.
Product specification:
блок питания: AC110-220V
Voltage setting: discharge: 0.00-30.00 V, минимальный размер шага 0.01 V
зарядка: 0.00-22.00 V, минимальный размер шага 0.01 V
Current setting: discharge: 0.05-10.00 a минимум Step size 0.01 A (automatic Current limit when the power exceeds the limit)
Charging: 0.05-5.00 a, the minimum Step size is 0.01 A (the maximum current is limited by the power supply current)
Discharge mode: DSC-CC: постоянный текущий discharge, используемый для тестирования емкости батареи или тока питания;
DSC-CP: постоянный ток разрядки питания, используемый для имитации устройств постоянной мощности или тестовой цепи
Charging method: charging standard: support никель-гидридные, никель-хром, литий, lithium iron, lead acid;
CHG-CV: Customized constant current and constant voltage charging, only suitable for rechargeable batteries
Automatic charge and discharge: supports automatic charge-discharge mode для тестирования емкости батареи;
напряжение тесты: 0.002-4.500 в (низкое напряжение), accuracy 0.003 в, ошибка ± 0.5%
Accuracy 4.50 V-30.00 V (высокое напряжение) - 0.01 V, error ± 0.5%
текущий тест :0.05-10.000 a, accuracy 0.005 a, error ± 0.5%
Capacity test: 10Ah with a resolution of 0.001 Ah
10Ah-100ah, разрешение 0.01 Ah
Выше 100 Ач, разрешение 0.1 Ач
Wiring mode: Four-Wire detection, separate wiring for voltage and current channels to ensure measurement accuracy
ЖК-дисплей: voltage, current, capacity, time, power, Energy test data
Online computer: выделенный USB в TTL последовательный порт (mini USB interface, custom USB cable) computer control, drawing curves, Calibration benchmark, Firmware upgrade, charge and discharge cycle.
Tip : a + V + connects к положительному полю, A_V_ connects к отрицательному полю

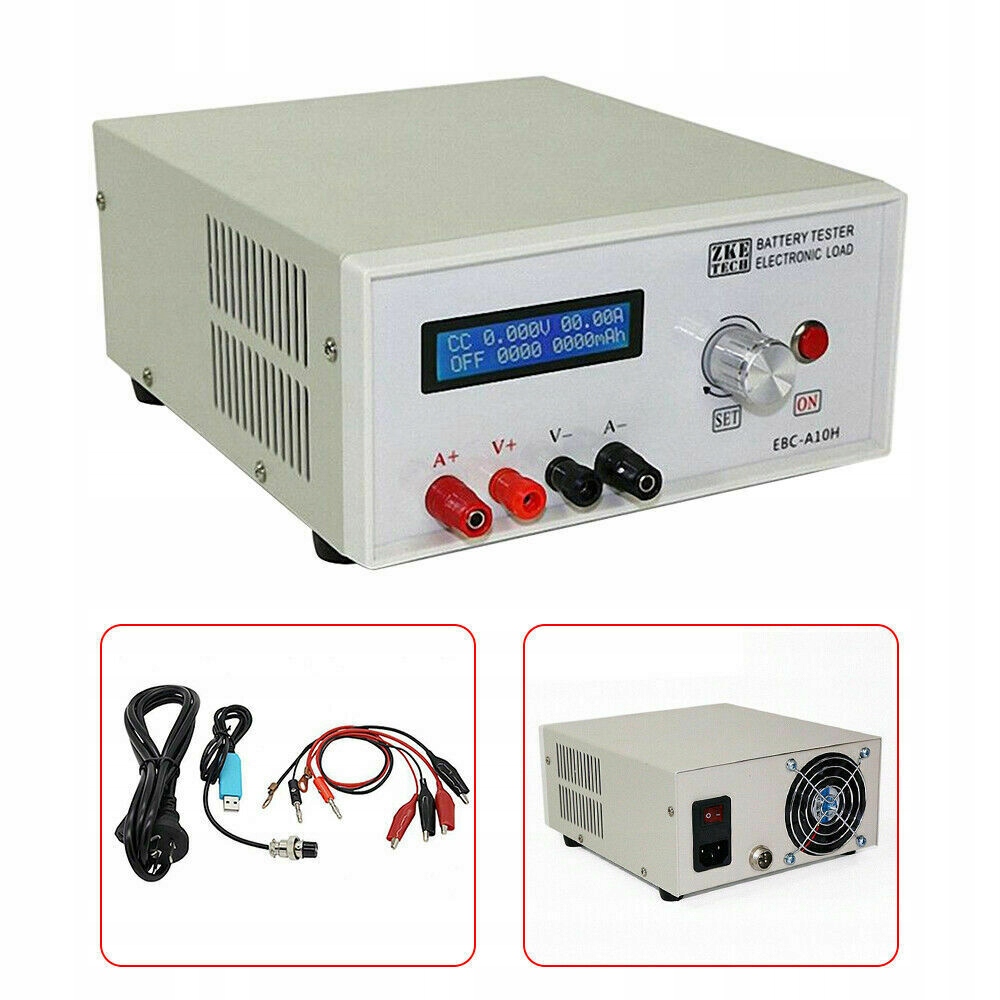

Package includes:
1X тестер
1X онлайн
2x1 pair of test clips
1X power cord
remarks:
Built-in 24V Power module.
