! BUT nozzle for Professional Plastic Welders-facilitates The Binder feeding process-it is recommended!
! The iron nozzle facilitates The modeling of the weld, smoothing The binder, fusing The reinforcing mesh!
in total, a set of 12 reduction nozzles
FAN-BLOW SOURCE

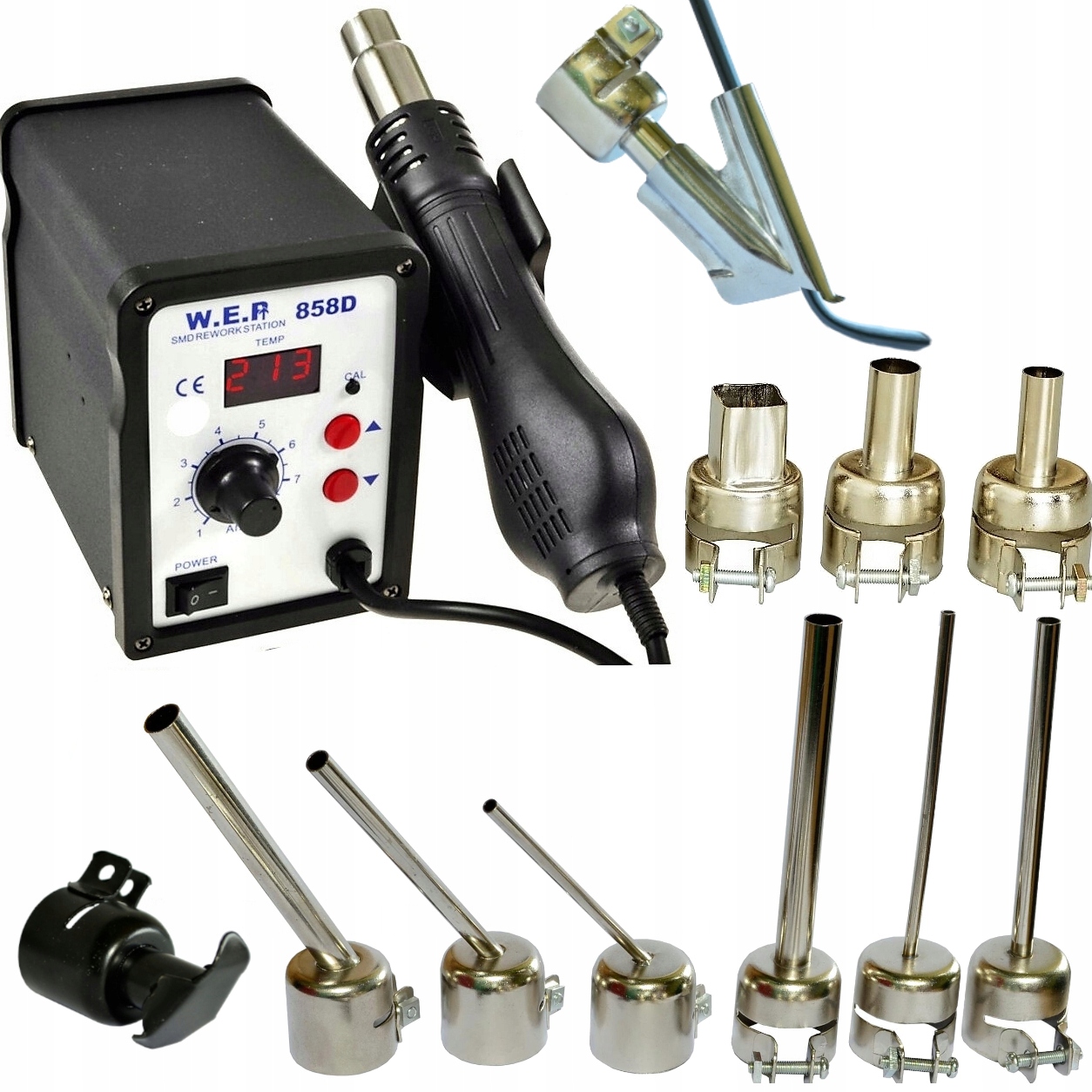

The BEST PLASTIC WELDER- WEP 858D-PRODUCT SHOWN IN the PICTURE - other MANUFACTURERS IMITATE US
NOZZLES x12 with reduction nozzle, BUT nozzle, Iron nozzle
SET146
SET CONTAINS:
WEP 858d welder
Support for the hotair stock
шнур питания
улей>
a set of nozzles
round with a diameter of 7 mm
round with a diameter of 9 mm
площадь 12x12 мм
round with a diameter of 3mm, total height 78mm
round with a diameter of 5, total height 78
round with a diameter of 8mm, total height 78mm
long round nozzle at an angle of 3mm / 85mm
long round nozzle at an angle of 5 мм / 85 мм
круглая насадка 8 мм / 85 мм long
+ Quick welding nozzle BUT
+ Reduction nozzle for the but nozzle
+ Nozzle Iron
* no binder included
Technical specifications:
фляжка горячего воздуха
светодиодный дисплей
потребляемая мощность: 700 Вт
Temperature control in the range of 100 ° C-500 ° C
Smooth regulation of air discharge, digitally controlled.Ли>
Air flow regulation up - 120 л / мин макс.Ли>
Strong heater made of thick wire (distinguished by greater strength and durability of the heating element)
Fast achievement of the desired temperature and high temperature stability
Blow type: brushless fan with soft start (high durability and надежность, quiet operation, low vibration)
есть микро-переключатель в держателе фляги с горячим воздухом, который, когда он кладет флягу обратно вниз, заставляет ее идти в режим ожидания, который расширяет жизнь нагревателя, выключает / сокращает поток воздуха, и thus saves electricity

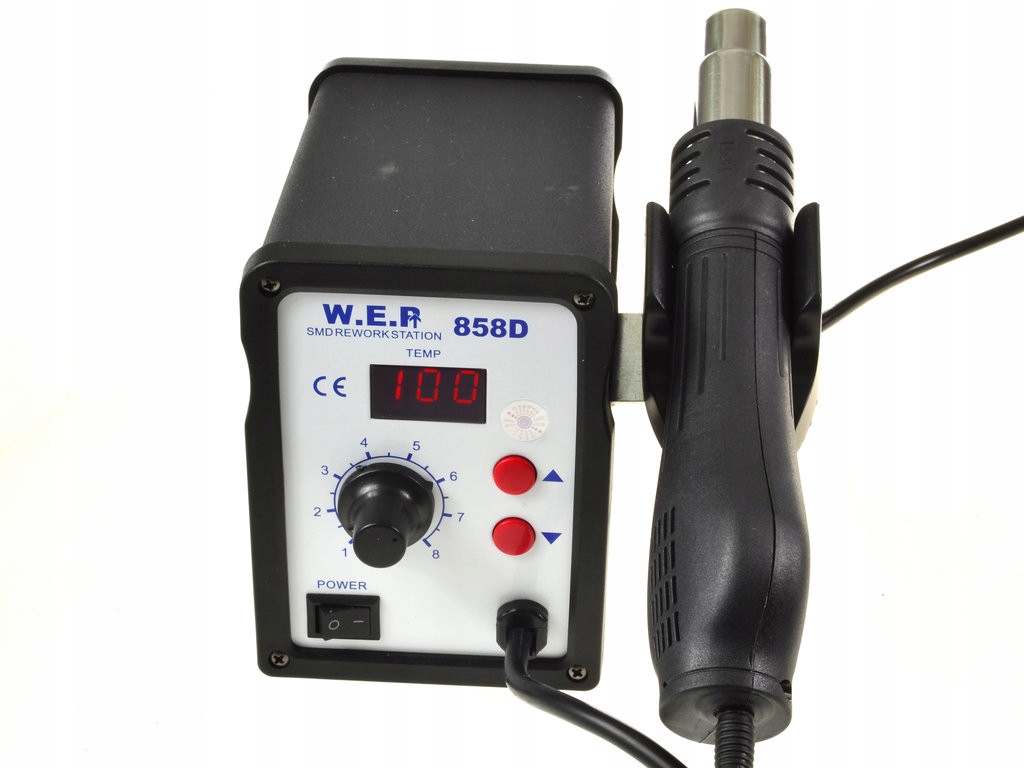

Photo of the flask on the right with nozzles
BUT nozzle in the photo on the right
the photos below show an example of how to set up and use the BUT nozzle-nozzle included!
The But nozzle is placed on the round nozzle with a diameter of 9 мм, which is included in the set
улей>
* no binder included
Welding with the but nozzle-an additional hole in the nozzle is provided for plastic insertion
Welding with the but nozzle-an additional hole in the nozzle is provided for plastic insertion
Set of 6 nozzles
round with a diameter of 3mm, total height 78mm
round with a diameter of 5, total height 78
round with a diameter of 8mm, total height 78mm
long round nozzle at an angle of 3mm / 85mm
long round nozzle at an angle of 5 мм / 85 мм
круглая насадка 8 мм / 85 мм long
The iron nozzle is pictured on the right
Used for
Оперение reinforcing mesh,
smoothing The weld,
улей>
This saves you time on the final processing of the weld.
Nozzle Iron dimensions
Fits welders with an outlet diameter of 22 мм
Working surface :triangle with sides 25x20x25 мм
our nozzle is on the right side of the photo
please pay attention to the air outlet gap for regulation with minimum Air supply! what the competition doesn't

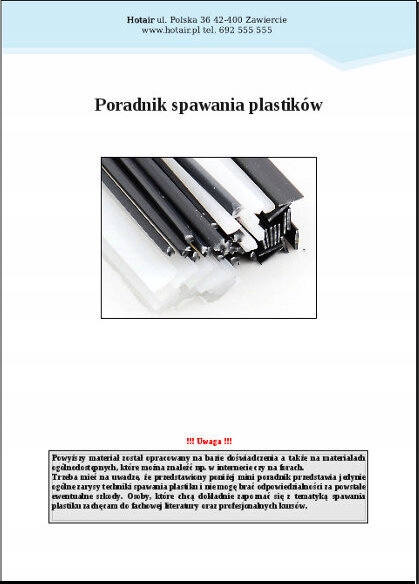

The welding machine comes with an electronic plastic welding guide. Это знакомит вас с проблемами сварки пластика в легком пути и делает его легче начать работу с устройством. После покупки, пожалуйста, свяжитесь с нами по электронной почте, чтобы отправить вам руководство. Thank you.
the photo shows the construction of the heating element
Heater with a thick wire, wound on the frame-thanks to this, it is not possible to accidentally short-circuit The wire by a gentle tap
