COMPLETE HYDRAULIC POWER SUPPLY 380V
the composition of the complete power supply (aggregate):
гидравлический насос 2.0 cc
2.2 kW 380V Electric motor
connecting plate with the overflow valve
two 230V solenoid valves
металлический бак 6 букв
улей>
Production:
Original Hydrolider brand product, символ: 1.12.16.422
Application:
Provides control of two sections, e. g. two double-acting cylinders.
it is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.
It is mainly used for lifting and lowering the load box in various types of trailers, dumpers, hydropack, presses, lifts, loading platforms, car lifts, cranes, agricultural and industrial machines.
Terms of use:
The unit is complete, ready to work, Just connect the hoses and fill with oil. Possible continuous operation, the design of the motor эффективно рассеивают тепло. У него есть ноги, которые привязаны к базе.
Technical data:
мощность двигателя: 2.2 kW
Electric voltage of the motor: 380V
Electric voltage of the solenoid valve: 230 В
емкость насоса: 2.0 cm3 / revolution, including 2.8 L / min
порты подключения: BSP 3/8 " inch Female thread.Ли>
Overflow (safety) valve: YES
максимальное рабочее давление: 200 бар
емкость масляного бака: 6 букв
улей>

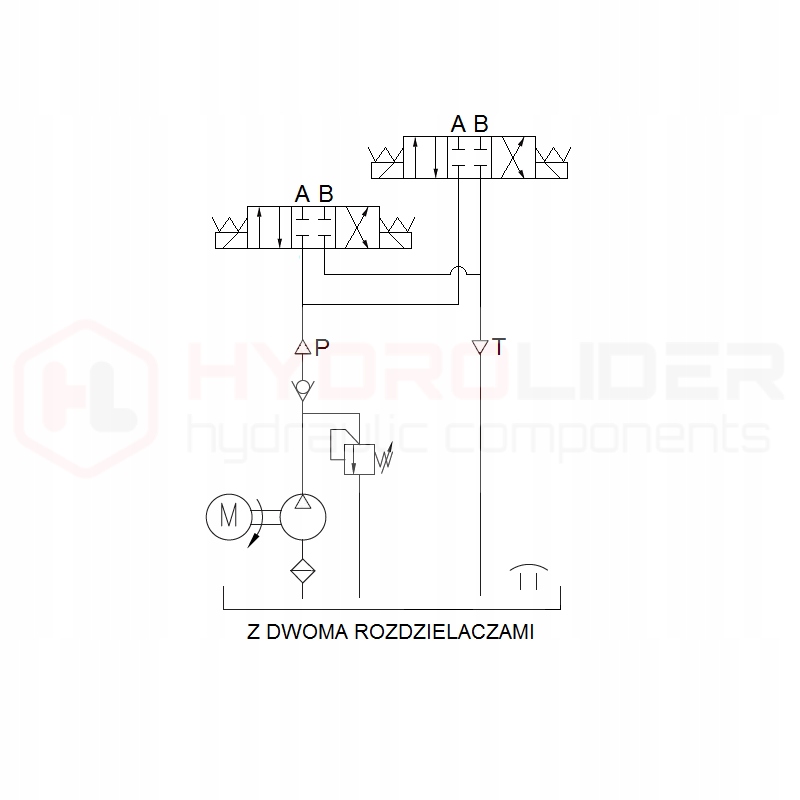

Hydraulic diagram of the offered power supply (photo):
Important!!!
Agricola sets are designed in such a way they can be easily assembled by yourself. Из-за безопасности товаров в транспорте и ограничений, вызванных правилами курьерских компаний, набор поставляется без винта.
