COMPLETE 24V HYDRAULIC POWER SUPPLY
the composition of the complete power supply (aggregate):
гидравлический насос 2.0 cc
2.2 kW 24V Electric motor
connecting plate with the overflow valve
соленоидный клапан для управления двойным действующим цилиндром
металлический бак 10 букв
улей>
Production:
Original product of the Hydrolider брэнд, символ: 1.12.10.124
Application:
Provides control of one section, E. g. double-acting actuator.
it is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.
It is mainly used for lifting and lowering the load box in various types of trailers, dumpers, hydropack, presses, lifts, loading platforms, car lifts, cranes, agricultural and industrial machines.
Terms of use:
The unit is complete, ready to work, Just connect the hoses and fill with oil. Recommended continuous work no longer than 3 minutes, restart after 5 minutes of rest.
Technical data:
мощность двигателя: 2.2 kW
Electric voltage: 24V
емкость насоса: 2.0 cm3 / revolution, including 5.6 L / min
подключение: BSP 3/8 " внутренняя нить.Ли>
Overflow (safety) valve: YES
максимальное рабочее давление: 195 бар
емкость бака масла
: 10L
улей>

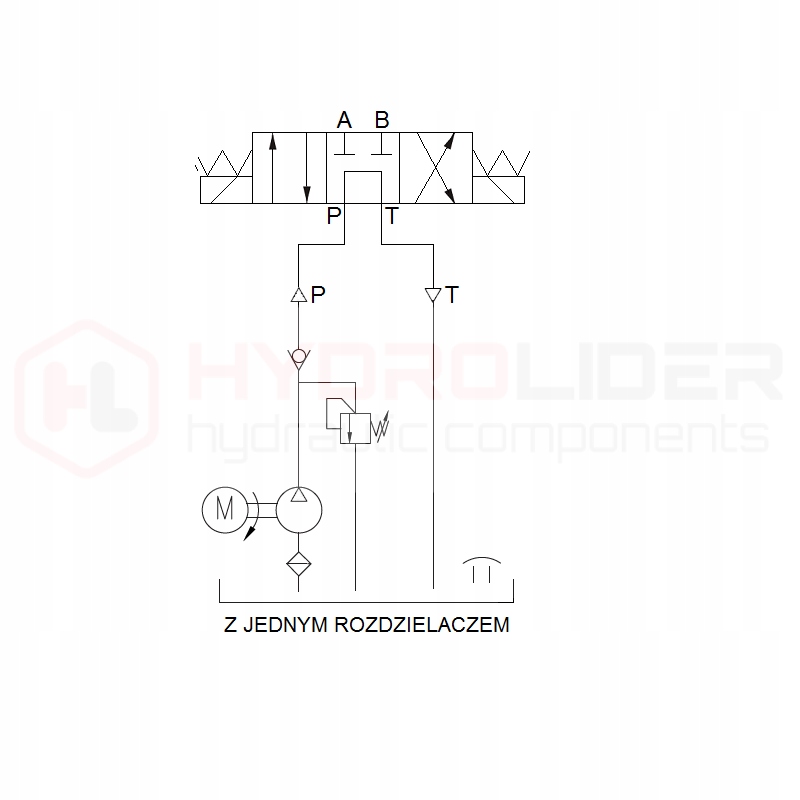

Hydraulic diagram of the offered power supply (photo):
Important!
Agricola sets are designed in such a way they can be easily assembled by yourself. Из-за безопасности товаров в транспорте и ограничений, вызванных правилами курьерских компаний, набор поставляется без винта.
