COMPLETE 12V HYDRAULIC POWER SUPPLY
the composition of the complete power supply (aggregate):
гидравлический насос 2.0 cc
1.6 kW 12V electric motor
connecting plate with the overflow valve
два соленоидных клапана для управления двойными активаторами
металлический бак 12 букв
улей>
Production:
Original product of the Hydrolider брэнд, символ: 1.12.00.210
Application:
Provides control of two sections, e. g. two double-acting cylinders.
it is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.
It is mainly used for lifting and lowering the load box in various types of trailers, dumpers, hydropack, presses, lifts, loading platforms, car lifts, cranes, agricultural and industrial machines.
Terms of use:
The unit is complete, ready to work, Just connect the hoses and fill with oil. Recommended continuous work no longer than 3 minutes, restart after 5 minutes of rest.
Technical data:
мощность двигателя: 1.6 kW
Electric voltage: 12V
Pump capacity: 2.0 см3 / revolution, in this set 5.2 Л / мин.
порты подключения: BSP 3/8 " inch Female thread.Ли>
Overflow (safety) valve: YES
максимальное рабочее давление: 140 бар
емкость бака масла
: 12L
улей>

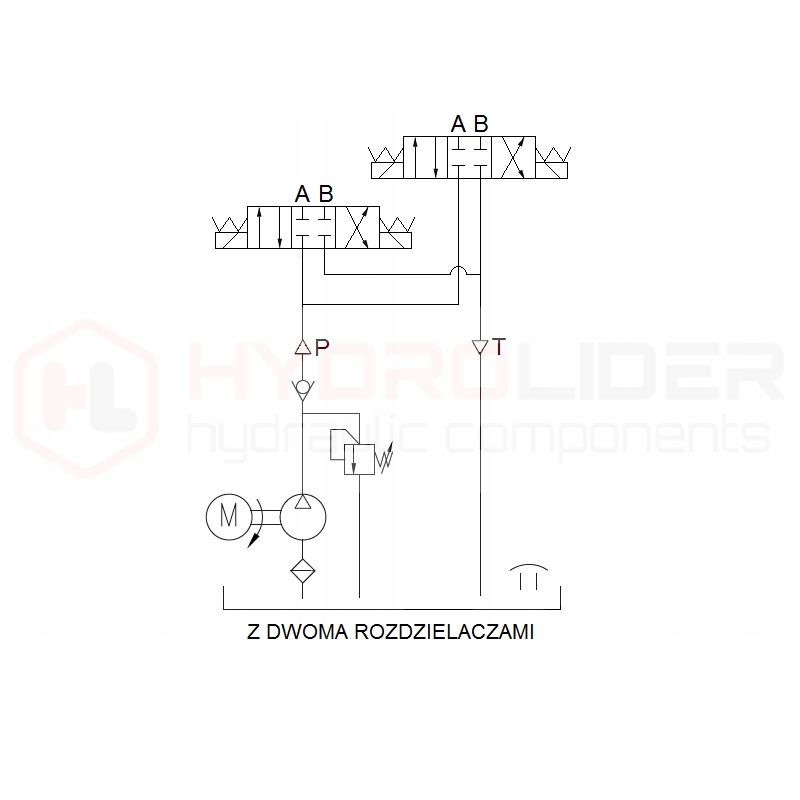

Hydraulic diagram of the offered power supply (photo):
Important!
Agricola sets are designed in such a way they can be easily assembled by yourself. Из-за безопасности товаров в транспорте и ограничений, вызванных правилами курьерских компаний, набор поставляется без винта.
