1.06.02.080 - ORBITROL OSPC 80 LS 150-1230 СИЛЬНАЯ МАРКА

В наявності
Код товару:
8860245603
11383,00 грн
Додати до списку бажань Додати до порівняння
main product photo
+38 (095) 900-37-17
+38 (067) 900-37-17
Основні параметри
Докладніше
Стан Новий
Номер за каталогом 1.06.02.080
Опис
ORBITROL OSPC 80 LS 150 1230 WZMOCNIONY MARKOWY Machine brand Bizon Case IH Claas Deutz Fahr Fendt Ford JCB John Deere Lamborghini Landini Massey Ferguson MTZ Belarus New Holland Renault Same Ursus Zetor other
ORBITROL OSPC 80 LS

Production:

Original product of the Hydrolider брэнд, символ: 1.06.02.080

third-party comparative numbers:

OSPC-80-LS; OSPC80LS; 150-1230

Application:

It is widely used in steering systems in industrial machinery and vehicles used in transport, agriculture, horticulture, forestry, construction and industry.

The OSPC 80 LS orbitrol is intended for the hydraulic control of the steering system in agricultural tractors, forklifts, excavators, combines and construction machines, where the pump is equipped with an LS сенсор.

дорогой клиент, READ this BEFORE you BUY ORBITROL:

Orbitrol is a very precise and important device for traffic safety, unfortunately there are many cheap goods from China on the market, which at first glance looks the same, but the неточно workmanship makes it impossible to drive and work with the tractor properly. Мы не рекомендуем покупать новые орбитальные аппараты, из ненадежных источников, из продавцов, которые не могут продать этот тип оборудования.

Technical data:

Orbitrol 80 with the LS (LOAD SENSING) система while the steering wheel is stationary, the oil flow through the orbitrol is closed, the orbitrol then maintains the pressure in the system. Система LS сигнализирует насосу о том, что рулевое колесо двигается.

  • Connections: P, T, A, B internal threads [BSP]: 1/2 "
  • Connection LS: Female thread [BSP] 1/4 "
  • фиксация рулевой колонки: 4X M10 screw - 16mm
  • установка клапана: overflow 160bar, shock 240bar
  • геометрический объем: 80cm3 / rev.Ли>
  • Recommended Oil flow in the system: 6-10л / мин.Ли>
  • материал: литое железо
    • улей>

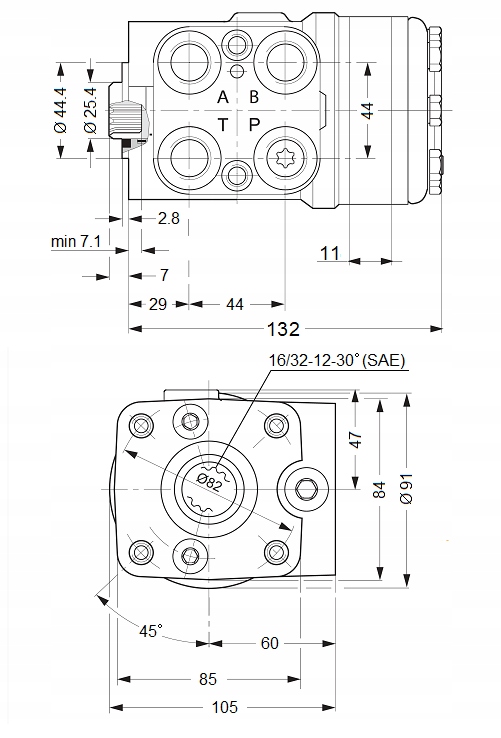

    full size drawing (рис. ):

    ORBITROL OSPC 80 LS 150 1230 WZMOCNIONY MARKOWY Weight with packaging 7 kg
    ORBITROL OSPC 80 LS 150 1230 WZMOCNIONY MARKOWY Part number 1 06 02 080

    Advantages of Hydrolider production orbitrols:

  • A special reinforced and more precisely made structure обеспечивает perfect operation without leaks, without jerking the steering wheel and, most importantly, very light and smooth steering even in heavily loaded vehicles.Ли>
  • each orbitrol is sent together with the instructions for connecting the hydraulic lines, we also provide full technical support in selecting the appropriate orbitrol and during assembly.Ли>
  • Produced in Europe, comes from a reliable source, has a two-year warranty, proven goods from a reliable manufacturer.Ли>
  • Even when the tractor or pump fails, this function is very useful in emergency situations, e.g. when towing.Ли> улей>

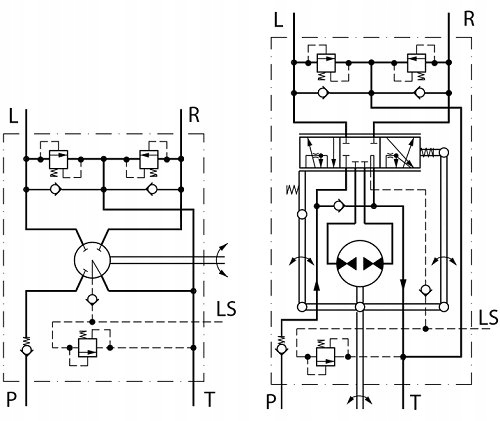

    Hydraulic diagram of the OSPC LS orbitrol (рис. ):
