PROFESSIONAL MAGNUM BY 10 WELDING ROTOR-PROFESSIONAL DEVICE
Type: ротатор, welding positioner // Модель: -10 // Power supply: 230 // Maximum load: 10 // Table diameter: 180 мм

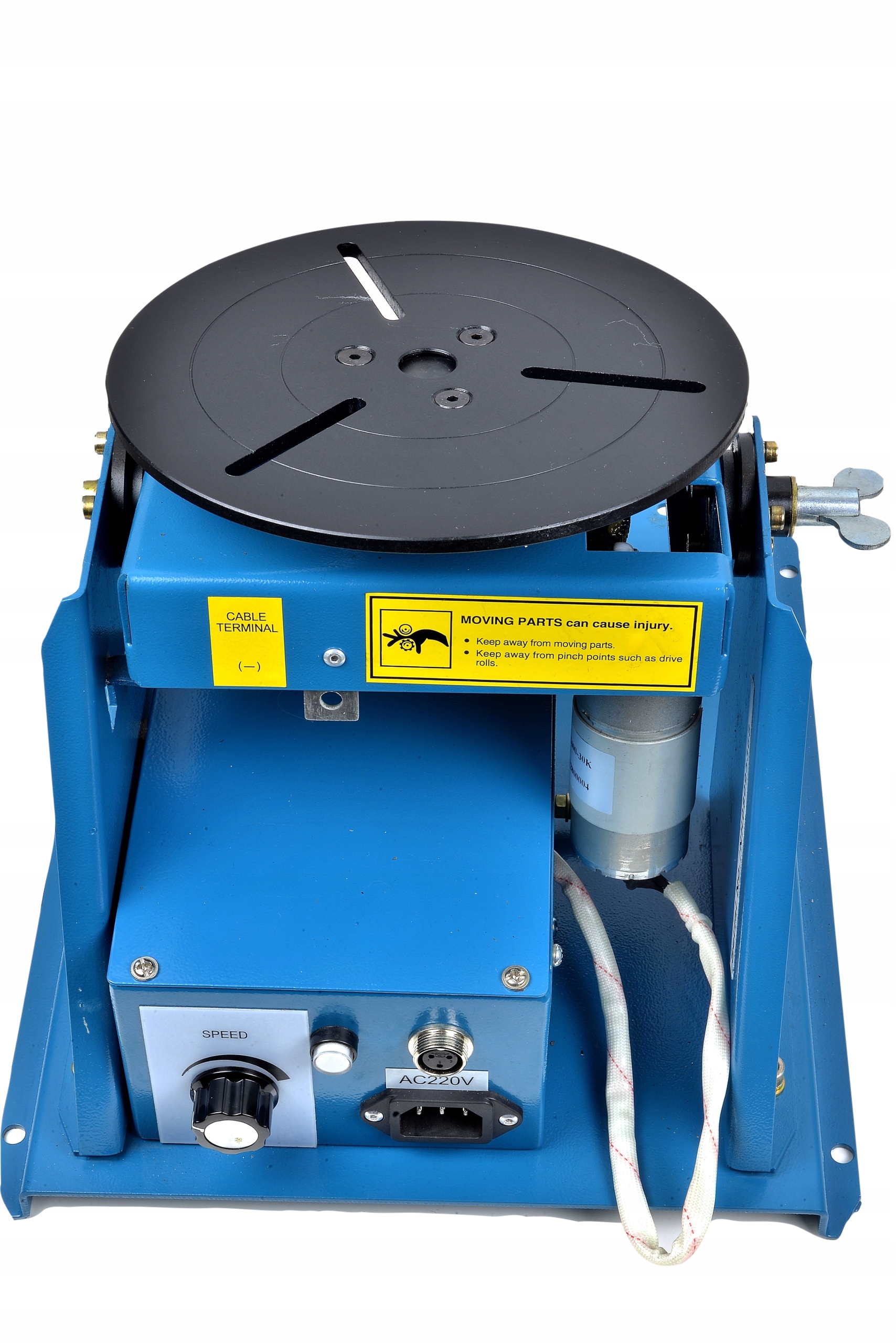

MAGNUM BY-10 ROTATOR
Rotators and positioners are devices supporting welding works which enable to obtain the optimal and precise position of the welded элемент.
The rotating and tilting rotator disc (in the range from 0 to 90 degrees) allows for the optimal setting of the welded element in the appropriate position, while the rotary movement facilitates the positioning of long welds, which is particularly helpful when welding tanks or pipes.
это характерно для versatility, allowing The welding process be carried out in an optimal position and thus contributing to the improvement of the quality of welded items. The applied Design solutions ensure safe operation and trouble-free operation.
для профессионального и любительского использования.
THE USE OF TURNERS IS:
High higher work efficiency
улей>
Red reduction of production costs
улей>
☑ repeatability of made joints
улей>
☑ flexibility in use
улей>
IMP improves the welder's working conditions
ADVANTAGES of the DEVICE:
solid solid build quality
улей>
☑ smooth change of rotational speed
улей>
☑ activation / deactivation
улей>
☑ change the direction of rotation right / left
улей>
☑ the table has mounting grooves for connecting / mounting handles and jaws
улей>
☑ a trusted manufacturer of the leading brand MAGNUM

BY-10 CONSTRUCTION / BUBBLE WIPER
☑ rotation direction switch
улей>
Dire Direction of rotation switch
улей>
SM smooth adjustment of the speed of the turntable rotation
улей>
☑ compact, compact design
улей>
control control pedal
улей>
Th thermal fuse
улей>
☑ stable Speed control
улей>
☑ brush motor
улей>

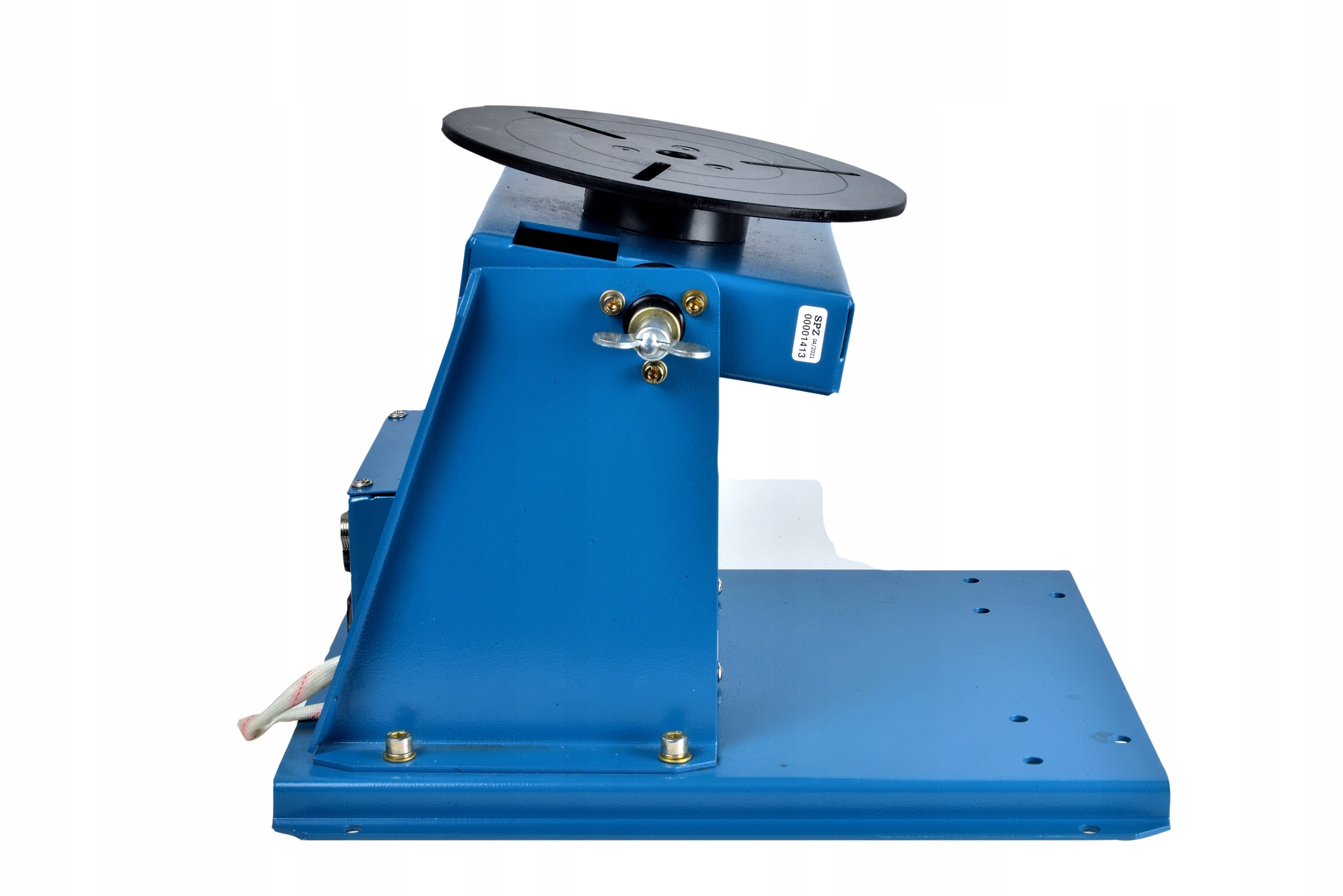

☑ range of Disc tilt 0-90 °
улей>
☑ possibility of mounting the centering holder

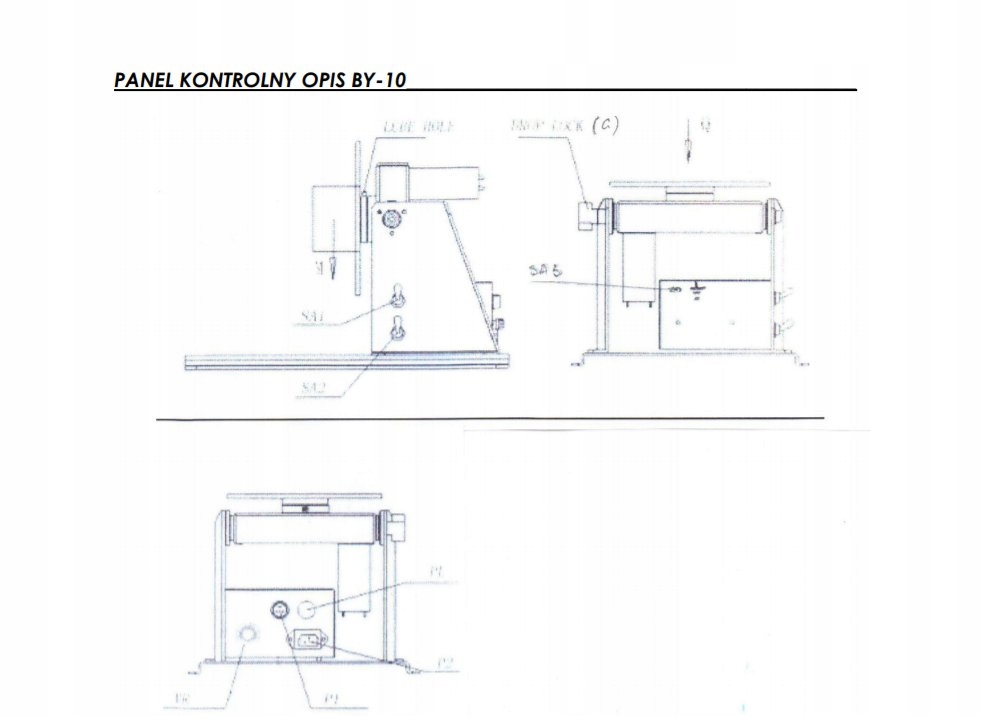

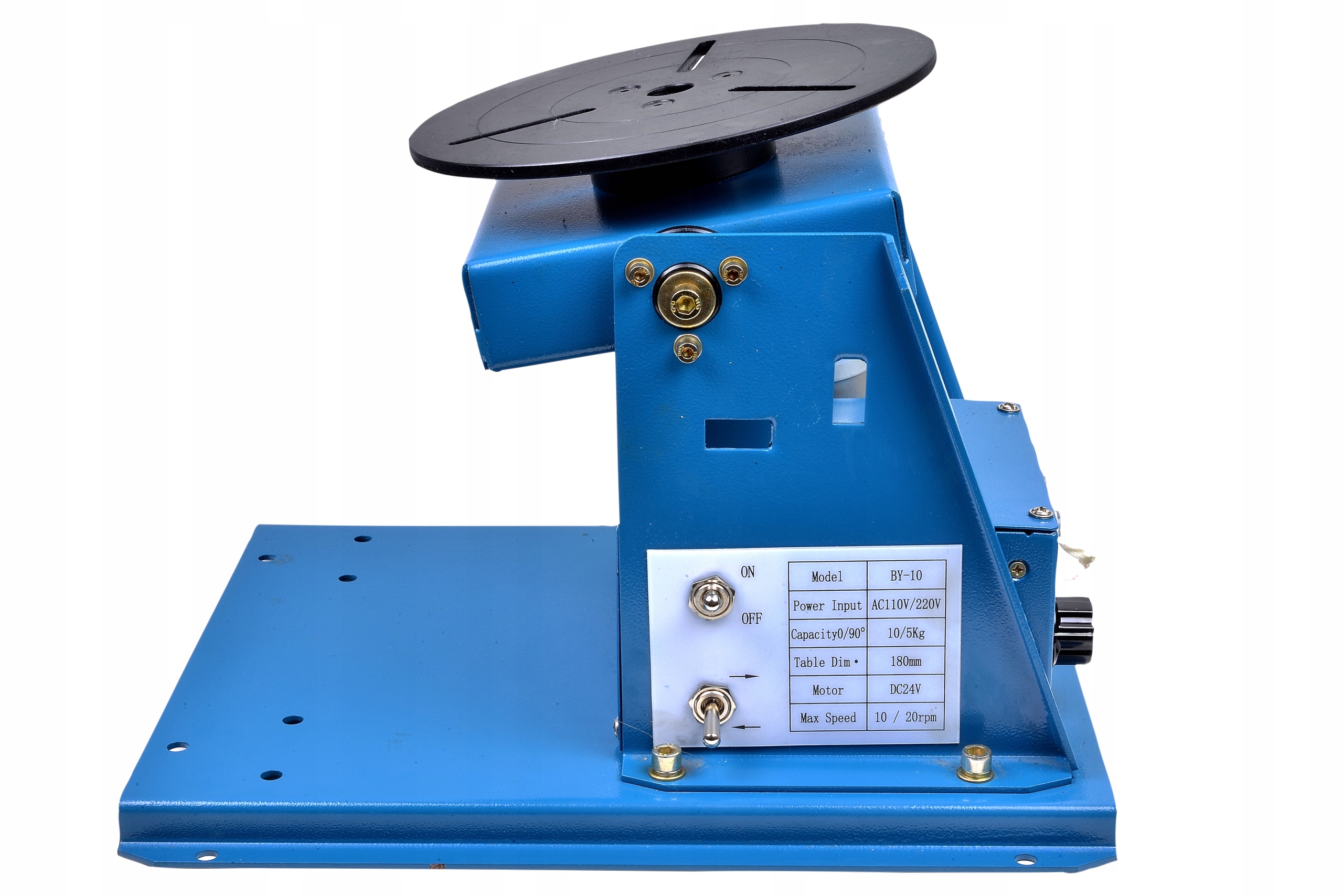

задняя панель:
SA1: On / Off switch
SA2: forward / reverse rotation switch
SA3: ground
Drop Lock: table Tilt lock
улей>
боковая панель:
P1: ON сигнальная лампа
P2: power socket
RU: control Pedal jack
VR: контроль скорости
TECHNICAL SPECIFICATION:
☑ supply voltage / 230 В / 50 гц
улей>
☑ table load in horizontal position кг 10
улей>
☑ table load in vertical position кг 5
улей>
☑ table diameter (D) мм 180
улей>
diam diameter of workpieces мм 215
улей>
☑ maximum table tilt / 0-90º
улей>
☑ RPM range2 - 16
улей>
☑ motor power в 24V / 10W
улей>
tot общая длина (A) мм 320
улей>
tot общая ширина (b) мм 260
улей>
☑ total height (C) мм 225
улей>
☑ table Tilt adjustment
улей>
☑ table inclination (Г) мм 0 - 90º
улей>
☑ вес кг 10
улей>
☑ smooth Speed regulation
улей>
☑ welding currenta 200


YOUR SET INCLUDES:
сварочный ротатор BY-10 MAGNUM
улей>
control pedal (included) enables remote control (start - stop)
улей>
шнур питания
улей>
instruction manual in Polish with a certificate
улей>
original packaging
GAIN ON the PURCHASE of RELIABLE EQUIPMENT by the LEADING MAGNUM BRAND!
High quality, efficiency and надежность, as well as an attractive price made the original MAGNUM products one of the most recognizable welding devices on the domestic market.
a proven Polish brand. Buy from an authorized Magnum distributor.
WE ENJOY YOUR SHOPPING !
