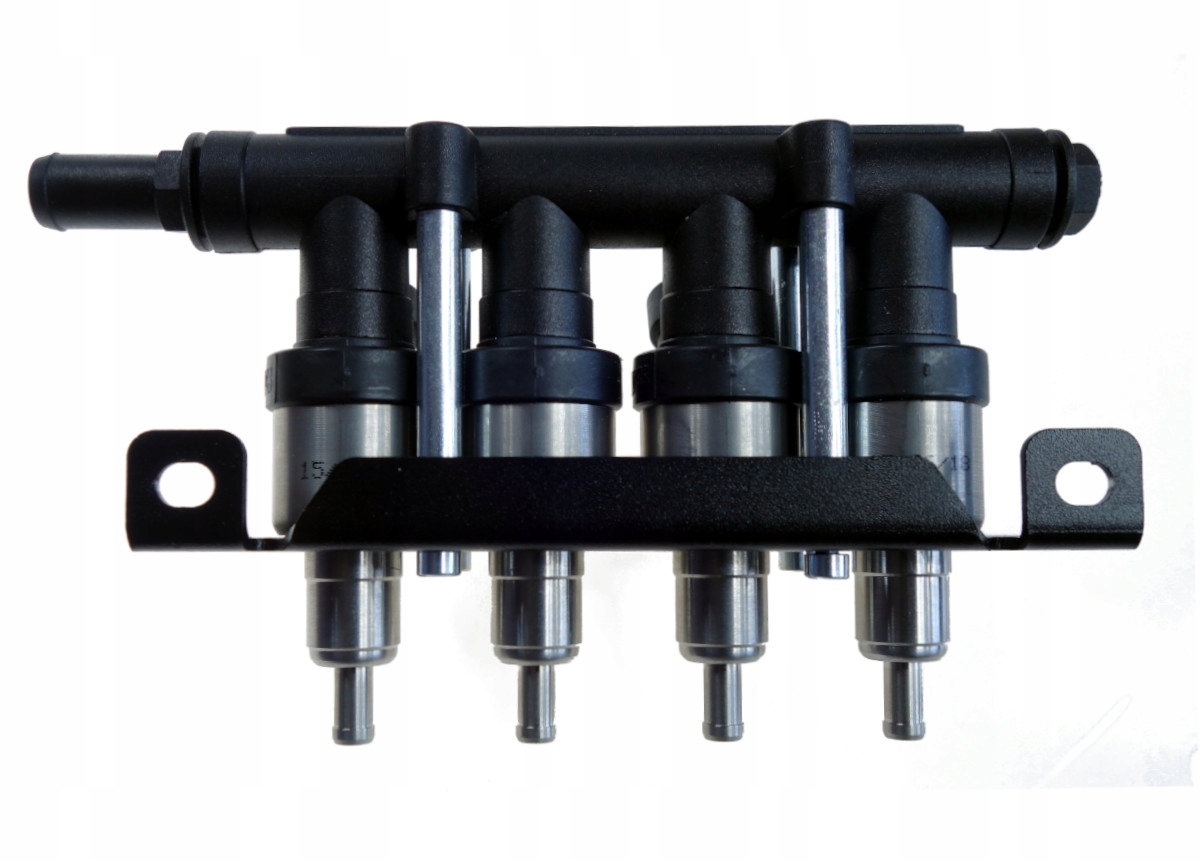

ACLHR4.1333 - AG HERCULES gism-I3110 4-цилиндровый инжекционный рельс

Gas injector rail

in the latest Hercules injectors, the selection for a specific engine (power / цилиндр) is carried out through an appropriate calibration nozzle.

The offered Hercules injector without a nozzle corresponds to a performance of 35-50 км / цил.

Hercules is an injector with a modern design, ensuring a quick response to an electrical signal, precise gas dosing, linear operation characteristics, very high efficiency and self-cleaning of примеси.

Perfectly compatible with gas injection systems such as KME Nevo, KME Diego, AC Stag, Agis, Zenit, LPGtech

SPECIFICATION from the manufacturer's website:

- LPG or CNG fuel

- сопротивление катушки: 1.7 Ohm

- минимальное время открытия: 2 мс

- время закрытия: 0.8 ms

- maximum expenditure: 150 л / мин

- permissible Operating pressure: 0.2-4.2 bar

- максимальное рабочее давление: 4.5 bar

- напряжение питания: DC 6V - 18v

- рабочая температура: от -40 до +120 градусов C

- AMP 282104-1 connector (Valtek type)

- current control: Peak & Hold

- housing: stainless steel

- approvals: 67R-01 and 110R-00

- expenditure regulated by screwed nozzles (not applicable to Bf version)

- built-in filter at the gas inlet (for Rail mounted injectors)

- с тефлоновым покрытием piston and a unique design of the piston chamber ensuring high durability, excellent reliability, resistance to dirt and difficult working conditions

- available individually and in 2, 3 and 4 Strips цилиндра

- Twister filter use recommended

The kit includes:

Hercules injection rail 4 цил. - 1 piece

inlet connection - 1 шт

конец кепки-1 шт.

The nozzles are available in 3 types, depending on the engine power, available in our offer (at our other auctions) :

nozzle 2,4 мм / / 24-36 км / цил.

nozzle 2,1 мм / / 17-27 км / цил.

1.9 мм // сопло до 20 км / цил.

Product codes: 12311
