COMPLETE SEQUENTIAL GAS INJECTION
LPG TECH 224 4 цил.
(without reducer and injection rail)
Reducers and injector rails available at other auctions, you can configure the entire installation for your car according to your needs.
The 200 series are modern microprocessor controllers with a 48-pin harness, designed for engines with a maximum of 4 cylinders. Они сочетают передовые технологии с эргономикой. The processor controlling the auto-calibration, auto-adaptation and the system of continuous monitoring and corrections is closed in a small casing made of tecamid with dimensions of 114 x 140 x 36 мм. Этот материал имеет те же свойства, что и традиционное алюминиевое жилье. Как результат, компьютер маленький, легкий и может быть легко установлен в любой машине.
The advanced version of TECH-224 is a much better controller processor, allowing for even more efficient control over the entire installation and support for additional software functions, such as controller temperature measurement, handling of frozen frames and a faster oscilloscope. In addition, Injection times are even more accurate than in the standard version.
An additional advantage of the TECH-224 controller is the enrichment of the software with a second slider that allows you to change the composition of the mixture at idle speed without the need to re-auto-calibrate and non-volatile memory error, allowing the controller to permanently save information about the exact circumstances of a given error.
Functions of LPG-TECH controllers
Standard control algorithm - commonly used Gas injection algorithm with a multi-point multiplier of gas injection time
Tech control algorithm-an advanced Gas control algorithm, который устраняет необходимость в сопоставлении множителей карт и корректирует контроль газа на самые высокие требования современных автомобилей
Support for loops of petrol and gas injectors
Compatibility with VALVETRONIC and Wankel engines
Possibility of communication via the mobile lpgtech gasdroid control application
Direct cooperation of the LPGTECH GAS SETTING configuration program with a Wireless communication interface-BLUETECH
Three-dimensional gas and petrol maps
Automatic detection of the type of gasoline injection
Adaptation-automatic selection of a multiplier based on Injection time maps
- Automatic System calibration
- автоматический переключатель для газа
- автоматическое переключение на нефть после того, как газ выдохся
- Automatic calibration of the gas Level indicator
- возможность корректировки температуры газа
- возможность сделать коррекцию после поворота
- Possibility of introducing corrections according to the temperature reducer
- Possibility of introducing correction after gas pressure
- возможность корректировать поток и время открытия газового инжектора
- Possibility to permanently disable individual Gas injectors (useful in case of failure of one of the injectors)
- Visualization of ECU injection times for petrol and gas
- Cooperation with naturally aspirated and turbocharged engines
- Cooperation with various types of petrol Injection control (Sequence, Sequence, Fullгруппа)
- Gas injectors heating
- "Quick start" function
- "rotation filter" function
- Full short circuit and overload protection
- осциллограф для наблюдения за операторскими параметрами установки
- Possibility of emergency engine start on gas
- Cooperation with many types of gas injectors
улей>
the kit includes:

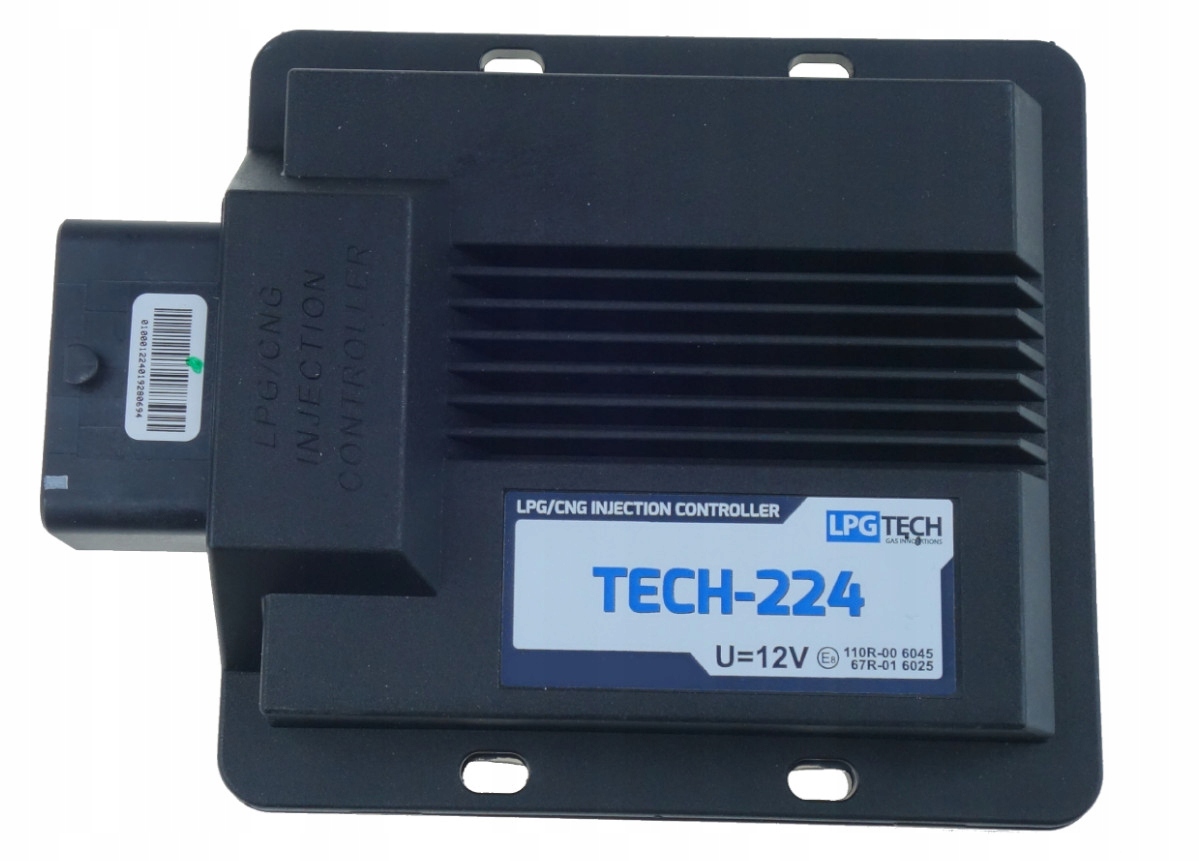

- TECH 224 4 cyl computer

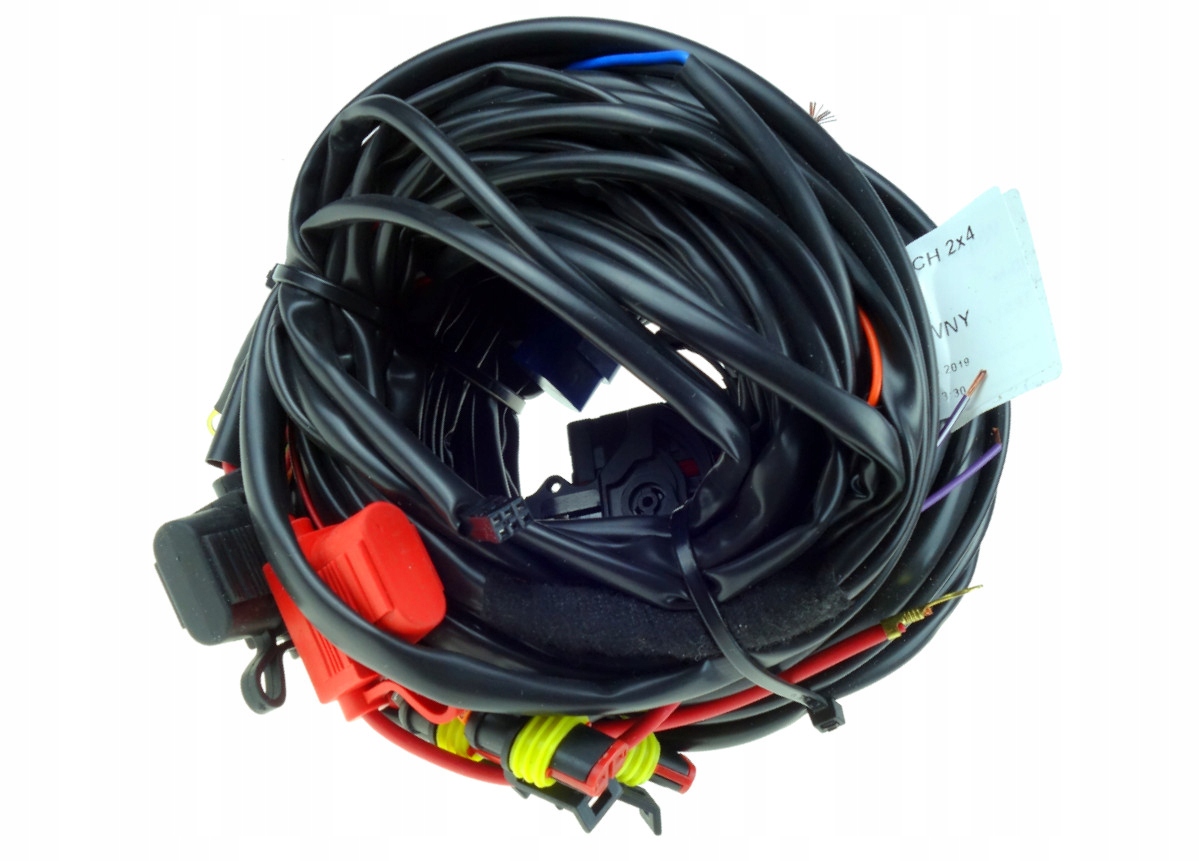

- electric bundle
- датчик уровня газа

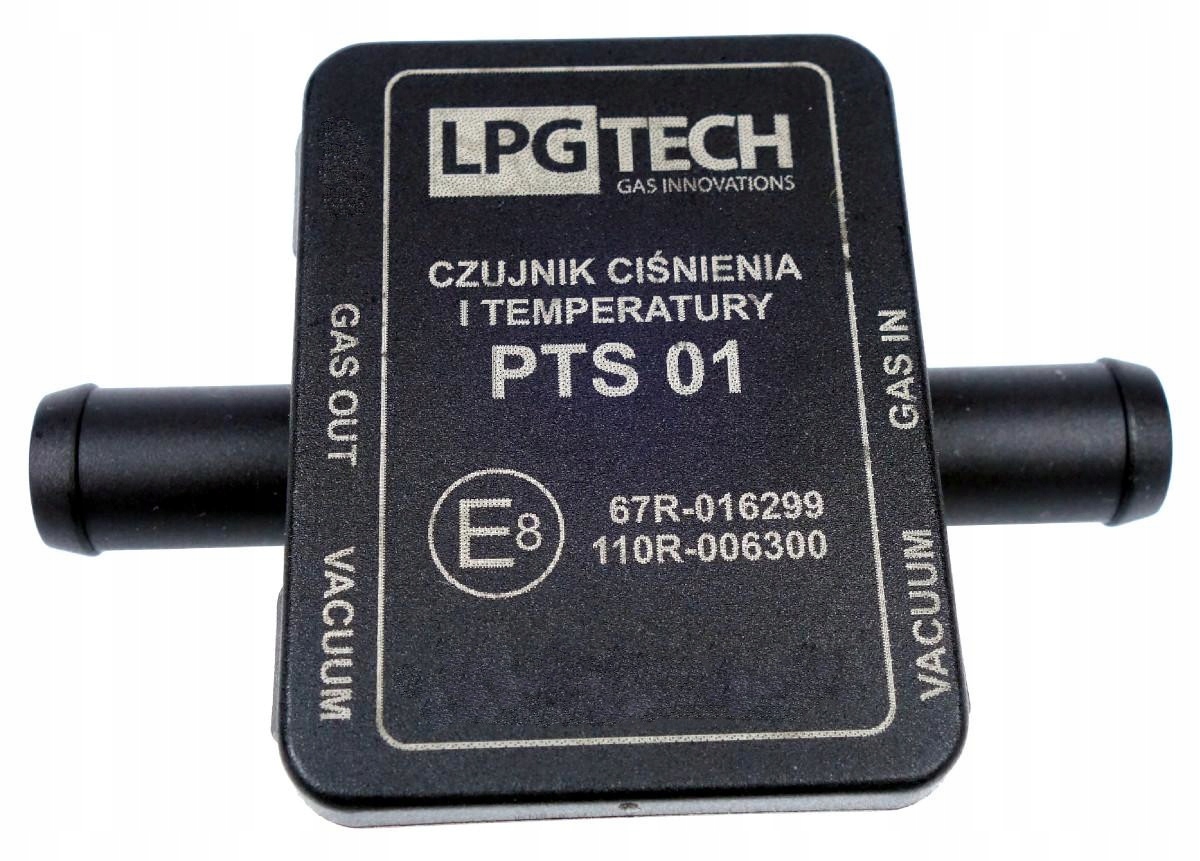

- датчик давления газа (Map-sensor)

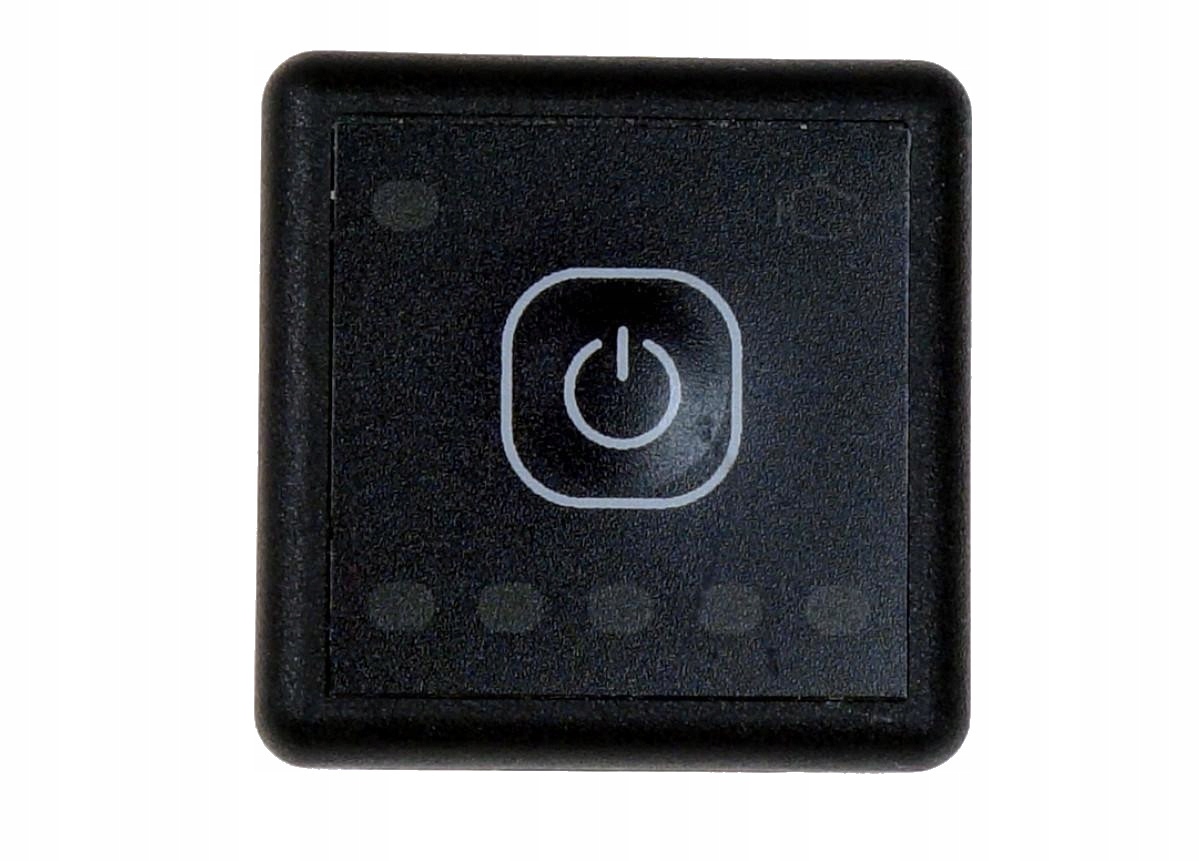

- switchboard
- assembly bag
это возможно установить установку в нашей компании !!!
Item number: 0305
