ORBITROL OSPC 100 ON DANFOSS
Production:
Produced by the world leader in orbitrol manufacturers, Danfoss in their own factory in India.
manufacturer's symbols: 150n2151; VSP 100 ON2H; 1.06.00.100.2
third-party comparative numbers:
OSPC-100-ОН; OSPC100ON; 5050871380; 7019756M91
Application:
It is widely used in steering systems in industrial machinery and vehicles used in transport, agriculture, horticulture, forestry, construction and industry.
The OSPC 100 ON orbitrol is intended for the hydraulic control of the steering system in agricultural tractors, forklifts, excavators, combine harvesters and construction machines и т. д.
Application in tractors:
URSUS: C-330, C-360, C-360-3P, 3512, 3502
МТЗ: 80, 82, Т-25
ноль: 5211,7211; 7045, 7245
CASE IH AVJ: 55, 60, 70, JX 55, 60, 65, 70, 75, 80, 85, 90, 95, VJ 60, 70, 80
FIAT: 55-46, 60-46, 65-46, 55-56, 60-56, 65-56, 70-56, 55-66, 60-66, 65-66, 70-66 80-66, 55 -88, 60-88, 65-88, 70-88, 80-88, 55-90, 60-90, 65-90, 70-90, 80-90, 90-90, 100-90, 110-90, 60-93, 65-93, 60-94, 65-94, F 100, 110, 130
MASSEY FERGUSON: 230, 240, 253, 255, 261, 263, 340, 342, 350, 352, 355, 360, 362, 365, 372, 375, 382, 390,396, 398, 399, 265, 275, 3275E, 285, 290, 290E, 298, 375E, 390E, 675, 690, 698, 698T, 699,
NEW HOLLAND TD: 5040, 5050, 55D, 60D, 65D, 70D, 75D, 80D, 85D, 90D, 95D
RENAULT: 58-32ME, 58-32MA, 58-32MS, 58-32MX, 75-32TX, 75-34TX, 85-32TX, 85-34TX, 90-32TX, 90-34TX, 650MI, 750MI, 754MI, 850MI, 854MI, 900MI, 904MI, 950MI, 954MI, 1032-54TS, 103-54TX, 103-54TE, 103-54TA, 106-54TS, 106-54TX, 106-54TE, 106-54TA
Renault CERES: 65, 70, 70X, 75, 75x, 85, 85x, 95, 95X, 310, 320, 320X, 330, 330X, 340, 340X, 325X, 335X, 345X, 355x
RENAULT CERGOS: 330, 340, 350, 345, 355,
CLAAS CELTIS: 426RA, 426RC, 426RX, 436RC, 436RX, 446RA, 446RC, 446RX, 456RA, 456RC, 456RX
DEAR CUSTOMER, PLEASE READ THIS BEFORE YOU BUY ORBITROL:
Orbitrol is a very precise and important device for traffic safety, unfortunately there are many cheap goods from China on the market, which at first glance looks the same, but the неточно workmanship makes it impossible to drive and work with the tractor properly. Мы не рекомендуем покупать новые орбитальные аппараты, из ненадежных источников, из продавцов, которые не могут продать этот тип оборудования.
Technical data of the orbitrol:
Orbitrol 100 with the система (OPEN NORMALLY), while the steering wheel is stationary, the oil постоянно circulates in the system and freely passes through the orbitrol, the return line to the водохранилища, then the pump works but is unloaded.
<улей>
Connections: P, T, A, B internal threads [BSP]: 1/2 "
фиксация рулевой колонки: 4X M10 screw - 16mm
valves setting: overflow 160bar, shock 240bar
геометрический объем: 100cm3 / rev.
Recommended Oil flow in the system: от 8 до 12л / мин.
материал: литое железо

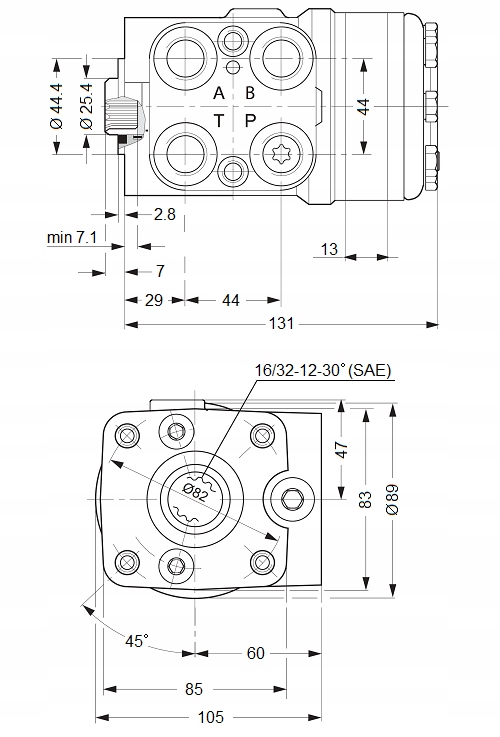

full size drawing (рис. ):
