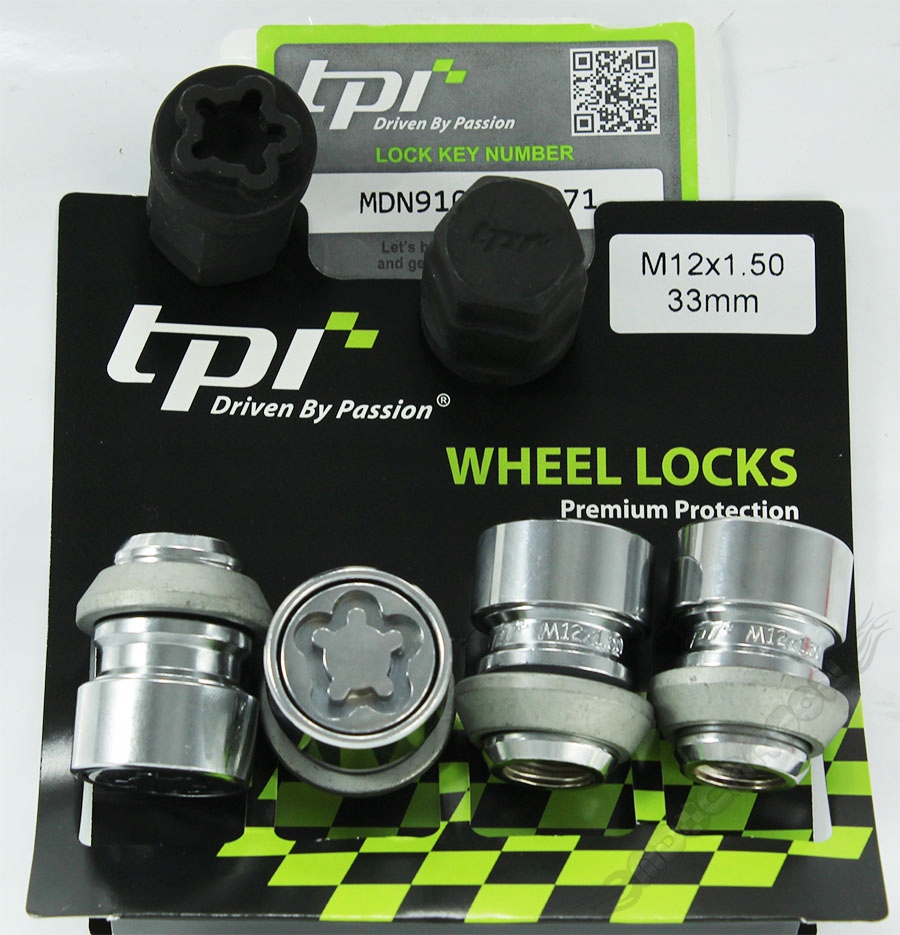

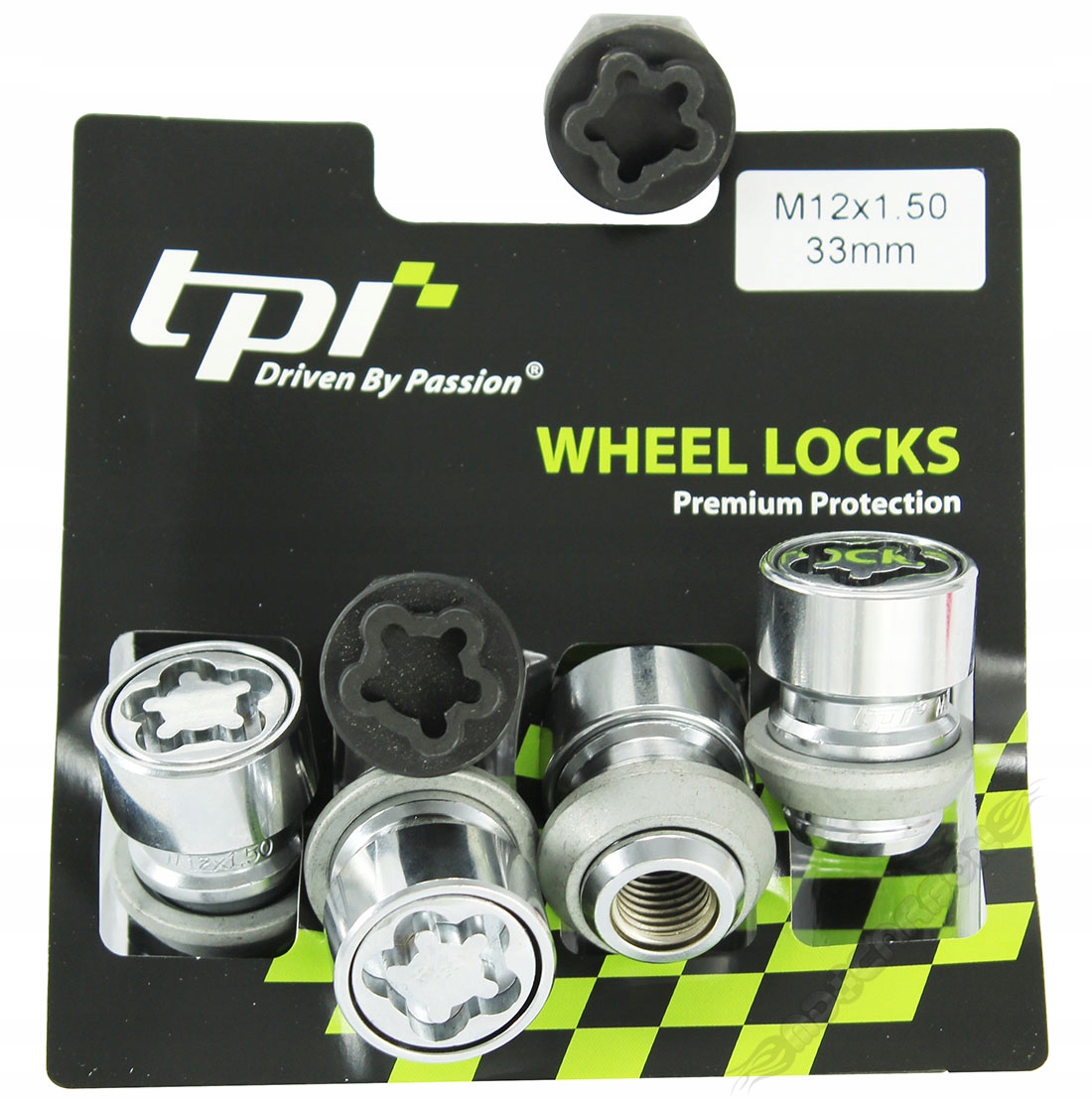

TPI locking NUTS 12x1. 5 C-Max Kuga ALU

ROTARY LOCK NUTS-SPINNING (сет. 4 nuts + 2 caps)

Dimensions:12x1.5x33 cone (Flange original Ford alloy wheels)

Key:19/21 CLOSED

покрытие: тройной хром никель

Производитель: TPI

Catalog number: SN0242

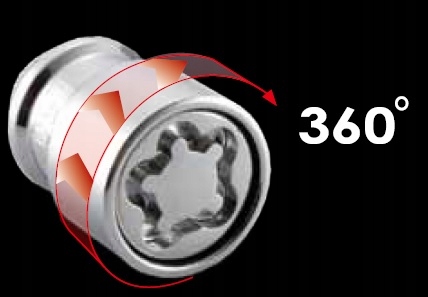

A ROTATING FLANGE ( СПИННИНГ - 360 degrees ) IS AN ADDITIONAL IMPACT WHEN РАЗБЛОКИРОВАНИЕ THE SAFETY DEVICES . ГАЙКА РАЗБЛОКИРОВАНА ТОЛЬКО С ПОМОЩЬЮ УНИКАЛЬНОГО ГНЕЗДА С ВНУТРЕННЕЙ СТОРОНЫ ЗАМКА. ПРИКРЕПЛЕНИЕ К НОТЕ С ВНЕШНЕЙ СТОРОНЫ, ЗАКАНЧИВАЕТСЯ ВРАЩЕНИЕМ ФЛАНГОВ.

Meeting customers' requirements and preventing their safety concerns, TPI produces several anti-theft wheel systems that secure the wheels while защищает то them from theft . All wheel locks require a special wrench for assembly and disassembly. TPI locks are available in various designs, forged in nuts and wrenches.

The narrow groove prevents the intrusion of security removal tools .

the thread size is stamped on each nut for easy and quick identification for customers

a PRODUCT of HIGHER QUALITY STEEL .

EACH SECURITY NUT is HEAT TREATEDTHAT ACHIEVES The HARDNESS NECESSARY to OBTAIN AN UNMATCHED LEVEL of SAFETY.

COLD FORGED.

THE SURFACE PROTECTED AGAINST CORROSION WITH A 3-LAYER NICKEL AND CHROME COATING CROSSED 96-HOUR SALT TEST (according to DIN 50021).

INCREASED STRENGTH AND SERVICE LIFE:

QUALITY CONTROL ACCORDING TO THE RIGOROUS STANDARD ISO / TS 16949: 2002 (QUALITY SYSTEM CERTIFICATE FOR THE AUTOMOTIVE INDUSTRY DEVELOPED BY M. IN. BY BMW Group, DaimlerChrysler, GM, AND OTHER MANUFACTURERS).

TUV CERTIFICATE ID9105068981. IATF 16949 система сертифицирована.

THE SET INCLUDES 2 ADAPTERS / SOCKETS FOR UNLESSING THE NUTS AND YOUR OWN UNIQUE CODE OF THE SET (INTEGRAL PART OF THE SET) .

the KEY IN the OFFERED SETHAS a SMALLER DIAMETER THAN STANDARD SETS (23.2 MM), что делает его легким для жесткой безопасности в случае узких слотов.

PATTERN of Nut SECURITY , MADE IN DIFFERENT FORMS, WHICH DIFFERENCES the PRODUCT FROM CHEAPER NUTS WITH ONE REPEATABLE PATTERN in EACH SET.

A registration card is included with each kit so that the customer can register the key code on the official website in order to obtain a spare key in case of loss.

• the OFFER CONCERNS NUTS WITH DIMENSIONS:
улей>

-Thread diameter / Thread pitch:M 12x1.5 мм

- Total length of the nut (В): 34 мм

-Outside diameter of the nut топ (F1) : 25.5 мм

-Flange (cone) diameter(F2) : 28 мм

-Head shape(S): CONE (as in the attached photo), (double movable for original Ford alloy wheels with large holes).

Ключ / socket size: 2x 19/21 мм

- Depth of the nut on the thread: 26

The outer diameter of the гаечный ключ / socket: 23.2 мм - please check if it fits in the rim socket. гайка outer diameter top(F1) : 25.5 мм

вес: (4 гайки): 340 г

Weight: (сет. Caps / Caps / Packaging): 570g

PRICE FOR: 4 pcs. NUTS + 2 ADAPTERS + ORIGINAL PACKAGE WITH UNIQUE CODE (INTEGRAL PART of the SET).

Nuts with a thread 12X1.5 example application:

CHEVROLET Aveo, Lacetti, Cruze, Evanda, Epica, Rezzo, Captiva,

CITROEN: C-Crosser, DAEWOO Kalos, Leganza, Tacuma, Rezzo

DAIHATSU: Cuore, Trevis, Sirion, Move, Materia, Copen, YRV, Terios

FORD : Ka, Fiesta, Focus, Mondeo, Scorpio, Fusion, C-Max, transit Connect, Tourneo, Puma, Probe, Cougar, Kuga, Maverick

HONDA: Jazz, City, Insight, Civic, Accord, Shuttle, Odyssey, Stream, Prelude, HR-V, C-RV

HYUNDAI: Atos, i10, Getz, i20, Accent, i30, Lantra, Elantra, Sonata, XG25, XG30, XG350, Grandeur, Genesis, Matrix, Trajet, Coupe, Tiburon, Santa-Fe, iX55, VeraCruz

JAGUAR: S-Type, X-Type, XF, XJ

KIA: Picanto, Rio, Shuma, Cerato, Cee'd, Clarus, Magnetis, Opirus, Amanti, Venga, Soul, Carens, Joice, Carstar, Carnival, Sportage, Sorento

LAND ROVER: Freelander. .

MAZDA: 121, Demio, 2, 323 CFPS, 3, 626, 6, Xedos, 5, Premacy, MPV, MX-3, MX-5, RX-8, CX-7, CX-9, дань. .

MITSUBISHI: Colt, Lancer, Carisma, Galant, Space Runner, Space Wagon, Grandis, Eclipse, Pajero, Outlander, L200. .

OPEL: Astra IV Type J PROTON 300, 400, ROVER 200,25, Streetwise, 400, 45, 600. .

SMART: FourFour, SUBARU Justy 07 -. .

TOYOTA / LEXUS : IQ, Yaris, Corolla, Auris, Avensis, Camry, Urban Cruiser, Verso, Prius, Previa, MR2, Celica, RAV 4, HiLux, Lexus IS 200, 300, 220, 250, GS 300, 430, 450, VOLVO C30, S40, V40, V50, S90, V90, C70. .

AND OTHER . .

PLEASE CHECK THE SOCKET SHAPE AND THE DIAMETER OF THE WHEEL SEAT (WHETHER THE CAP FIT)

Assembly instruction:

Remove the original nut / bolt. Make sure the threads are rust-free. Не смазывайте нити. Check that the TPI lock is correct for the application (socket shape / thread). TPI lock on the wheel by hand tightening it. We recommend mounting with a minimum thread of 18mm. Inadequate tightening with an impact гаечный ключ can damage the fasteners. Проверьте замки после вождения 50 км и повторно плотно, если это необходимо. В некоторых случаях колеса должны быть сбалансированы после установки, но это редкий случай. We recommend special care for the nuts in the winter season, where salt and aggressive chemicals appear on the roads, which may worsen the visual effect of security (it is good to systematically clean the nuts from residual salt страхования депозитов).

OFFICIAL DISTRIBUTOR, TPI BRANDS in POLAND. У вас есть гарантия покупки полностью оригинальных товаров.

IN OUR OTHER AUCTIONS,in. CENTERING RINGS, LOCKERS, NUTS, BOLTS, EMBLEMS, SPACERS, Vehicle CHEMISTRY. .
