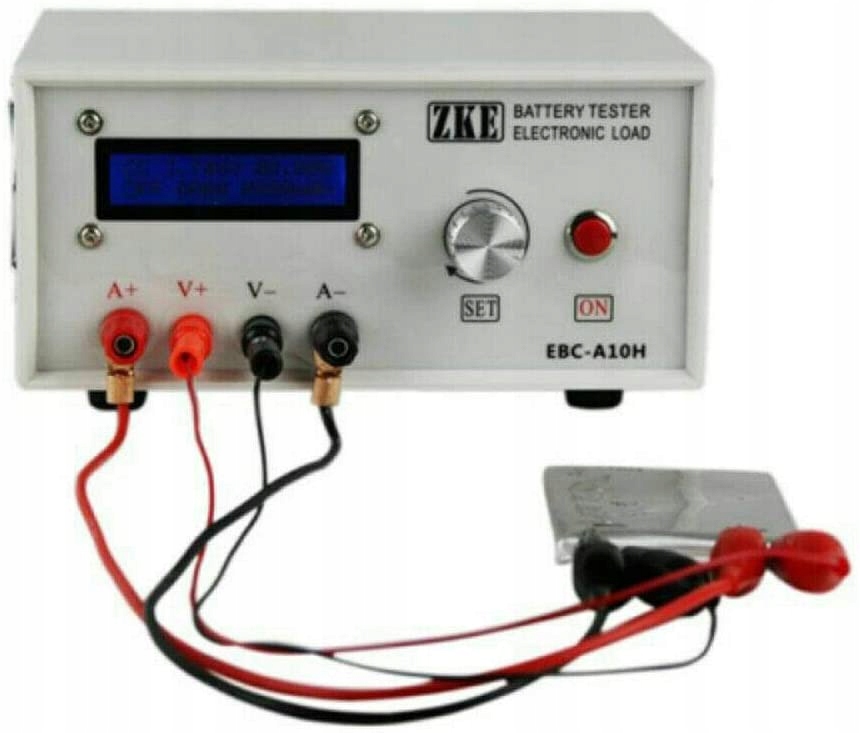

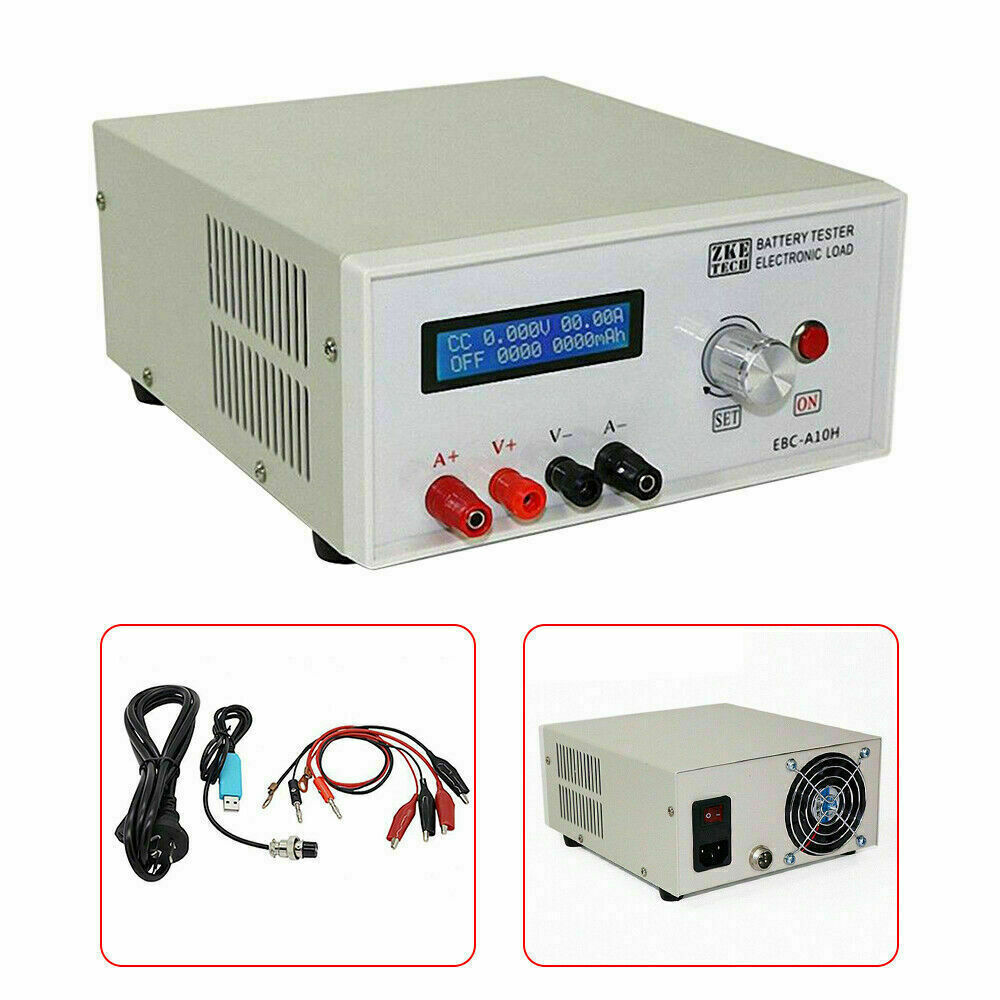

Battery charge and discharge tester EBC-A10H European standard
Product description:
<улей>
The EBC-A10H is an electronic load with a charging function. Suitable for charging and discharging capacity test of various batteries, mobile Power discharge test, Charging head Power efficiency test, Computer connection operation and more extensive functions via Online software.

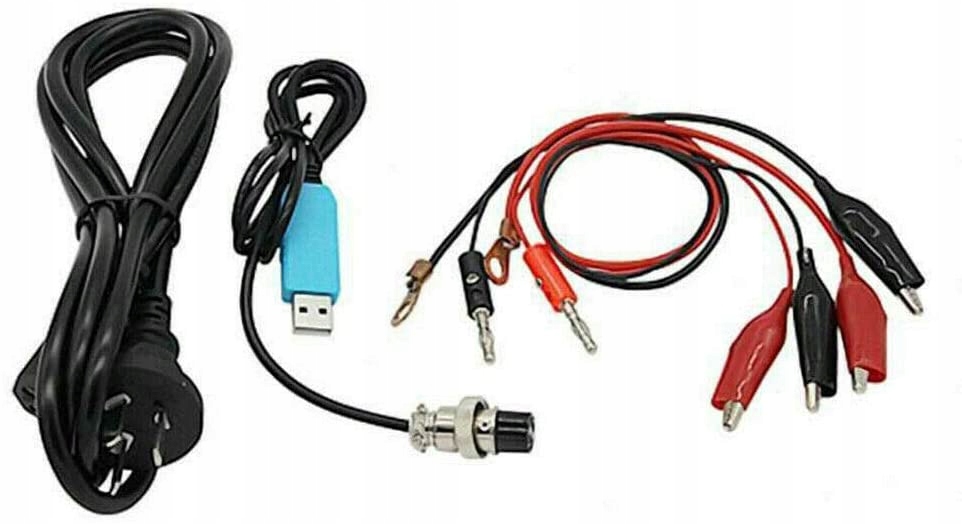

Package includes:
<улей>
1X тестер
1X онлайн, лайн
2x1 pairs тестовый клип
1X шнур питания
Note:
<улей>
Built-in 24V Power module.
Product specification:
<улей>
мощность: AC110-220V
Voltage setting: Discharge: 0.00-30.00 V, минимальный размер шага 0.01 V
зарядка: 0.00-22.00 в, минимальный размер шага 0.01 В
Current setting: Discharge: 0.05-10.00 a минимум Step size 0.01 A (automatic Current limit when the power exceeds the limit)
Charging: 0.05-5.00 a минимум step 0.01 A (maximum current limited by supply current)
Discharge Mode: DSC-CC: Constant Discharge Current for testing Battery capacity or supply current
DSC - CP: Constant Discharge Power for simulating constant wattage devices or power testing
Charging method: standard charging: Nickel hydrogen, nickel chromium, lithium, Lithium iron, lead acid support;
CHG-CV: Custom DC charging for rechargeable batteries only
Auto charge and discharge: support auto charge-Discharge-charge mode для тестирования емкости аккумулятора
тест напряжения: accuracy 0.002-4.500 V (низкое напряжение) is 0.003 V, error ± 0.5%
Accuracy 4.50 V-30.00 V (высокое напряжение) - 0.01 V, error ± 0.5%
текущий тест: 0.05-10.000 a, accuracy 0.005 a, ошибка ± 0.5%
тест емкости: 10 Ah, разрешение 0.001 Ah
10Ah-100ah, разрешение 0.01 Ah
Выше 100 Ач, разрешение 0.1 Ач
Connection method: four-Wire detection, separate wiring for voltage and current channels to ensure measurement accuracy
ЖК-дисплей: voltage, current, capacity, time, power, Energy test data
Online computer: USB-TTL выделенный последовательный порт (mini USB interface, custom USB cable) computer control, drawing curves, Calibration benchmark, Firmware upgrade, charge and discharge cycle.
Tip: a + V + подключен к положительной батарее, A_V_ подключен к отрицательной батарее
