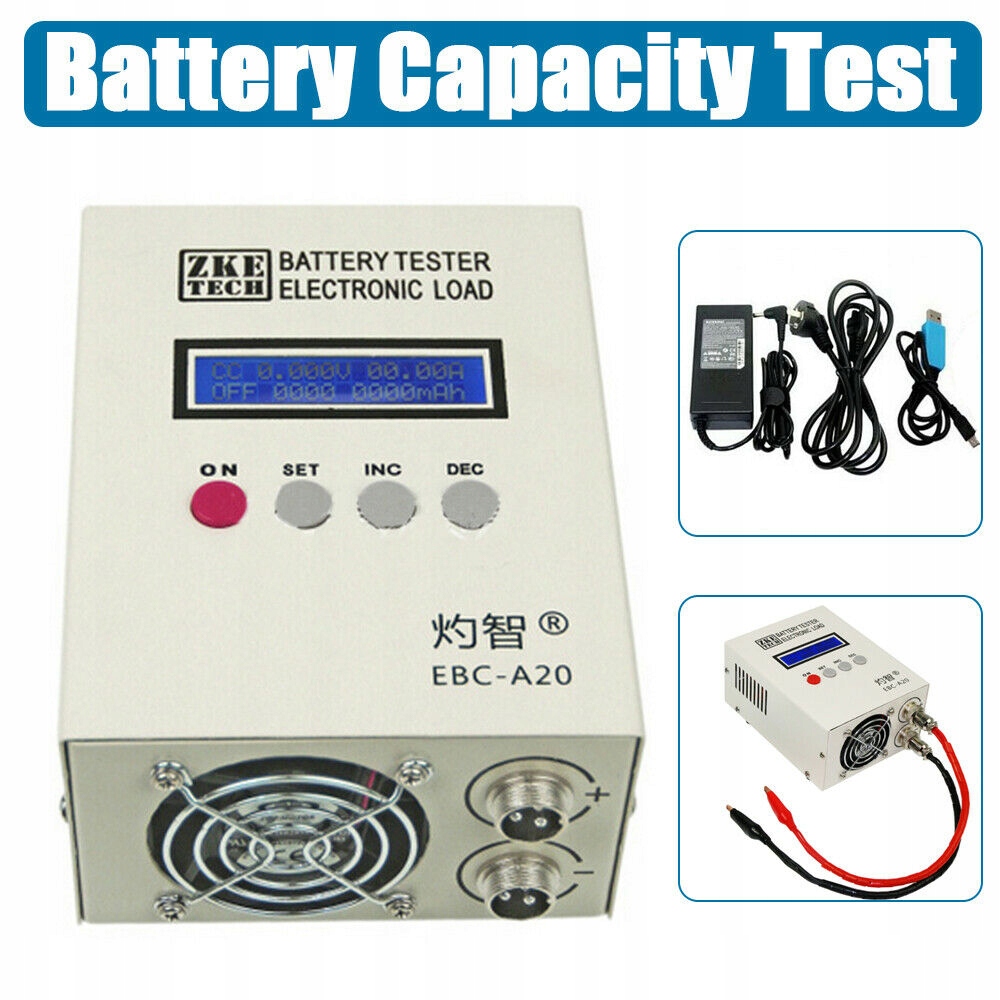

★ The EBC-A20 is a Battery tester with a charge and discharge function for testing the capacity of lithium / lead-acid batteries (charge and discharge 20A, maximum power 5A, 85W) .

★ Supports separate charging and discharging and a PC connected charging stand that can be recharged and discharged multiple times and has advanced features thanks to online software.

★ the maximum discharge power is 85W, within 4.2 V can be 20A, 8.4 V can be 10A, the higher voltage is less than 10A.

★ емкость тест accuracy: 10Ah / 0.001 Ah 10A-100A / 0.01 A выше 100A / 0.1 a

★ Cable connection: 4-wire test, voltage test and current test on different cables to ensure accuracy.

источник питания: DC19V-20v, current about 3.5 a

Voltage setting: 0.00-30V, минимальный step is 0.01 V (maximum 18V when charging)

Current setting: discharge: 0.1 A-20A, минимум 0.01 A (automatic current limit with excessive current энергопотреблением)

Charging: 0.1 A-5A , at least 0.01 A (automatic over-consumption Current limit)

режим:

DSC-CC (постоянный ток разрядки): постоянный ток разрядки для тестирования емкости батареи

DSC-CP (Constant power Consumption): Constant discharge current for simulating energy consuming devices

CHG-CV (constant charge current): constant discharge current, supports lithium battery capacity test;

Automatic charge and discharge: support charge and discharge model, battery capacity test testing;

напряжение тест: 0.0-4.5 V (низкое напряжение), accuracy вниз 0.003 V

4.5 V-30V (высокое напряжение), accuracy до 0.01 V

текущий тест: 0.1-20A, accuracy до 0.01 A.

емкость тесты accuracy: 10Ah / 0.001 Ah 10A-100A / 0.01 A выше 100A / 0.1 a

Cable connection: 4-wire test, Voltage test and current test on different cables to ensure accuracy.

LCD display: voltage / current / capacity / time / power энергопотреблением and other data;

PC connection: USB to TTL cable

1X шнур питания

1X charger

онлайн 1X cable

2x кабельный зажим

Note: This model does not support NiMH, NiCd charging and performance tests.
