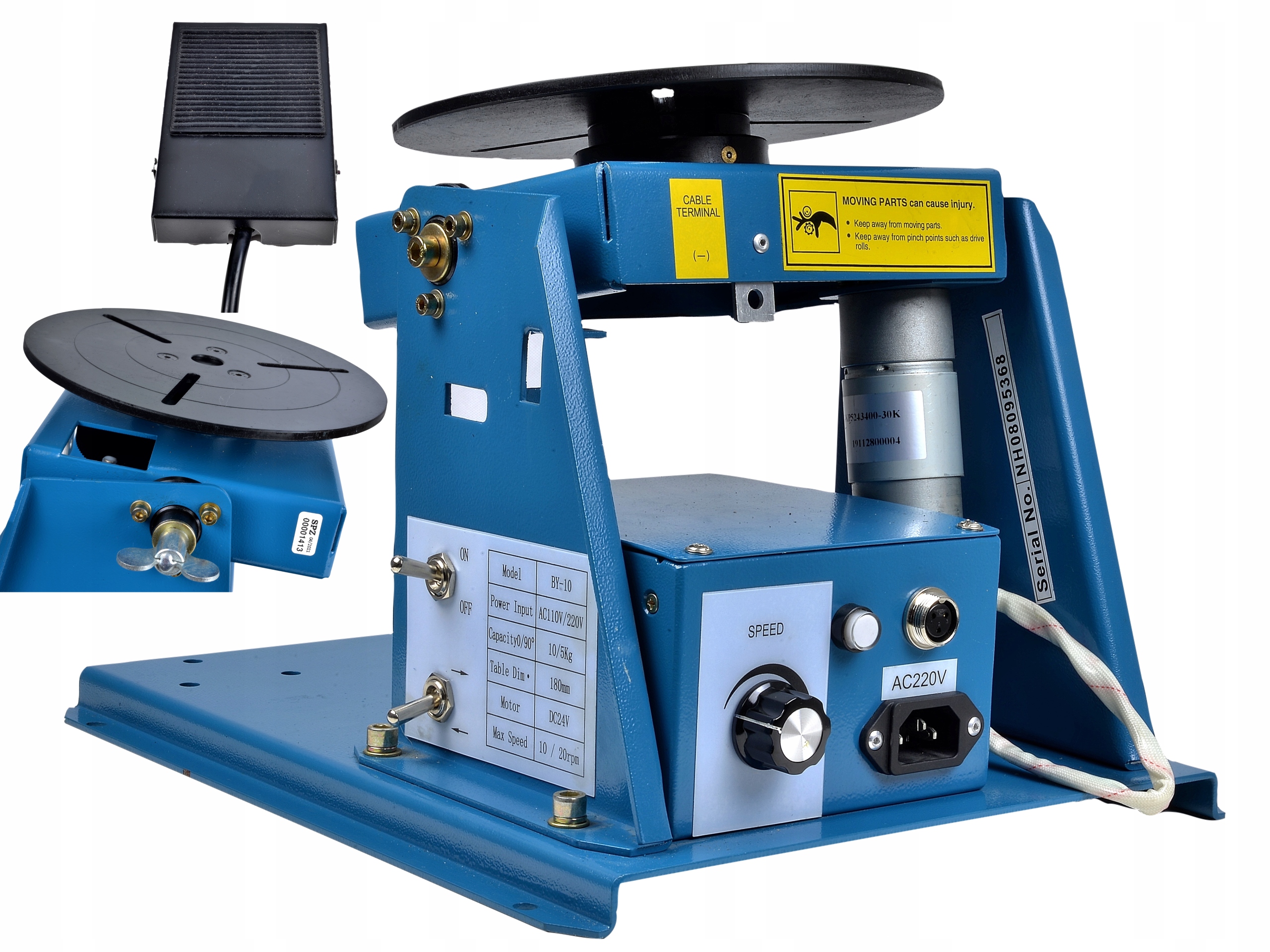

Сварочный вращатель POSITIONER BY-10 MAGNUM 180mm

Type: ротатор, welding positioner // Модель: -10 // Power supply: 230 // Maximum load: 10 // Table diameter: 180 мм

MAGNUM BY-10 ROTATOR

Rotators and positioners are devices supporting welding works which enable to obtain the optimal and precise position of the welded элемент.

The rotating and tilting rotator disc (in the range from 0 to 90 degrees) allows for the optimal setting of the welded element in the appropriate position, while the rotary movement facilitates the positioning of long welds, which is particularly helpful when welding tanks or pipes.

это характерно для versatility, allowing The welding process be carried out in an optimal position and thus contributing to the improvement of the quality of welded items. The applied Design solutions ensure safe operation and trouble-free operation.

для профессионального и любительского использования.

the USE of TURNERS IS:

ADVANTAGES OF THE DEVICE:

BY-10 CONSTRUCTION / BUBBLE WIPER

rotation direction switch

rotation direction switch

smooth adjustment of the speed of the Disc rotation

compact, compact design

педаль управления

thermal fuse

stable Speed control

brush motor

диапазон наклона диска 0-90 °

possibility of mounting the centering holder

задняя панель:

SA1: On / Off switch

SA2: forward / reverse rotation switch

SA3: ground

Drop Lock: table Tilt lock

улей> боковая панель:

P1: ON сигнальная лампа

P2: power socket

RU: control Pedal jack

VR: контроль скорости

TECHNICAL SPECIFICATION:

напряжение питания / 230V / 50Hz

table load in horizontal position, кг 10

table load in vertical position, кг 5

table diameter (D) мм 180

workpiece diameter мм 215

maximum table tilt / 0-90º

RPM range 2-16

Motor power В 24V / 10W

общая длина (a) мм 320

общая ширина (b) мм 260

total height (c) мм 225

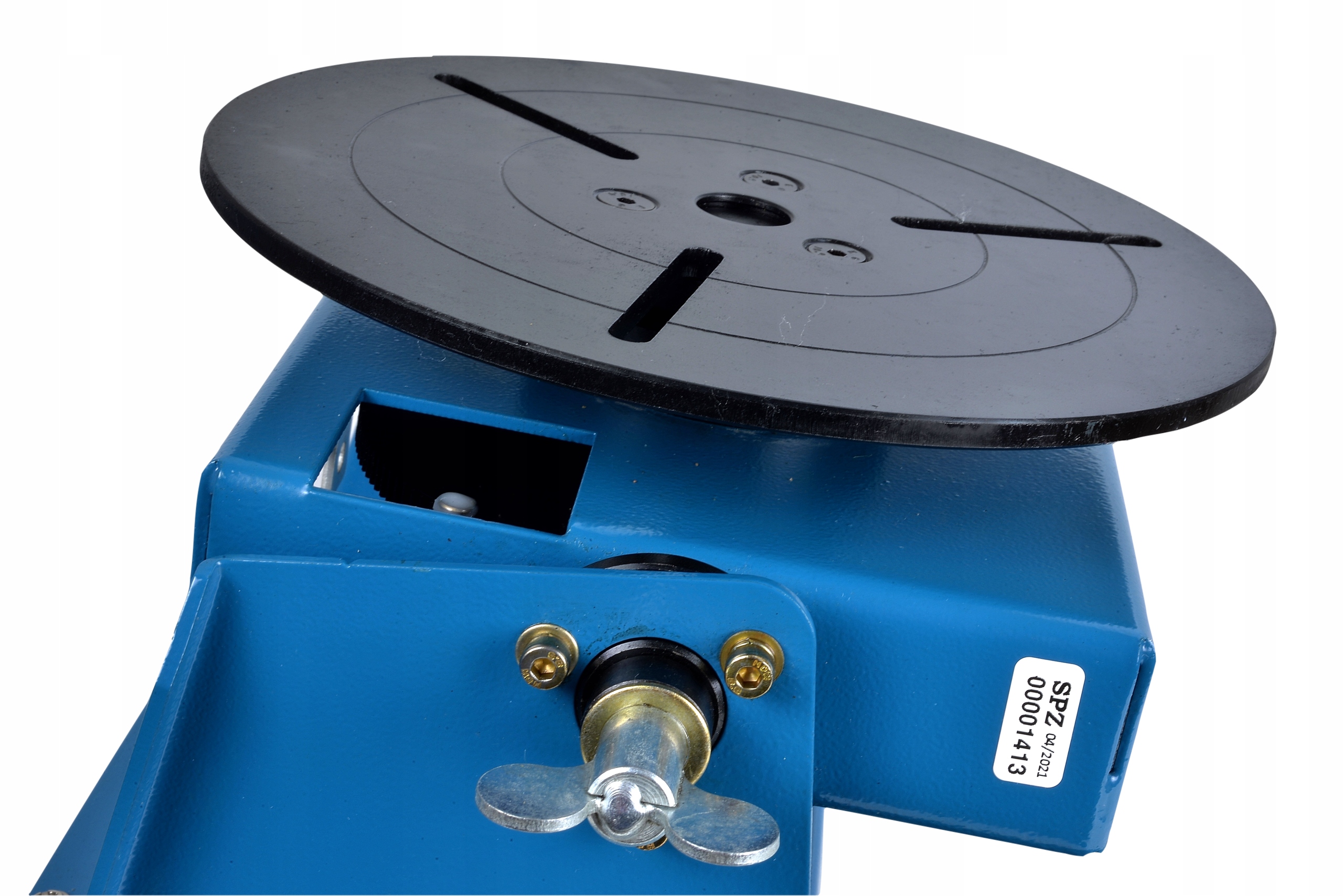

table Tilt adjustment

table inclination (Г) мм 0 - 90º

Вес кг 10

smooth Speed regulation

welding current A 200

INCLUDED :

сварочный ротатор BY-10 MAGNUM

control pedal (included) enables remote control (start - stop)

шнур питания

instruction manual in Polish with a certificate

original packaging
