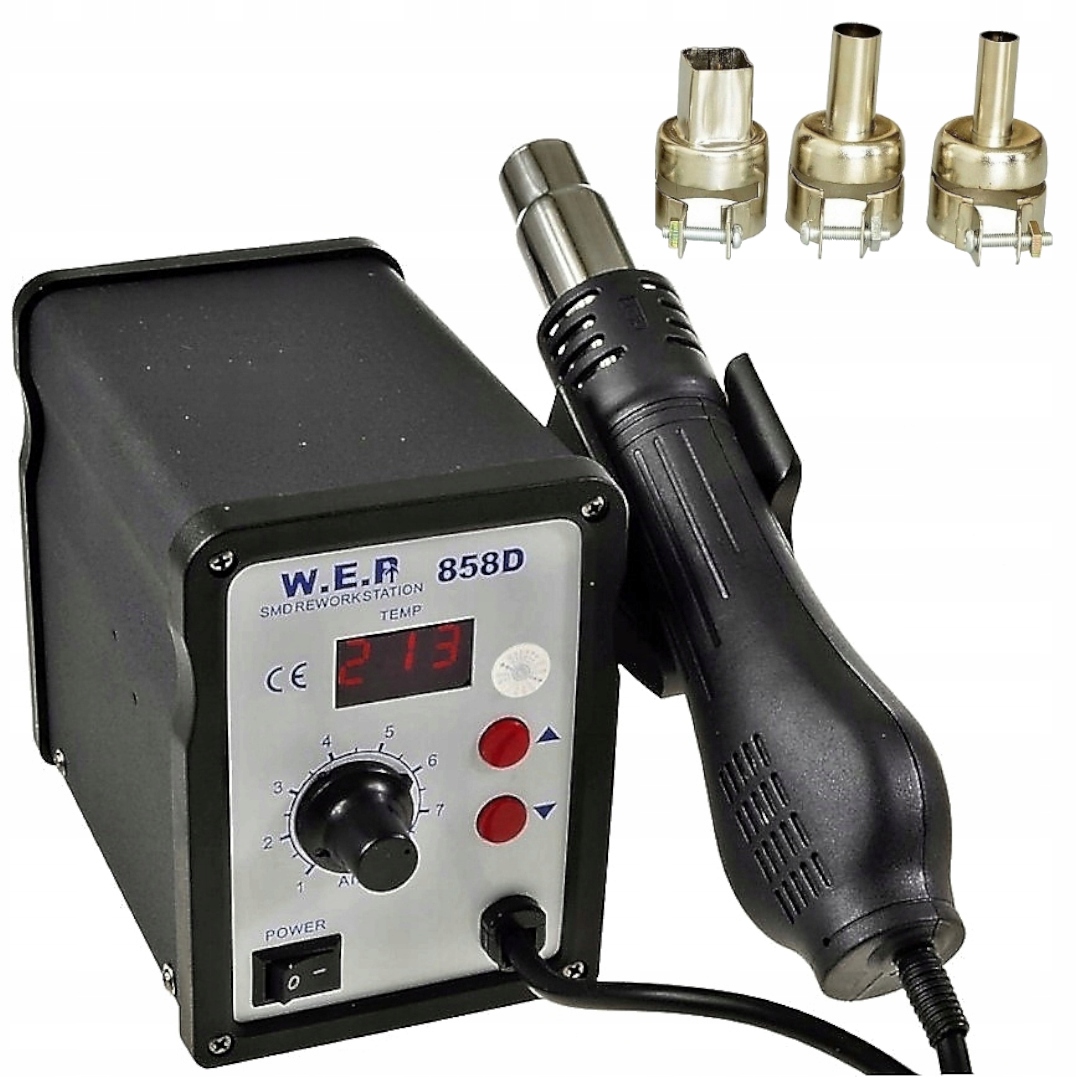

PLASTIC WELDER WEP 858D + 11 NOZZLES BOND MESH

+ PLASTIC (WELD) - 2x100 grams-description below + сетка

+ Plastic Welding Guide

SET844

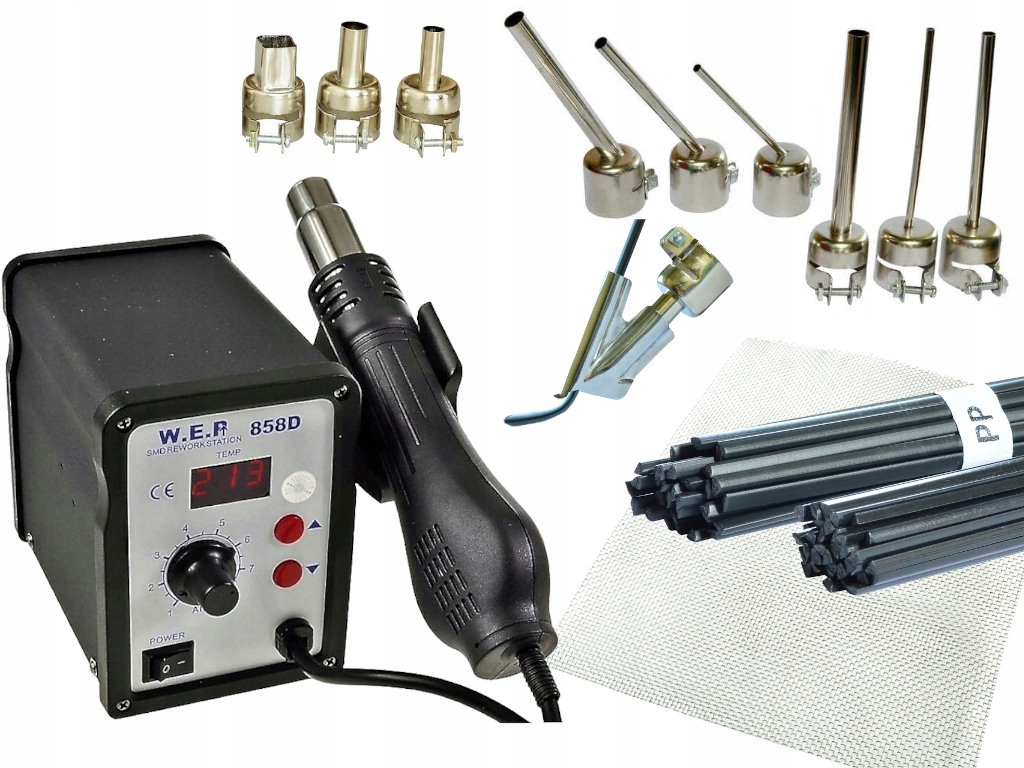

What are you buying:

Reinforcing mesh - 1 piece with a size of 20x25 [см]

Set of 11 nozzles:

1. Round nozzle with a diameter of7 мм
2. Round nozzle with a diameter of9 мм
3. square nozzle12x12 мм
4. round with a diameter of 3mm, total height 78mm
5. round with a diameter of 5, total height 78
6. round with a diameter of 8mm, total height 78mm
7. long round nozzle at an angle of 3mm / 85mm
8. long round nozzle at an angle of 5 мм / 85 мм
9. круглая насадка 8 мм / 85 мм long
10. + Quick welding nozzle BUT
11. + Reduction nozzle for the but nozzle

Plastic (JOINT) - PP triangle with a base (100 grams) about 45 CM long, for welding plastics

Plastic (JOINT) - ABS triangle with a base (100 grams) about 45 CM long, for welding plastics

Plastic welding tutorial

!!! ATTENTION !!!

Together with the сварщик you get a set of nozzles, thanks to which you can immediately start working with the device, including a super long bent nozzle

BUT nozzle in the photo on the right

the photos below show an example of how to set up and use the BUT nozzle-nozzle included!

BUT the nozzle is placed on the round nozzle with a diameter of 9 mm, which is included in the set

Welding with the BUT nozzle - an additional hole in the nozzle is provided for plastic insertion

Welding without a BUT nozzle

Plastic (JOINT) - ABS triangle with a base (100 grams) about 45 cm long, for welding plastics

Plastic (JOINT) - PP triangle with a base (100 grams) about 45 cm long, for welding plastics

DESCRIPTION OF OFFERED BINDERS

ABS Бонд

The markings you weld: ABS, ASA, AES ABS + PC, ABS / PC, ABS-PC and производные.Ли> улей>

PS BINDER

Application: Car racks, Advertising stands, RTV / household appliances, lighting fixtures, Kia handles, Food containers, Refrigerator shelves

точка плавления: 280-340 ° c

The marks you weld: PS, HIPS, SMA, SB, SAN, PS hard

Reinforcing mesh for welding plastic.

Perfect for recreating missing elements such as:

handles,

bumpers и т.Ли> улей>

The mesh can be trimmed as needed.

Reinforcing mesh - 1 PIECE

The reinforcing mesh is made of high-grade steel,

It is covered with a layer of zinc to prevent possible corrosion.Ли>

размеры:20x25 [см]

The welding machine comes with an electronic plastic welding guide. Это знакомит вас с проблемами сварки пластика в легком пути и делает его легче начать работу с устройством. После покупки, пожалуйста, свяжитесь с нами по электронной почте, чтобы отправить вам руководство. Thank you.

The WEP 858D сварщик состояние живых характеризуется is by:

регулирование воздушного потока составляет 120 л / мин макс.

temperature regulation in the range of 100C - 500C

светодиодный дисплей

Smooth regulation of air discharge, digitally controlled.Ли>

a strong heater made of thick wire mounted on a frame (greater strength and durability of the heating element)

Fast achievement of the desired temperature and high temperature stability

Fan driven by a brushless motor (high durability and надежность, quiet operation, low vibration)

есть микро-переключатель в держателе фляги горячего воздуха, который, когда вы кладете флягу вниз, заставляет ее идти в режим ожидания, который расширяет жизнь нагревателя и выключает / уменьшает поток воздуха, и это экономит энергию.Ли>

The WEP 858D сварщик, is distinguished by a solid, compact housing, thanks to which it takes up little space. Сварщик очень прочный. Температура показана на светодиодном дисплее.

The сварщик can repair:

headlamps,

bumpers,

mirrors,

Heater casings,

batteries,

air-conditioning,

спойлер,

petrol, oil and water tanks as well as truck body parts

GSM phones

улей>

The welder can also be used to repair electrical installations: by shrinking the sleeves.

Along with the welding machine you get a set of nozzles, so you can start working with the device immediately.

Calculation of the profitability of welding

Typically, the price of the service is calculated based on the type of crack:

crack difficult up до 2 / 10мм

средняя трещина, up - 1.5 PLN / 10mm

crack easy up до PLN 1 / 10mm

other cases of repair of plastic elements according to individual arrangements

улей>

for example: when a bumper cracks 70 cm long, with a medium-difficult crack, the purchase is returned after 2-3 bumpers are repaired.

A strong heater made of thick wire mounted on a frame (greater strength and durability of the heating element)

Red - blue wires for connecting the Temperature sensor

Red wires connecting the heater

! ATTENTION !

Heater of an old design with coils burnt out from other manufacturers. Тепловоз был подменен к быстрым коротким схемам и выгоранию.

First run

Place the stock on the holder when you start it. После того, как он поднимется, он начнет работать.

From the top, a holder with a magnetic sensor

Rubber feet
