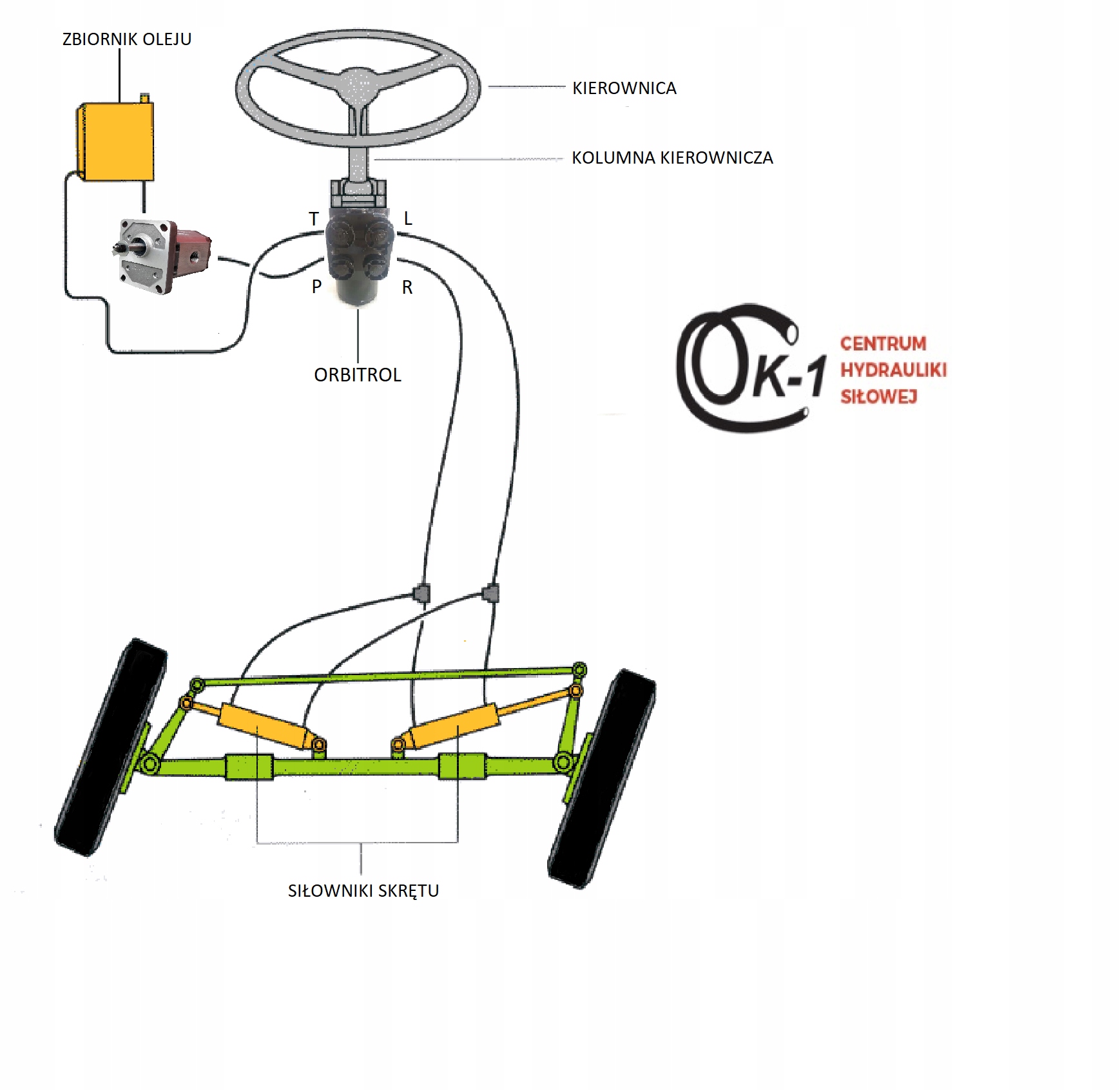

The OSPC 125 ON orbitrol is intended for the hydraulic control of the steering system in agricultural tractors, forklifts, excavators, combines and construction machines.

It has an overflow valve, two shock valves and a non-return valve.

the advantages of our orbitrols are

Technical data of the orbitrol:

Orbitrol 125 with the система (OPEN NORMALLY), while the steering wheel is stationary, the oil постоянно circulates in the system and freely passes through the orbitrol, the return line to the tank, the pump then works but is unloaded.

Connections: P, T, A, B internal threads [BSP]: 1/2 "

Fixing the steering column: 4X M10 screw - 16mm

Valve setting: overflow 160бар, shock 240bar

геометрический объем: 125cm3 / rev.

Recommended Oil flow in the system: от 10 до 16 л / мин.

материал: литое железо

IMPORTANT, SAFETY FIRST

Orbitrol is a very precise and important device for traffic safety, unfortunately there are many cheap goods from China on the market which at first glance looks the same, but the неточно workmanship prevents proper driving and work with the tractor. Мы не рекомендуем покупать новые орбитальные аппараты, из ненадежных источников, из продавцов, у которых не было опыта в продаже этого типа оборудования.

URSUS: C-330, C-360, C-360-3P, 3512, 3502

МТЗ: 80, 82, Т-25

ZETOR: 5211, 7211; 7045, 7245

CASE IH AVJ: 55, 60, 70, JX 55, 60, 65, 70, 75, 80, 85, 90, 95, VJ 60, 70, 80

FIAT: 55-46, 60-46, 65-46, 55-56, 60-56, 65-56, 70-56, 55-66, 60-66, 65-66, 70-66 80-66, 55 -88, 60-88, 65-88, 70-88, 80-88, 55-90, 60-90, 65-90, 70-90, 80-90, 90-90, 100-90, 110-90 , 60-93, 65-93, 60-94, 65-94, F 100, 110, 130

MASSEY FERGUSON: 230, 240, 253, 255, 261, 263, 340, 342, 350, 352, 355, 360, 362, 365, 372, 375, 382, 390, 396, 398, 399, 265, 275, 3275E , 285, 290, 290E, 298, 375E, 390E, 675, 690, 698, 698T, 699,

NEW HOLLAND TD: 5040, 5050, 55D, 60D, 65D, 70D, 75D, 80D, 85D, 90D, 95D

RENAULT: 58-32ME, 58-32MA, 58-32MS, 58-32MX, 75-32TX, 75-34TX, 85-32TX, 85-34TX, 90-32TX, 90-34TX, 650MI, 750MI, 754MI, 850MI, 854MI, 900MI, 904MI, 950MI, 954MI, 1032-54TS, 103-54TX, 103-54TE, 103-54TA, 106-54TS, 106-54TX, 106-54TE, 106-54TA

Renault CERES: 65, 70, 70X, 75, 75x, 85, 85x, 95, 95X, 310, 320, 320X, 330, 330X, 340, 340X, 325X, 335X, 345X, 355x

RENAULT CERGOS: 330, 340, 350, 345, 355,

CLAAS CELTIS: 426RA, 426RC, 426RX, 436RC, 436RX, 446RA, 446RC, 446RX, 456RA, 456RC, 456RX

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Насосы, распределители, гидравлические цилиндры, клапаны, гидравлические линии.

We issue НДС 23%

мы приглашаем вас к сотрудничеству
