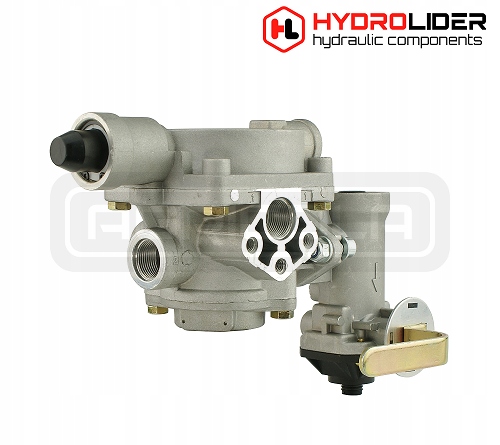

MAIN VALVE HZS-4 FOR CONTROLLING the BRAKES of the TRAILER 3-RANGE регулятор прицепа BRAKING FOR 1 AND 2-CIRCUIT AIR SYSTEMS

Production:

Original product of the Hydrolider брэнд, символ: 2.00.03.119

Application:

Universal main control valve supplied with a 3-range Brake force регулятор. The set is used in 1 and 2-circuit air and air-hydraulic тормозная systems in trailers or semi-trailers for agriculture, forestry, construction, trucks and others.

Versatile use ,m.in. в производстве сельскохозяйственных и садовых трейлеров, специальных транспортных средств, таких как спредеры, slurry tankers, sprayers, barrel wagons и других с их собственной воздушной системой.

The set fits, например for agricultural trailers Autosan Sanok D-35, D-47, D-50 D-732, HL 8011, HL 6011, as well as for trailers of the following brands: DAF, Krone, Scania, RVI, MB, MAN.

Comparative Numbers: ГЦ-4, HZS-4, 7031132001

TASKS OF THE CONTROL VALVE IN THE BRAKE SYSTEM:

Technical data:

Universal Brake force Adjuster with three ranges regulated by the lever position. Используется в одно-и двухконтурных воздушно-гидравлических тормозных системах.

это позволяет вам вручную регулировать braking force, depending on the trailer load, before starting the journey. Appropriately selected тормозная force for the weight of the trailer prevents the wheels from locking during тормозная, reducing wear of the тормозная система, and tires.

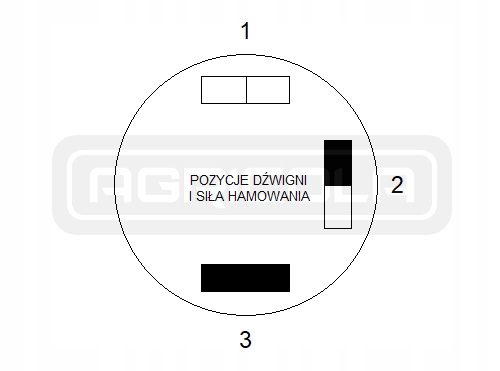

Regulation and principle of operation:

Range 1 - trailer without a load, Pressure range: 0.8-2.2 [bar]

Range 2 - 1/2 load trailer, Pressure range: 2.8–3.7 [bar]

Range 3 - трейлер full load, pressure range: pressure in the tank
