КОМПЛЕКТ КОНДИЦИОНИРОВАНИЯ ВОЗДУХА 12V / 24V ЭЛЕКТРИЧЕСКИЙ ЭКСКАВАТОР

• UNIVERSAL Air CONDITIONING KIT 12V OR 24V
• APPLICATION-AGRICULTURAL MACHINES-BUSES-TRACTORS

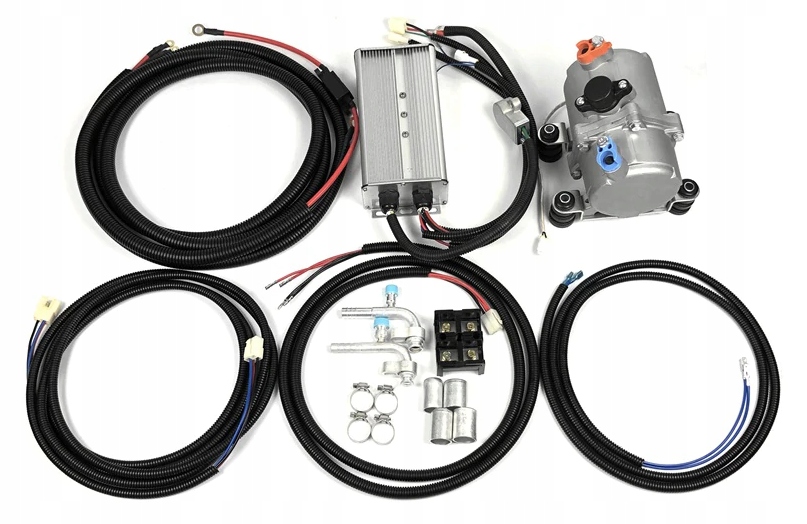

• the SET INCLUDES
• Air CONDITIONING EVAPORATOR WITH CONTROL
• кондиционер компрессор
• CONDENSER
• вентилятор
• DRYER WITH SENSOR
• sleeve заканчивается
• HOSES SET 12 METERS
• INSTALLATION INSTRUCTIONS
• POSSIBILITY of INSTALLATION IN OUR COMPANY

General information

: R134a

Speed range: 1000 ~ 2300rpm / 1000 ~ 3300rpm Working pressure: Suction pressure: 0.2 ~ 0.45 мпа Discharge pressure: ≤ 2.0 MPa / ≤ 2.2 MPa Pressure coefficient: ≤ 10 Ambient temperature: -40 ℃ - 80 ℃ Discharge temperature: ≤ 110 ℃ Lubricating oil requires: 8% -10% of total system refrigerant (gas)

Compressor data:

Semi-enclosed horizontal drum compressor Материал: aluminum alloy Voltage: DC 12V / 24V Operating voltage range: 10.5 vdc ~ 15vdc / 19.5 в постоянного тока ~ 32vdc Current: 45A + -2 / 35 + -2 Capacity: 21cm 3 / r Cooling capacity: 1.688 квт / 2.465 квт (5731BTU / 8410BTU) Speed range: 1000 - 2300 об / мин / 1000 - 3000 rpm Rated power: 550W / 850w Rated speed: 1800 об / мин / 3000 об / мин Oil: POE / 130ml - 150 мл (oil already in the compressor) Gas / refrigerant: R134a Condensing temperature range: 26.7 ~ 68 ℃ Evaporating temperature range: -10 ~ 12.5 ℃
