F2ZES-LUXEONdiode - 2in1 светодиодные дневные индикаторы направления 1757 lm

2in1 | Set of daytime running lights and LED indicators F2 | Luxeon ZES нем | MACHINE

The set includes a machine module. When making a purchase from this offer, you will receive acomplete kit for connection in the car.

Machine functions:

режим поворота работает независимо от режима DRL.

Our dual-function bulbs are installed in place of standard turn signal bulbs.

NOTE: the offered 2-in-1 set has a set of additional tips matching the sockets with the markings

Technical Specifications:

the set includes:

Diagram of connection of the торговый автомат module:

Kit connection instructions:

PIN no. 30 должен быть подключен к plus ( + ) of the ignition

PIN No. 85 should be connected to ground (- )

PIN No. 86 должен быть подключен к плюс (+) парковка рейс

PIN No. 87 is not connected-it's best to insulate

PIN number 87a должен быть подключен к plus ( + ) дневных ходовых огней

The offered 2-in-1 bulbs should be embedded in the holder like a standard bulb, and the additional cable should be connected to PIN No. 87a at the торговый автомат (relay)

The efficiency of LED bulbs 2in1 F2 LUXEON ZES

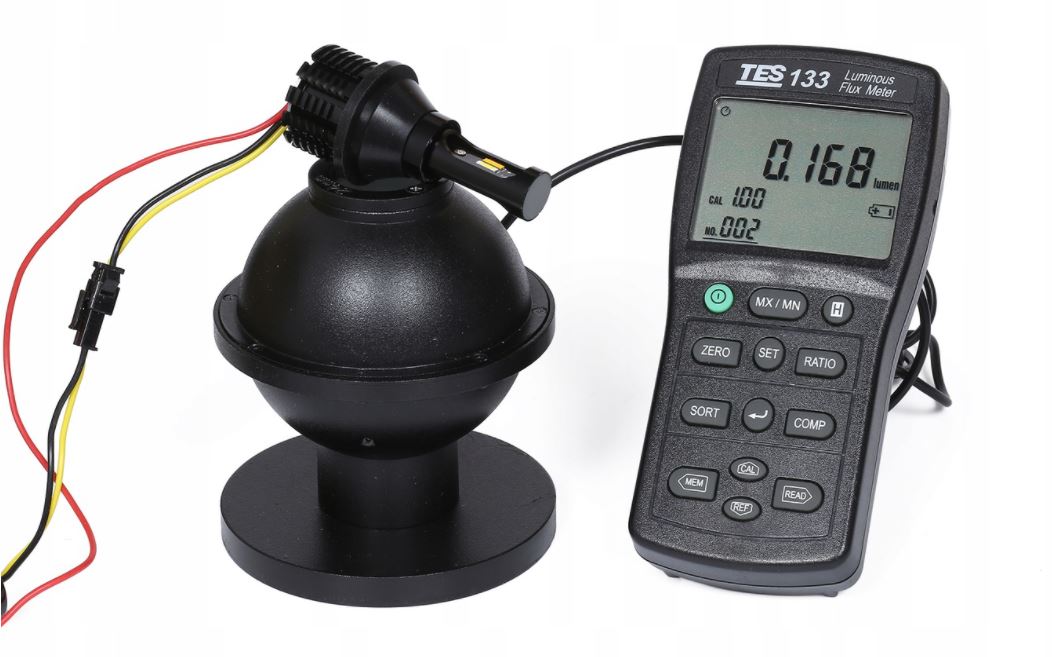

Only here! the actual power of the bulb measured on a professional Light intensity meter-сфера Ульбрихта

Many LED Lighting retailers give unrealistic Light intensity values for similar bulbs. Пожалуйста, держите большое расстояние от недооцененных, часто фиктивных данных в bulb specification!

The measurement was carried out on a 2-in-1 F2 ZES LED bulb with LUXEON diodes (from this offer) and a standard py21w turn signal bulb.

The results are given in lumens.

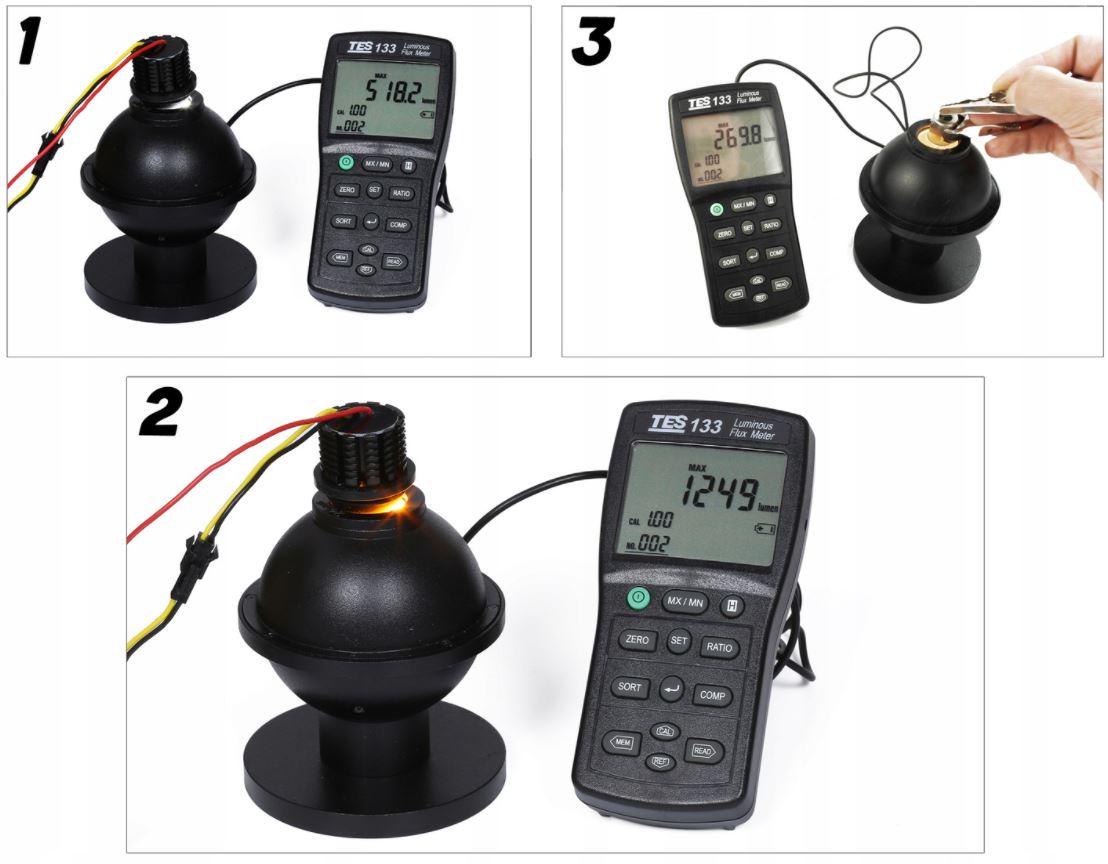

1. Light intensity measurementin The daytime running Lights mode , snow-white color.Ли>
2. Light intensity measurementin direction indicator mode , orange

For comparison, photo 3 shows the measurement of the light intensity of an ordinary P21W bulb

The luminous intensity of the 2in1 F2 ZES LED bulb with Luxeon нем is 91% higher than the luminous intensity of an ordinary bulb in the daytime running light mode, and as much as 362% higher in the case of direction indicators!

All this with lower power энергопотреблением. the advantages of having F2 ZES LED daytime running lights with Luxeon LEDs include:
