EPP6600 18,5 - ПАРКОВКА SENSORS UNIVERSAL 6600 18.5 NO 52

THIS IS A UNIVERSAL SET OF PARKING SENSORS FITS EACH VEHICLE PROVIDED THAT THE CAR DOES NOT HAVE AN ORIGINAL INSTALLATION OR SENSOR HOLES LARGER THAN THE SENSORS OFFERED.

когда он выполняет обратный или обратный маневр, то устройство исправно распознает обступы на дороге автомобиля и предупреждает водителя через дисплей и звуковой сигнал - разные цвета / звуковые частоты, зависящие от расстояния автомобиля от обступа.

After engaging reverse gear - it automatically starts to detect any препятствия within a radius of 2.5 meters from the sensor installation site.e. from the rear bumper of the car.

Disassembled sensors as those used for the first installation in serial cars. this speeds up and facilitates the Assembly process in the car. In the event of damage to the sensor (eg. bump) нет необходимости снимать бампер-брать датчик, снимать его и заменять.

The set of parking sensors is made of the highest quality materials that will allow you to use the device for many years. Спасибо за это, вы избежите многих стрессовых ситуаций.

1. The oblique interior of the воротник allows for precise correction of the sensor inclination angle in relation to the ground.

2. Collar made of strong plastic (does not stick out from the bumper like other universal sensors)

3. The internal housing of the источника is made of aluminum

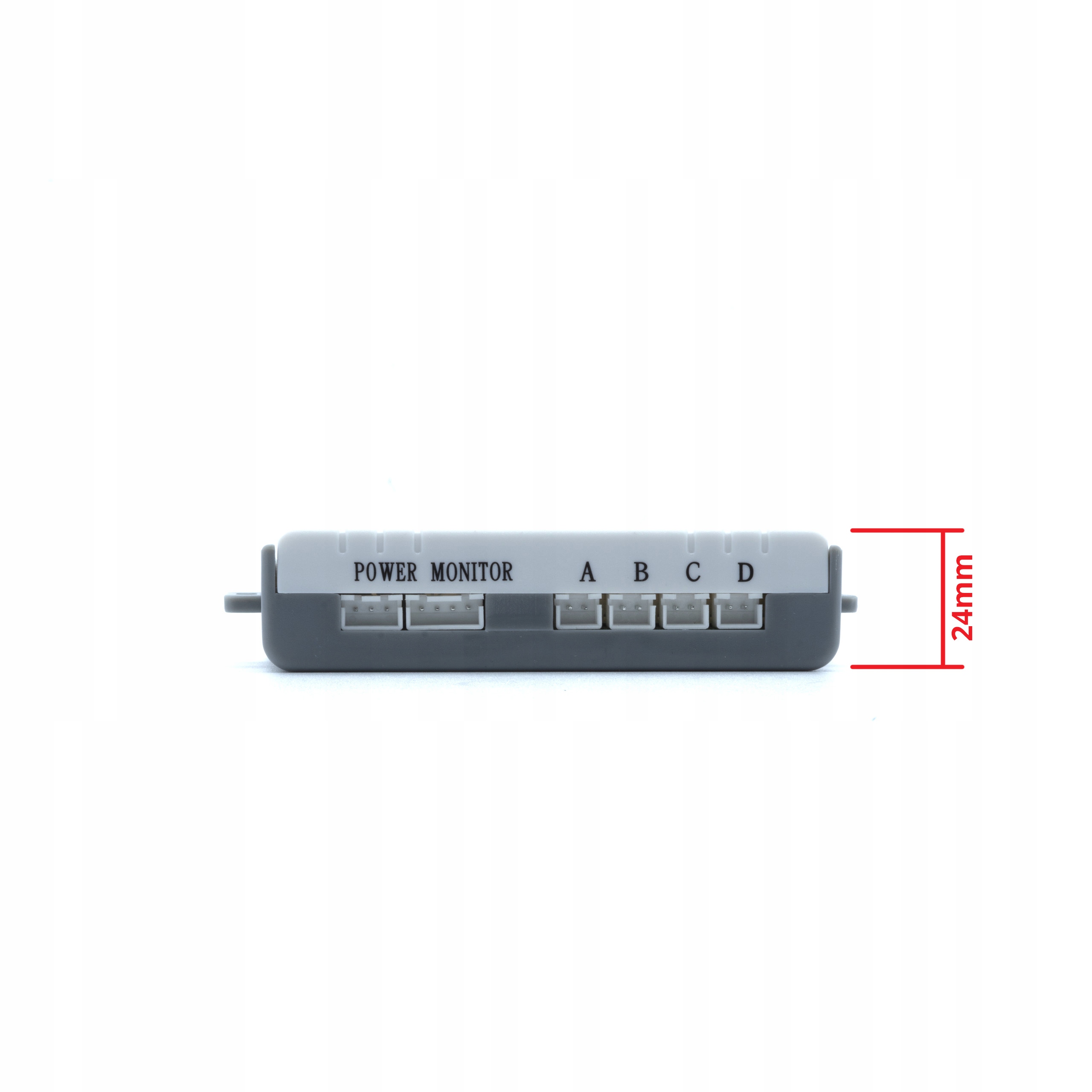

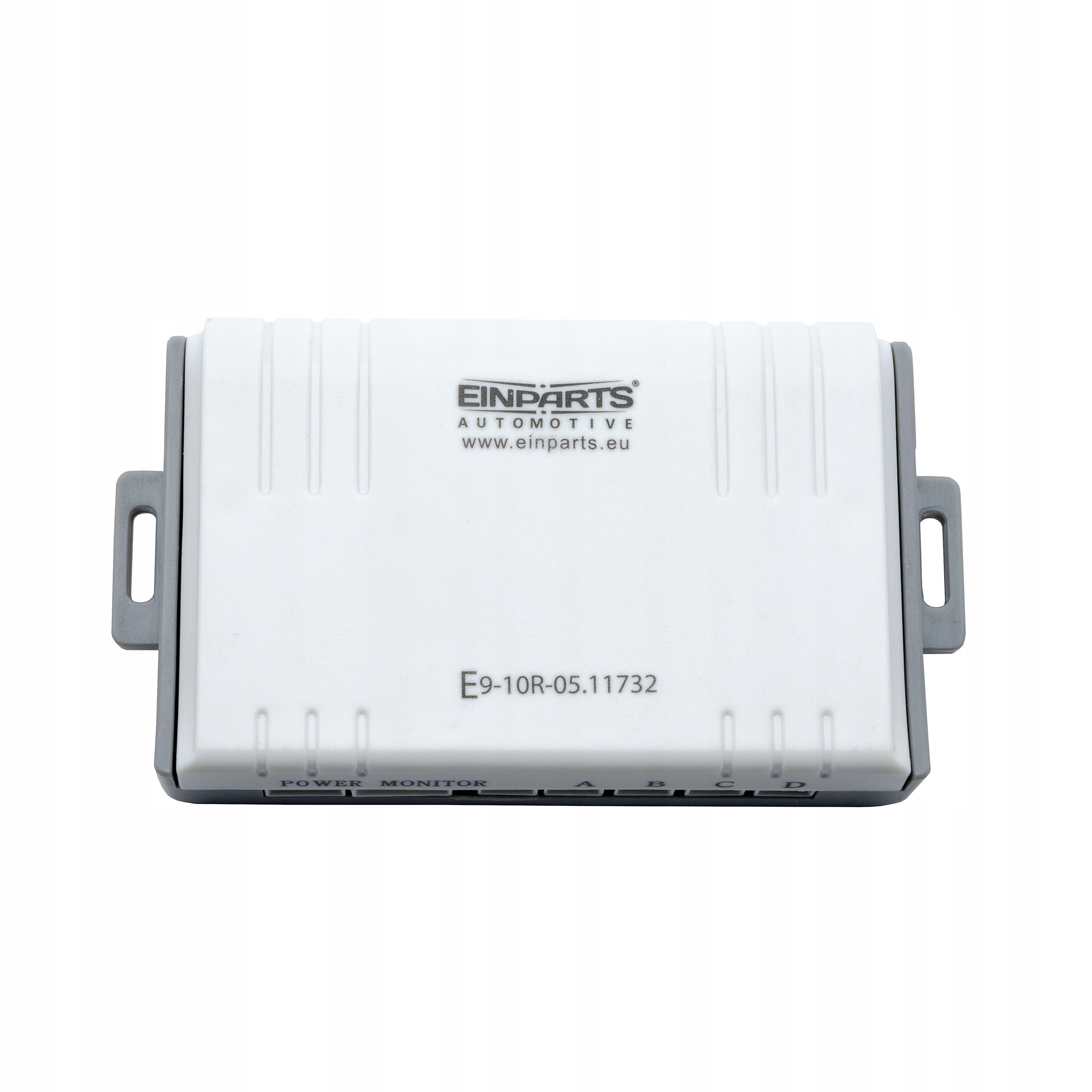

Control board:

1. Разъем питания

2. Display

3. Сенсор

4. Сенсор

5. Сенсор

6. Сенсор

Plug & amp; play connection significantly speeds up the Assembly process.

There are no additional "inactive" (unnecessary) inputs / connectors in our control panel, which may interfere with the operation of the device.

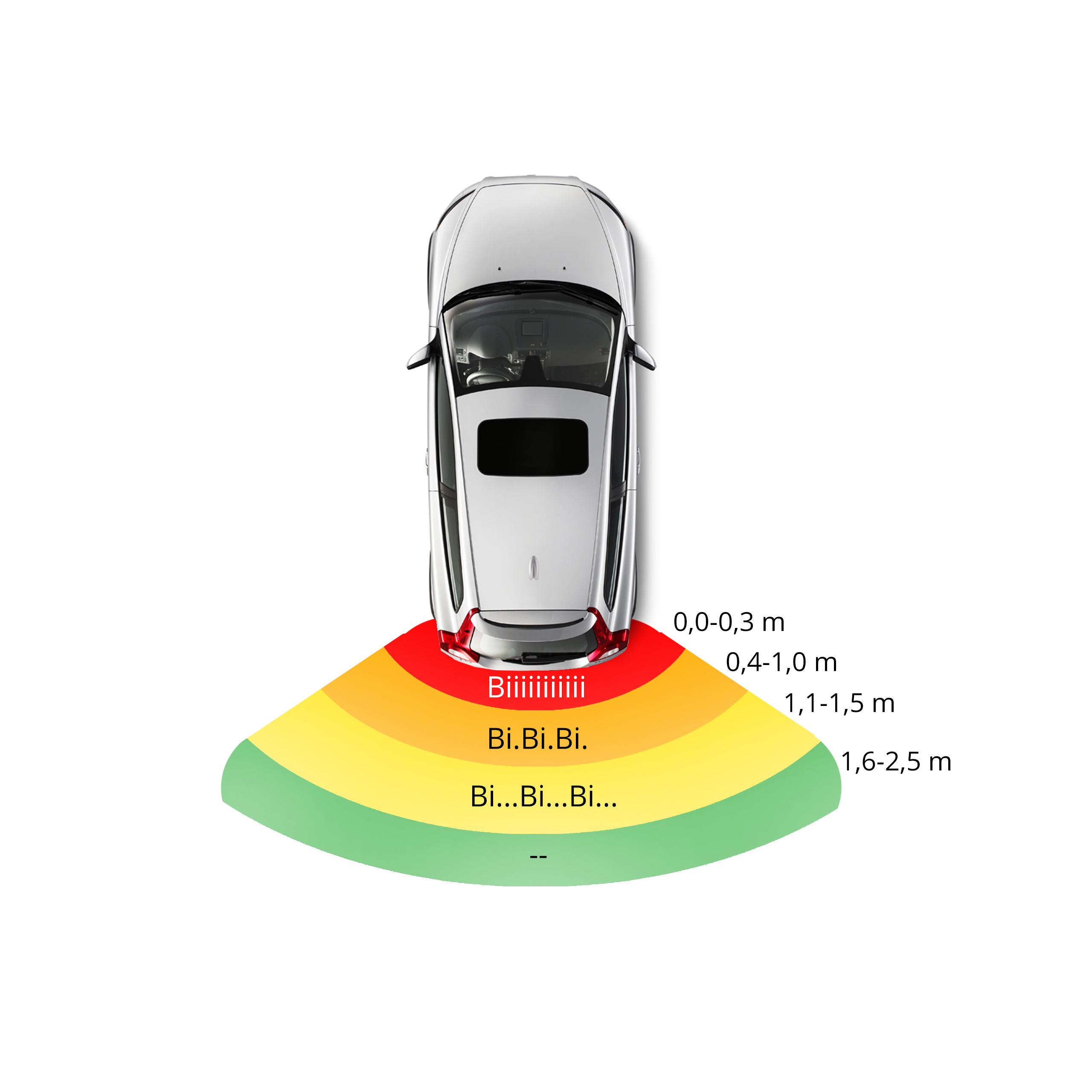

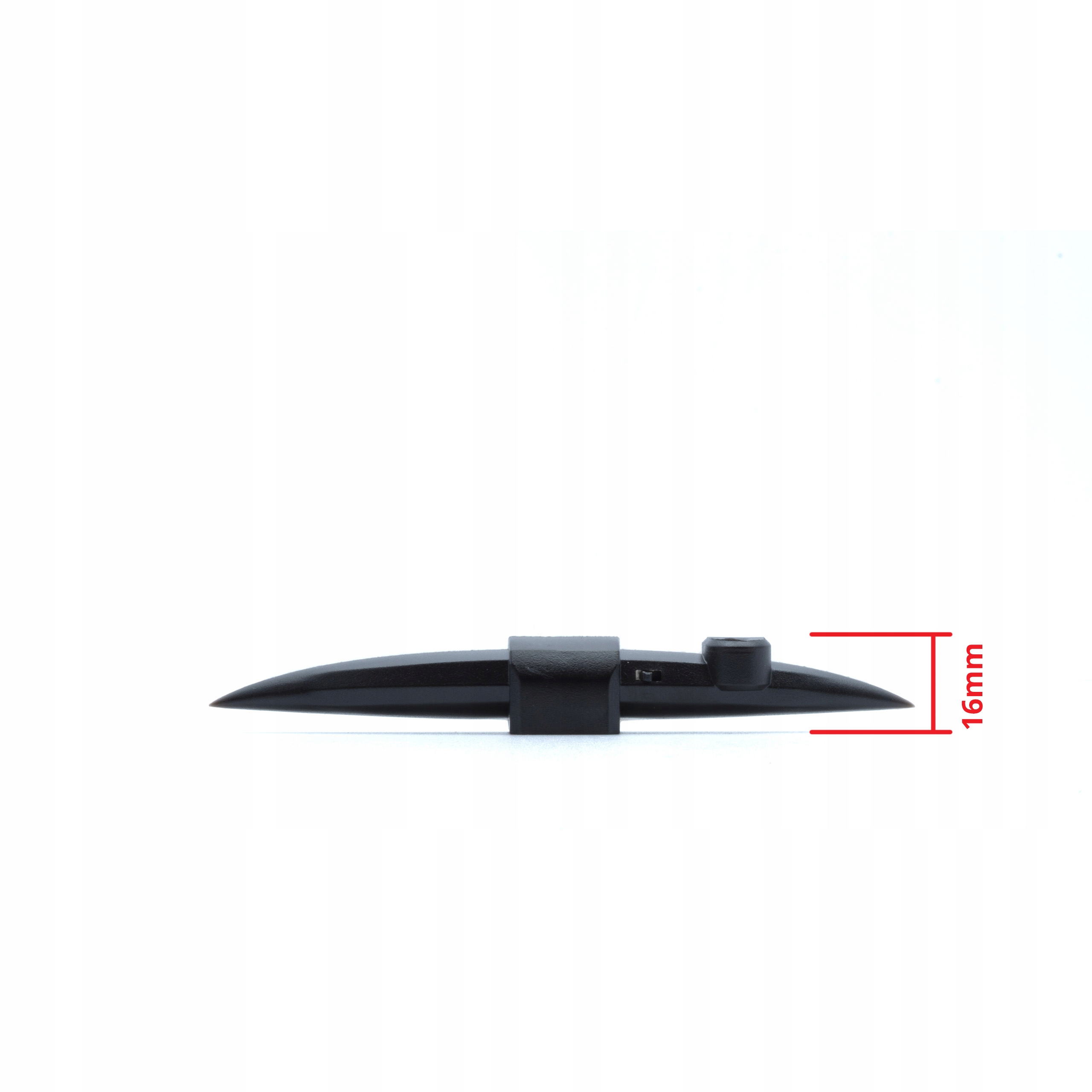

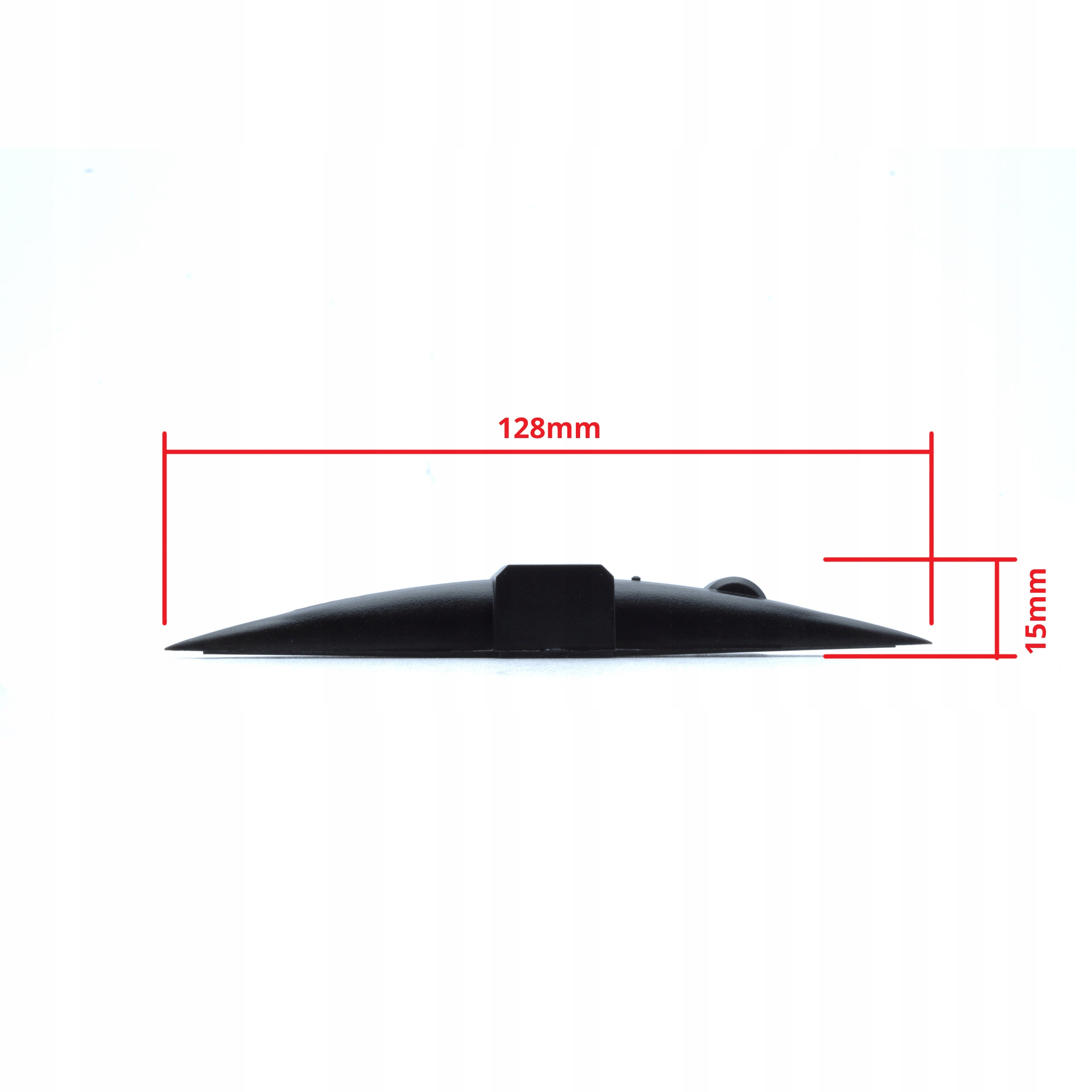

Display:

1. Синий 2.5-1.6 m

2. Зеленый 1.5-1.1 m

3. Желтый 1-0. 4 m

4. Красный 0.3-0.0 m

5. Distance indicator

Technical parameters of the set:

- источник питания: 12V DC

- потребляемая мощность: ~ 4W

- Device operating temperature: -30 ° C до + 80 ° C

- ультразвуковая частота датчиков: 40 кГц

- ошибка измерения: + / - 5cm

- Permissible bumper inclination angle: + / - 5 °

- Aluminum transmitter housing in the sensor

- Sensors color: white (Sensors can be painted in any color)

- Approval:Yes, E9 EMC ( the only sensors on the market with such approval! )

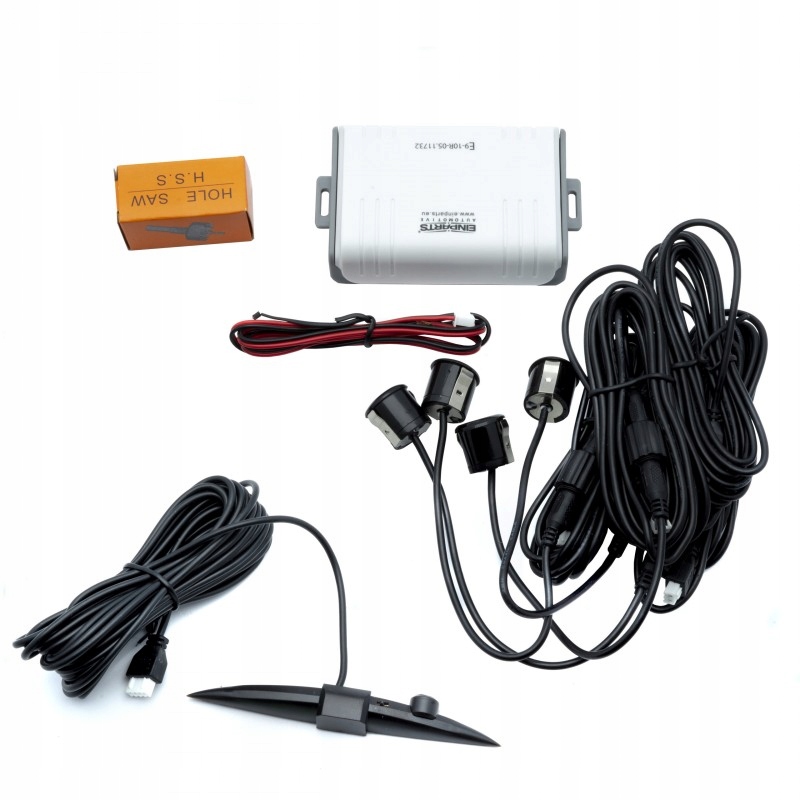

Included:

- Display

- 4 sensors in the size of 18.5 mm (Outer diameter) in black NO 52

- Панель управления

- Drill

- Necessary cabling

- User manual in russian

Our offers include sensors in other colors.Each of the sensors can also be repainted in any color.

Note: Not always the part sold in the auction fits the vehicle, because the periods given above are the production time of a given model, not the time of using the part. Эти периоды не всегда совпадали, и это было не для двух или более типов частей, чтобы быть использованными в одной модели. Please compare the photo from the offer and the technical description contained in the description of the item with the part installed in your car, and in case of uncertainty, please contact us by e-mail or telephone before purchasing.
