Mini COOPER R55 R56 r57 r58 мат эмулятор Plug

MINI COOPER European version

R55 R56 Р57 R58

WITH ORIGINAL PLUG

+ FREE

BELT EMULATOR

устройство используется для диагностики повреждений в системе SRS, и вы можете подтвердить или исключить повреждение мата в пассажирском сиденье.

The emulator connected in place of the original mat sends information to the Airbag controller that:

* There is a working mat in the armchair

* A passenger is seated in the seat

эмулятор должен быть подключен к установке автомобиля на месте поврежденного мата. Найдите матовое сиденье под пассажирским сиденьем и подключите штекер к установке автомобиля.

Cable marking:

Brown-GND (ground)

Green-signal

Red - 12V (power)

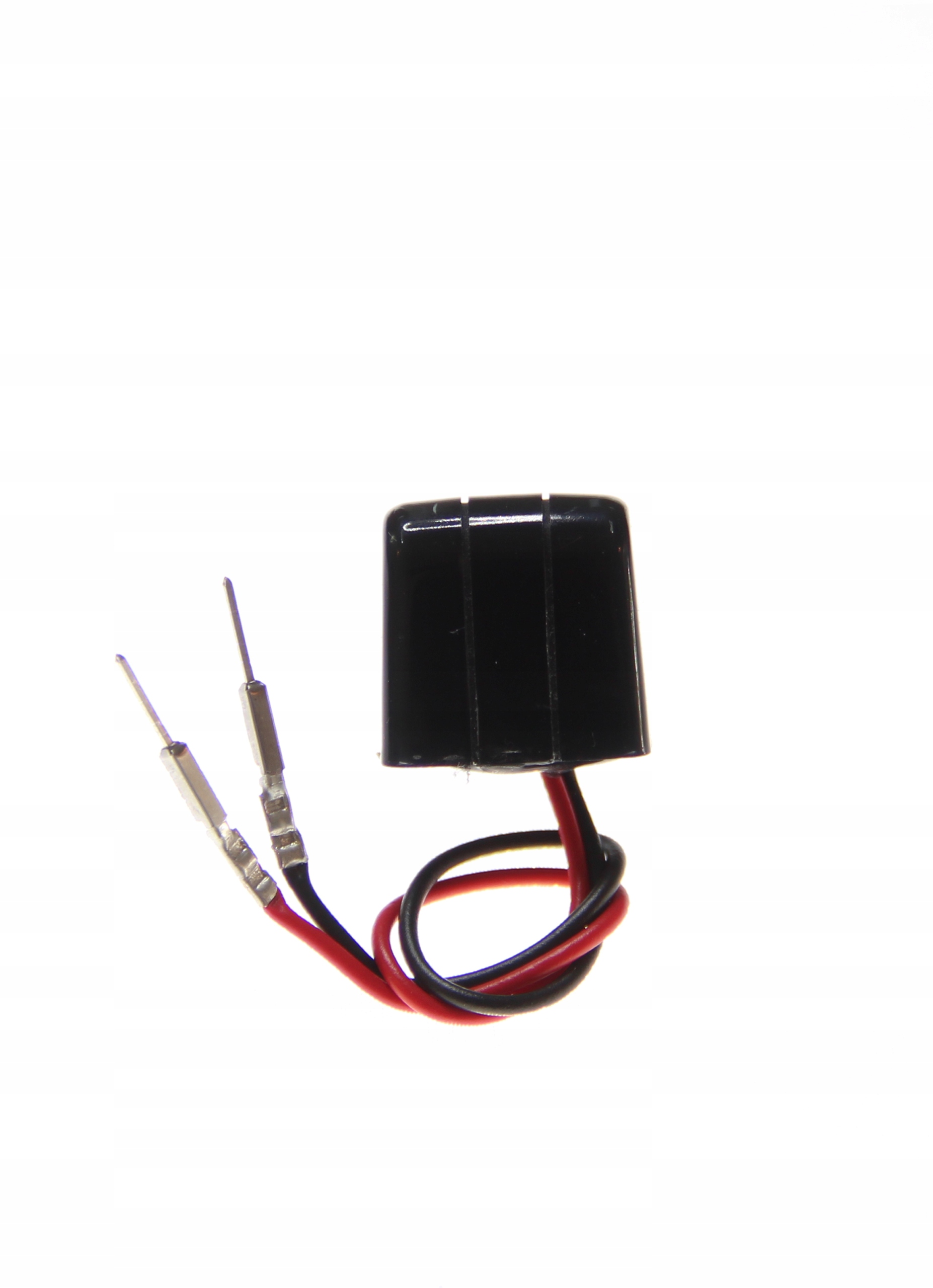

the device is used to diagnose damage in the SRS system, and allows you confirm or rule out damage to the seat belt buckle.

Installation instructions:

- under The passenger seat, find a plug with two wires going to the seat belt buckle

- unlock The latch and pull the plug out of the connector

- insert The pins from the emulator into the plug socket

- insert The plug back into the connector

The colors of the belt emulator wires may differ from those in the picture, but they does not matter when connected.

Emulators are manufactured in our company. Each emulator is tested on test stands that reflect the operation of the emulator in the car.
