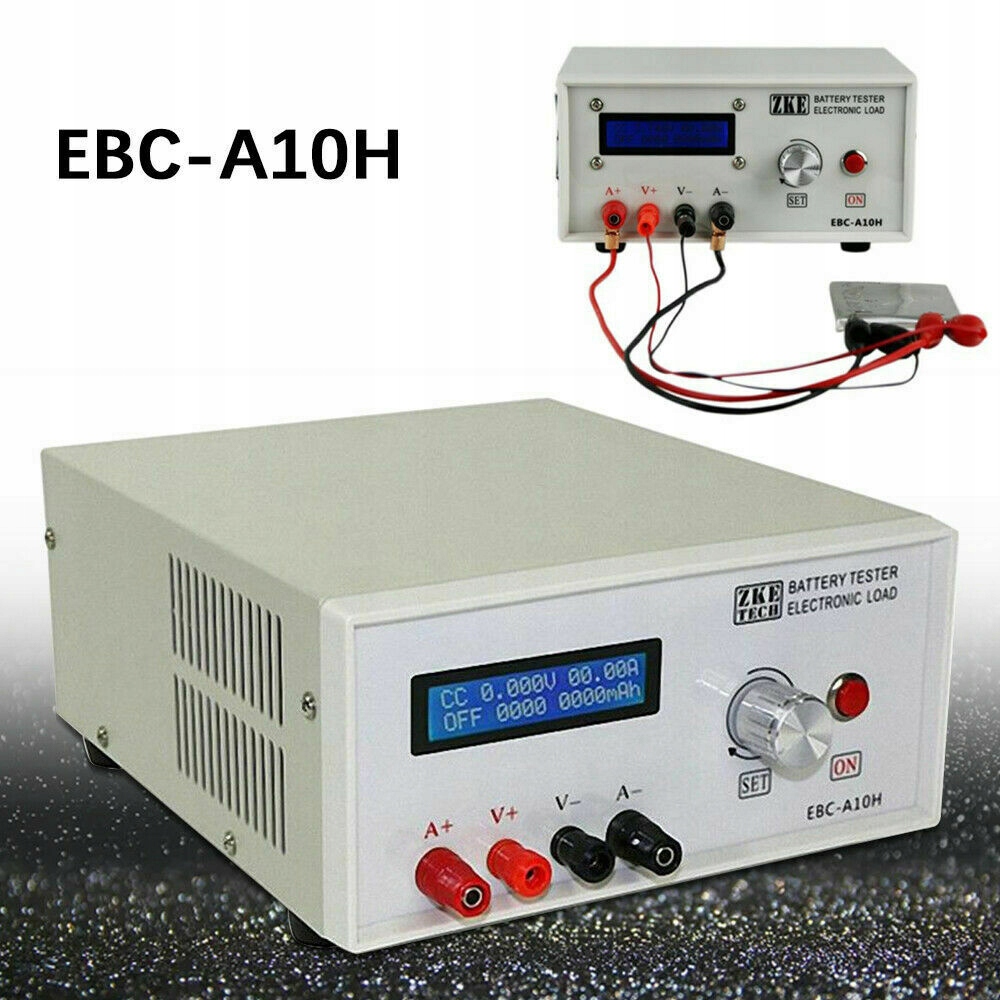

The EBC-A10H is an electronic load with a charging function. Suitable for charging and discharging capacity test of various batteries, mobile Power discharge test, Charging head Power efficiency test, Computer connection operation and more extensive functions via Online software.
Product specification:
Мощность: AC110-220V
настройка напряжения: разрядка: 0.00-30.00 V, минимальный размер шага 0.01 V
зарядка: 0.00-22.00 V, минимальный размер шага 0.01 V
Current setting: Discharge: 0.05-10.00 a минимум Step size 0.01 A (automatic Current limit when the power exceeds the limit)
Charging: 0.05-5.00 a минимум step 0.01 A (maximum current limited by supply current)
Discharge Mode: DSC-CC: Constant Discharge Current for testing Battery capacity or supply current
DSC-CP: Constant Discharge Power for simulating constant wattage devices or power testing
Charging method: standard charging: Nickel hydrogen, nickel chromium, lithium, Lithium iron, lead acid support;
CHG-CV: Non-standard DC charging for batteries only
Auto charge and discharge: support auto charge-Discharge-charge mode для тестирования емкости аккумулятора
напряжение тесты: accuracy 0.002-4.500 в (низкое напряжение) 0.003 в, error ± 0.5%
Accuracy 4.50 V-30.00 V (high voltage), 0.01 V, error ± 0.5%
Current test: 0.05-10.000 А, accuracy 0.005 A, ошибка ± 0.5%
емкость тесты: 10Ah, разрешение 0.001 Ah
10Ah-100ah, разрешение 0.01 Ah
Выше 100 Ач, разрешение 0.1 Ач
Connection method: Four-Wire detection, separate wiring for voltage and current channels to ensure measurement accuracy
ЖК-дисплей: voltage, current, capacity, time, power, Energy test data
Online computer: USB-TTL выделенный последовательный порт (mini USB interface, custom USB cable) computer control, drawing curves, Calibration benchmark, Firmware upgrade, charge and discharge cycle.

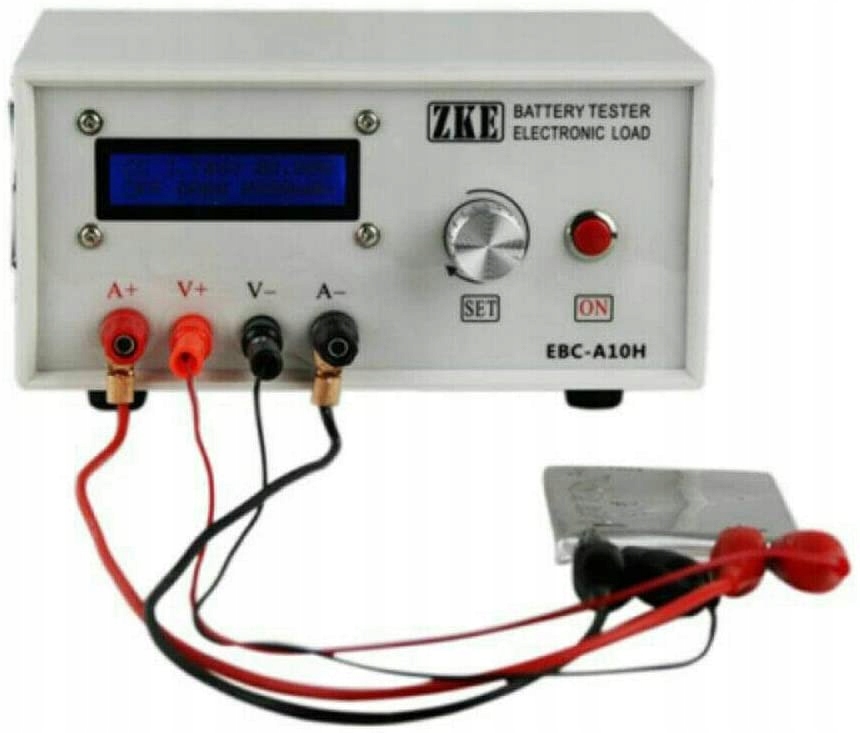

Tip: A + V + is connected to the positive battery, A_V_ is connected to the negative battery
Package includes:
1X тестер
1X онлайн-line
2x1 pairs test clip
1X шнур питания
Note:

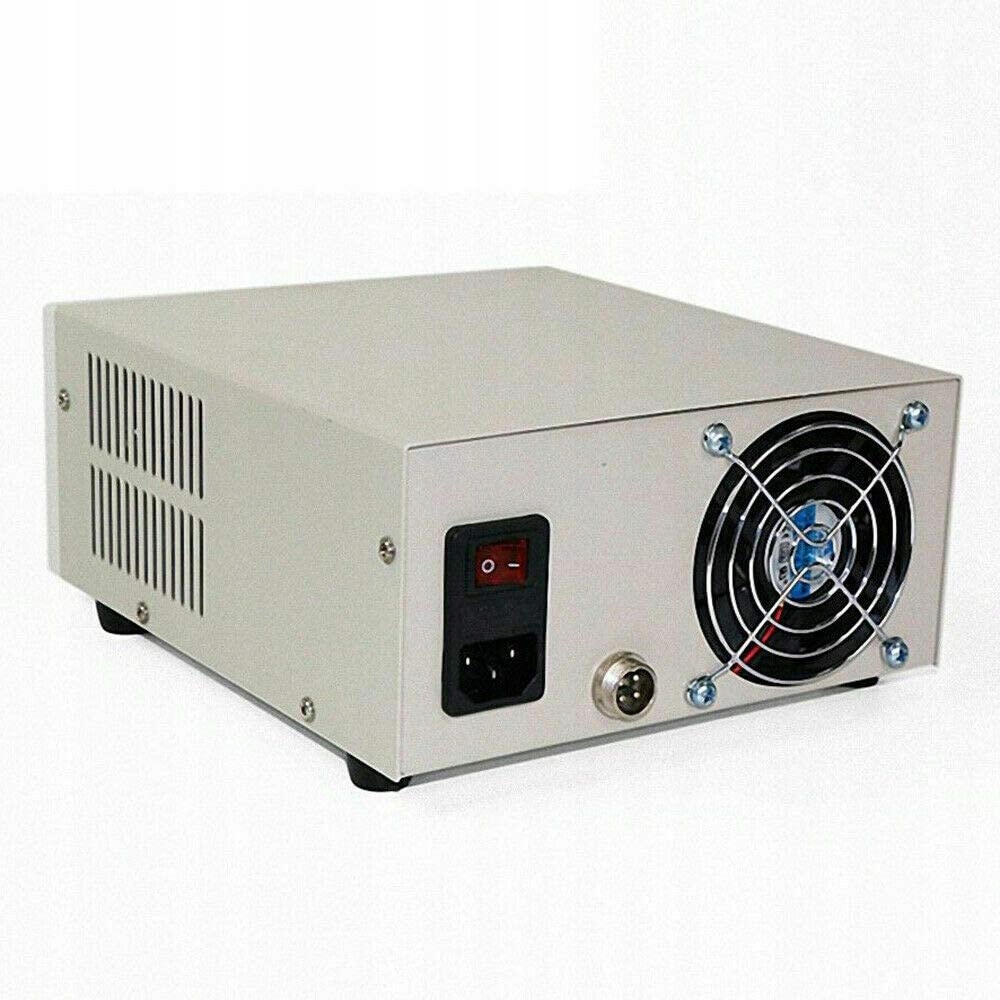

Built-in 24V Power module.
