Corteco driveshaft уплотнения левой и правой стороны - 2 pcs
улей>
Application:
Opel Astra F 1992 - 1998
1.4 и - C14NZ - 60km / 44kw
1.4 и - X14NZ - 44kw / 60hp
1.4 - 14nv - 55kw / 75hp
1.4 Si - C14SE-82km / 60kw
1.4 - 14se - 60kw / 82hp
1.4 и 16v - X14XEP - 90km / 66kw
1.6 и - X16SZ - 71km / 52kw
1.6 и - C16NZ / X16SZR - 75km / 55kw
1.6 Si-C16SE-100km / 74kw
1.6 и 16v - X16XEL - 100km / 74kw
1.7 td - X17DTL-68km / 50kw
улей>
Opel Astra F Classic 1998 - 2002
1.4 и - X14NZ - 44kw / 60hp
1.6 и - X16SZR - 75km / 55kw
1.6 и 16v - X16XEL - 100km / 74kw
улей>
Opel Astra G II 1998 - 2010
1.2 16V - X12XE - 48kw / 65hp
1.2 16V-Z12XE-55 кВт / 75 л. с.
1.4 16V - X14XE / Z14XE-66 кВт / 90 л. с.
1.4 16v Twinport - Z14XEP-66 кВт / 90 л. с.
1.6 8V - X16SZR - 55 кВт / 75 л. с.
1.6 8V - Z16SE-62KW / 84hp
1.6 16v - X16XEL / Z16XE - 74kw / 101hp
1.6 16v Twinport-Z16XEP-76kw / 105hp
1.8 16V - X18XE1-85kw / 116hp
1.8 16V - Z18XE-92KW / 125hp
1.7 TD - (X17DTL) - 50kw / 68hp
1.7 DTI - (Y17DT) - 55kw / 75hp
1.7 CDTI - (Z17DTL) - 59kw / 80hp
улей>
F17 and F13 manual gearboxes
Specification:
number of gears: 5
gear controls: lever (Astra F / Astra G / Astra H) / cables (Astra J)
amount of oil: 1.6 L
улей>
!!! After 2012, The F13 and F17 gearboxes use a different oil with the number 1940004 !!!
oil change:

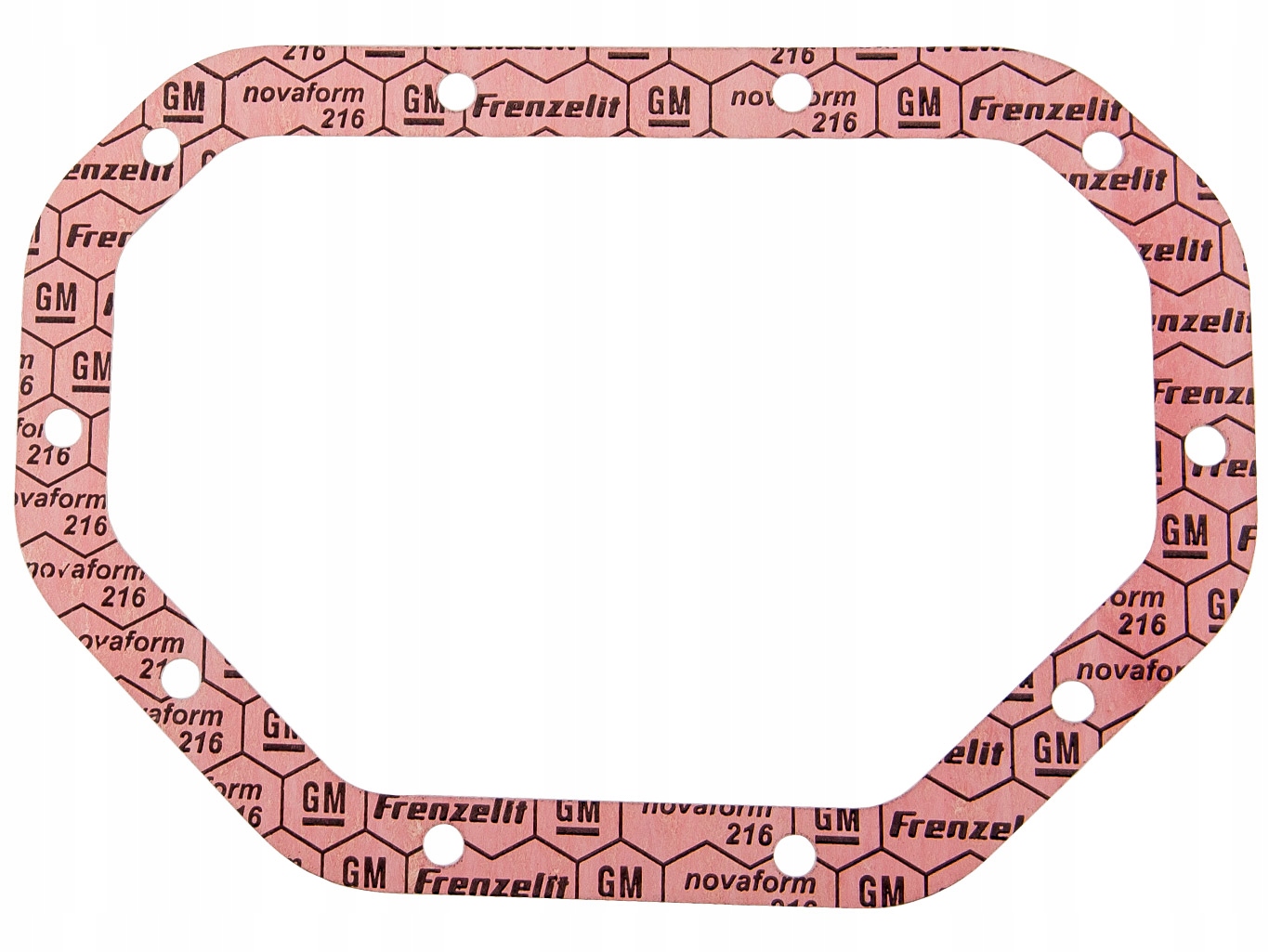

differential cover
датчик обратной передачи
overflow plug
draining the oil Fig. no. 1 - oil from the gearbox is drained by unscrewing The differential Gear cover
pouring fresh oil - there are two methods: the first by unscrewing the reverse Gear sensor Fig. no. 2 Pour the oil until it appears in the overflow plug ,The second pour oil through the overflow plug until the oil spills out
