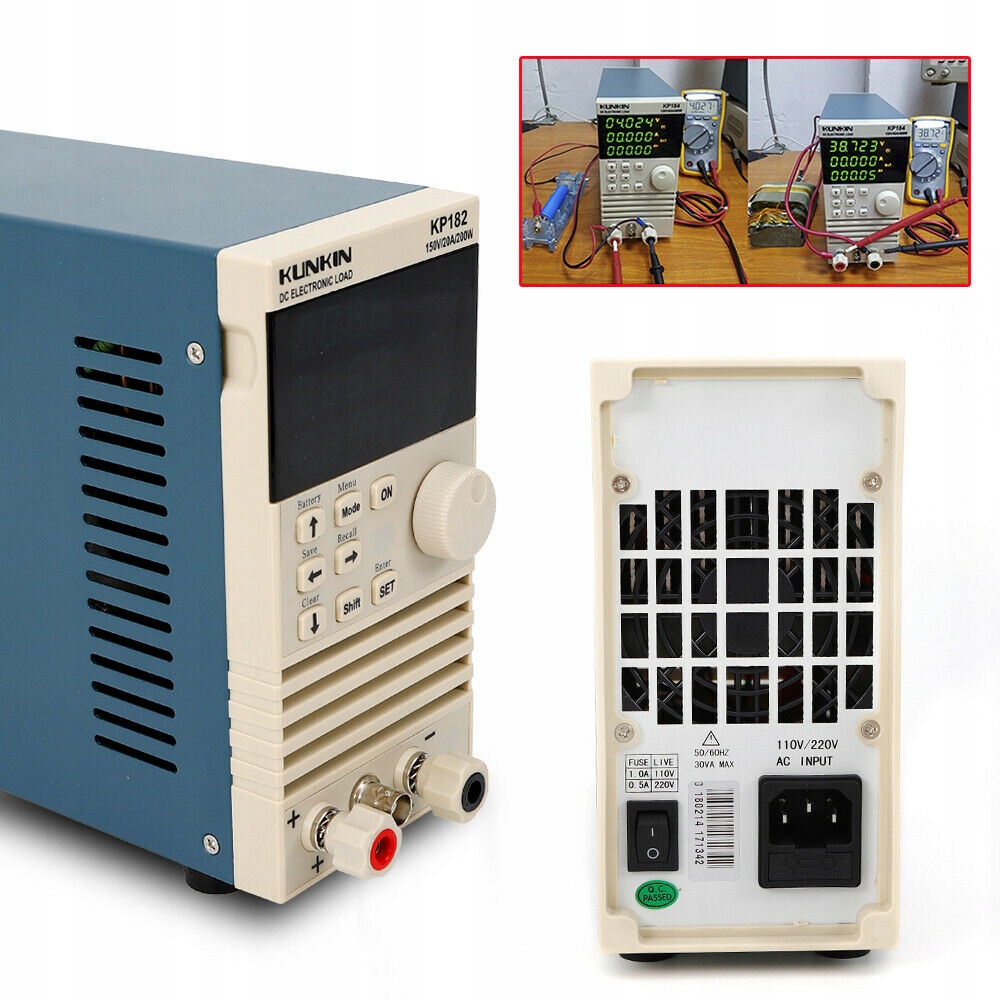

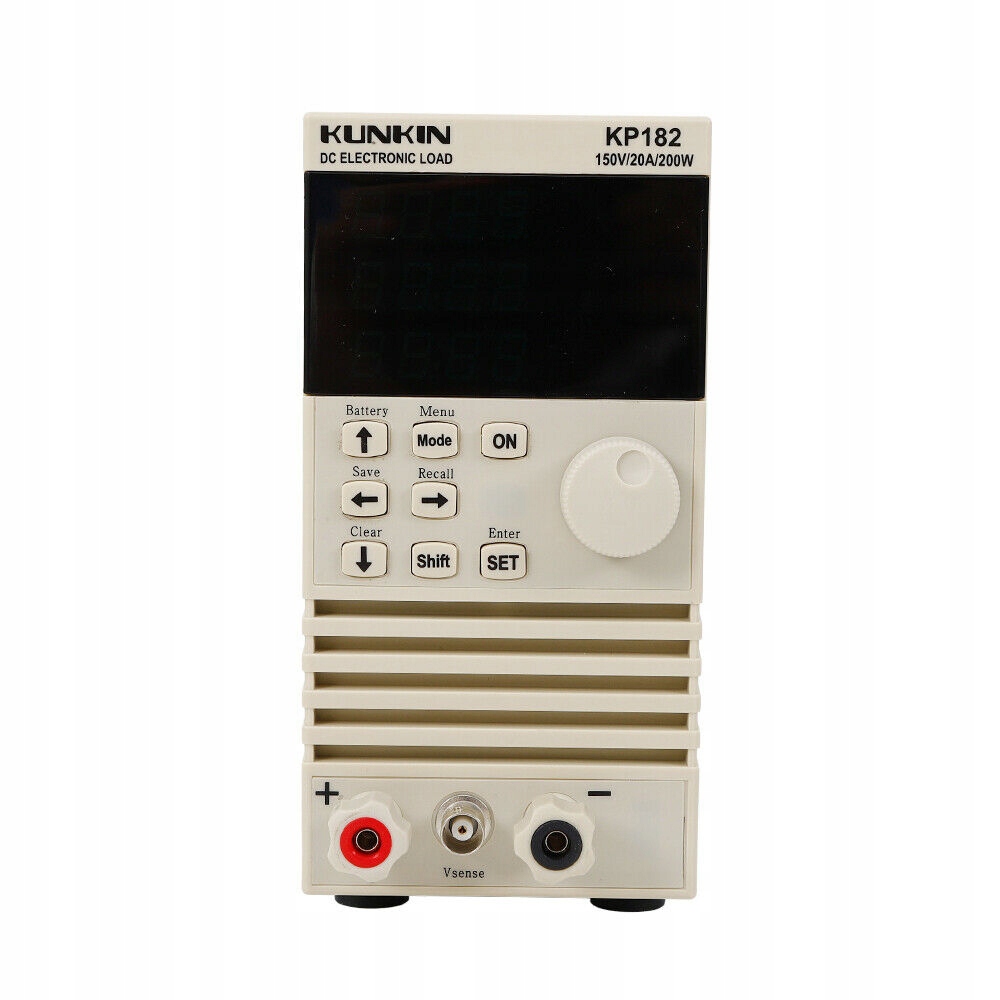

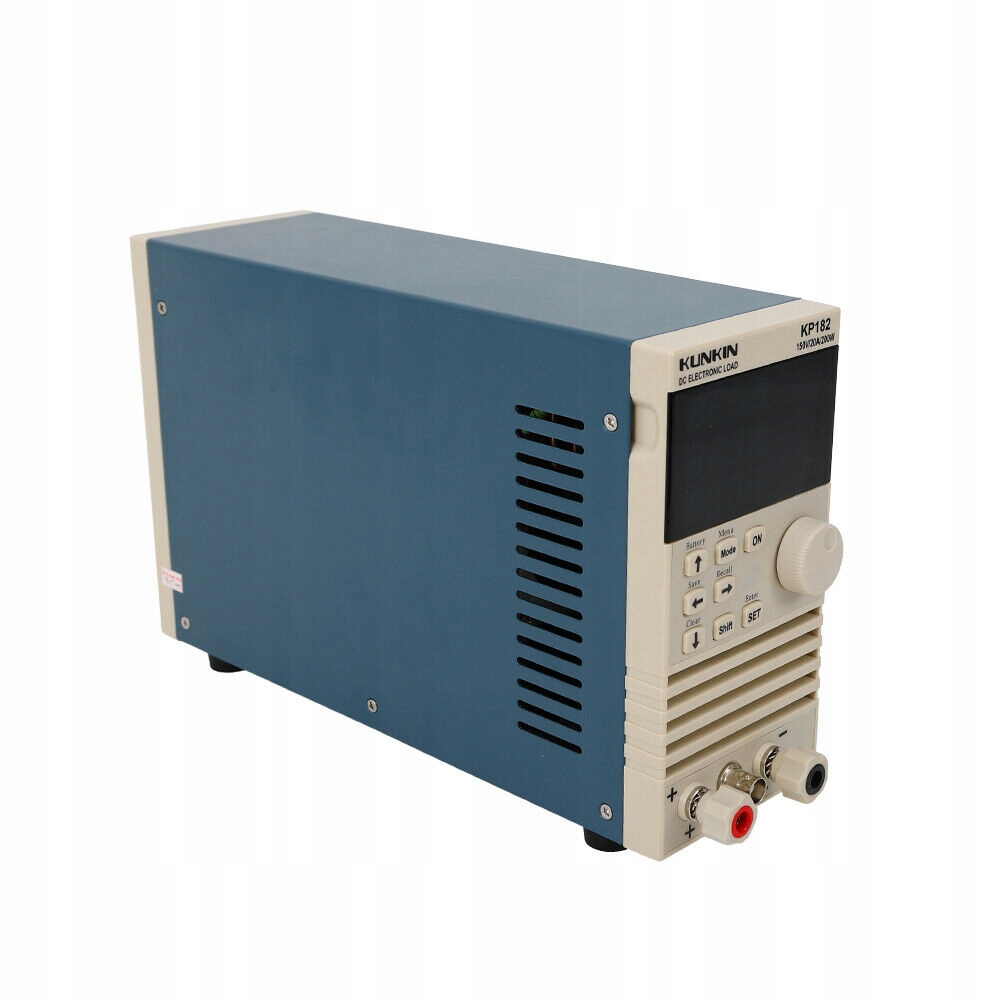

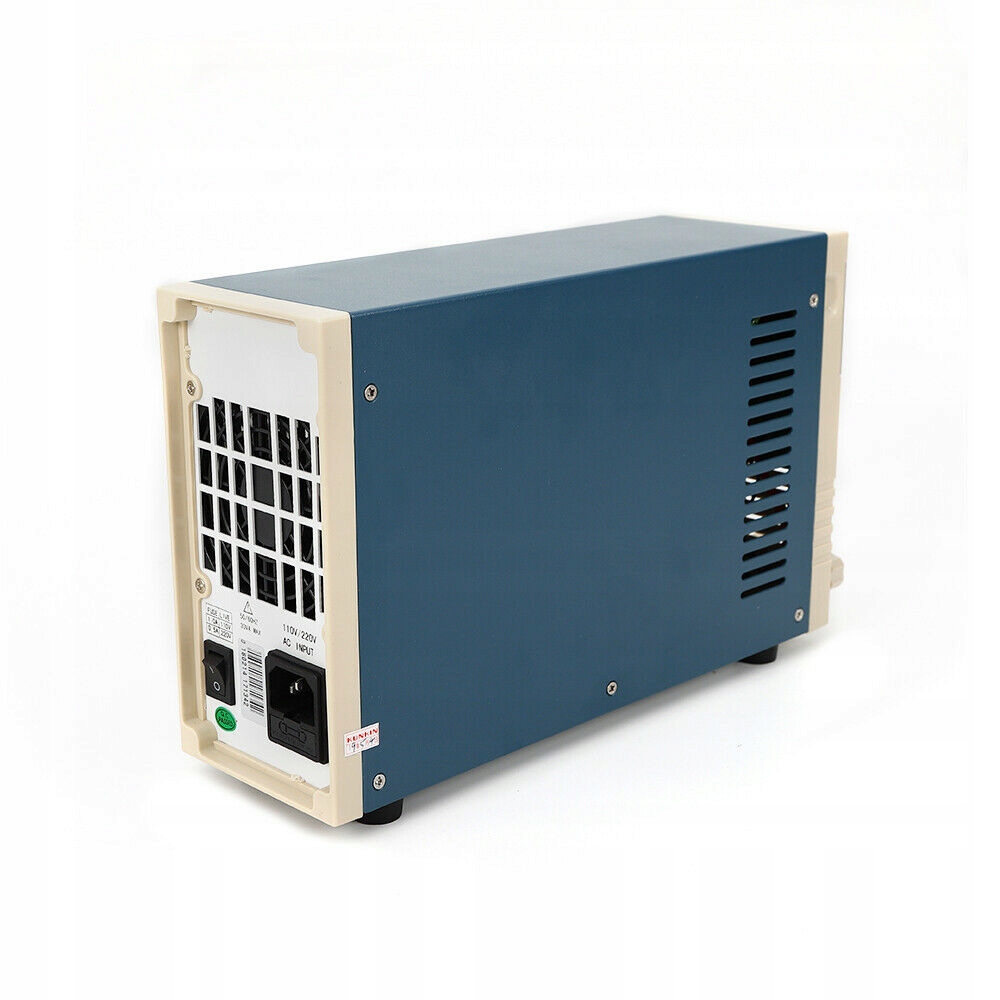

электронный тестер нагрузки KP182 DC тестер нагрузки батареи
Состояние | Новый |
---|
Состояние | Новый |
---|
электронный тестер нагрузки KP182 DC тестер нагрузки батареи
модель: Kp182
Power plug: EU plug
Power Input:
напряжение: AC 220V ± 10%, 50 ± 2 Гц
потребляемая мощность: <20 Вт
Load Input:
Load voltage: DC 1-150v
Current load: 0-20A
мощность нагрузки: 0-200w
Accuracy of measurement:
ток: ± 0.1% + 5ma
напряжение: ± 0.1% + 5mv
Control precision:
ток: ± 0.1% + 5ma
напряжение: ± 0.1% + 5mv
Communication method: Communication is not supported
безопасность:Over voltage (Ov): Greater than 152 V Outside load
Excess temperature( Ot): 85 ° C
Over Power( Op): Single channel 210w
вход питания предохранителя: 0.5 A
Ambient temperature range
0 ~ 500c
диапазон влажности окружающей среды: 10 ~ 90% Rhвходное напряжение постоянного тока в корпус withstands a voltage: ± 500 в DC
DC input to the case Insulation resistance: > 20mw, 500vdc
AC input to the case Insulation resistance: > 20mw, 500vdc
Dimensions (mm) L × B × H: About 300 × 90 × 190
Размер упаковки: 38.5 * 16 * 27см
Вес: 3.5 кг

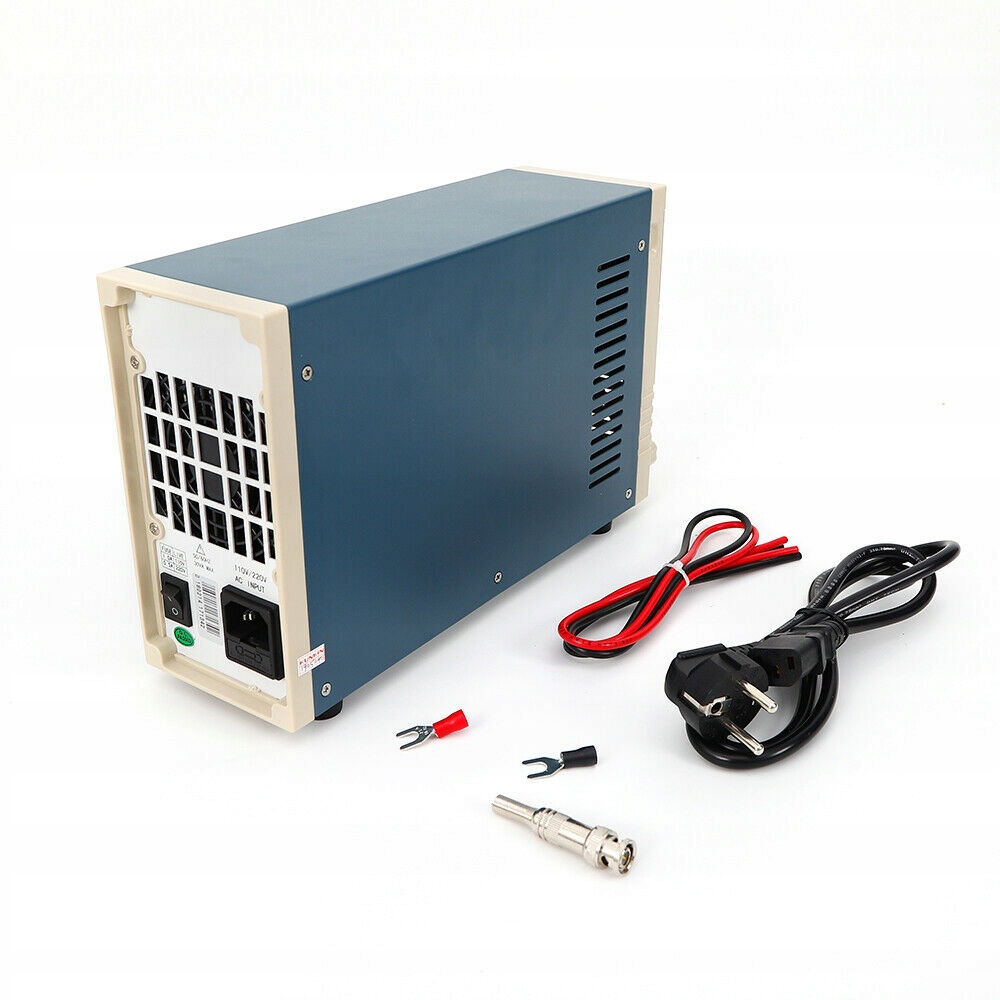

Package includes:1xkp182 DC electronic load
1X cable with plug
1X удаленный компенсационный терминал
2x negative test end
2x тестовый кабель
1x user manual
Load mode: Low basic Cc, Cv, Cw, CR Four basic load modes, low Input signal or reverse connection protection and alarm.
High precision, high stability: optimized Heat dissipation structure, high Power density and digital control mode, high precision and good stability.
Protection function: with over voltage, over current, power supply, over temperature protection function, remote low voltage measurement function;
Automatic test function: with external ввода / вывода trigger signal, Pass, fail command
Multi-function test function: Low 10khz dynamic test function; Low battery capacity test function; Low battery Internal resistance test function; Low overcurrent point / time test function; Pwm low fan control, 220V AC Low Power switch.
