1310 - Magic III reducer 250 / 350km AC соленоид клапан, сопло

В наличии
Код товара:
11857286598
4239,00 ₴
Основные параметры
Дополнительная информация
Состояние Новый
Номер детали 1310
Описание
Reduktor Magic III 250 350km Elektrozawor AC dysza

Modern reducer for sequential gas injection

MAGIC III COMPACT with AC solenoid valve (with built-in filter)

Original Magic III reducer - the latest revised version

Спасибо за использование специальной газовой системы с поршнем в редукторе, который меняет его операционную характеристику, он очень эффективен, пока обслуживает очень маленький размер.

The reducer supports vehicles with a power not exceeding 250 HP, and in the case of using a second, additional connection, 350 HP. The spigot is included

The reducer has been tested, among others, in the Audi 4,2 Jeep 4,7 Ram 5700 Saab turbo and many others

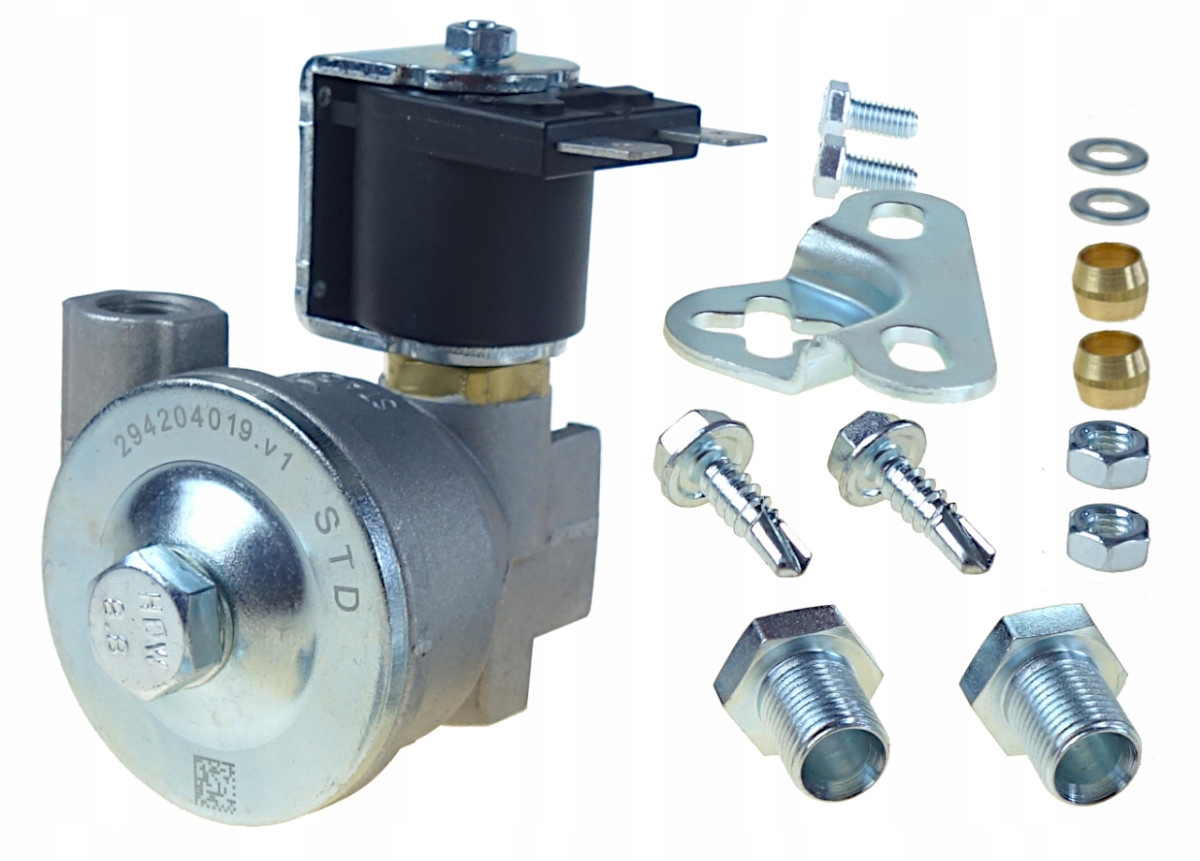

the composition of the set:

  • Reducer
  • встроенный датчик температуры
  • Barrels and уплотнительные клешни
  • монтажная пластина
  • Small assembly elements
  • Second Gas outlet connection
  • AC STD 6x5 LPG electrovalve
  • FILTER of liquid phase in the solenoid valve
  • Technical data:

  • максимальная производительность: 257kw / 350hp
  • рабочее давление: 0.9-1.6 bar
  • источник питания: медный провод Cu 6mm or equivalent
  • разъем питания: M10x1.0
  • Outer diameter of the gas outlet port: 12 мм
  • Outer diameter of the water System nozzles: 16 мм
  • Outer diameter of the Vacuum nozzle: 5mm
  • рабочая температура: -20 ° C ÷ 120 ° C
  • сопротивление датчика температуры
  • : 4.7 кОм
  • катушка клапана соленоида
  • : 12V
  • Solenoid valve input / output: 6mm cu wire or equivalent
  • input / output filter: 6mm cu wire or equivalent
  • улей>

    Item Number: 0530, 0358, 71948

    Reduktor Magic III 250 350km Elektrozawor AC dysza Part manufacturer other
