1.40.95.06.2545 - 2X ручной гидравлический насос 1-STR + 2-STRIP ZB 6L

Production:

Original Hydrolider brand product, символ: 1.40.95.06.2545

Application:

the device is widely used in hydraulic systems in agriculture, construction and industry.

Versatile use:

Application example: control of two actuators working separately, one single-acting, the other double-acting.

The pumps work perfectly with all Hydrolider actuators from our offer.

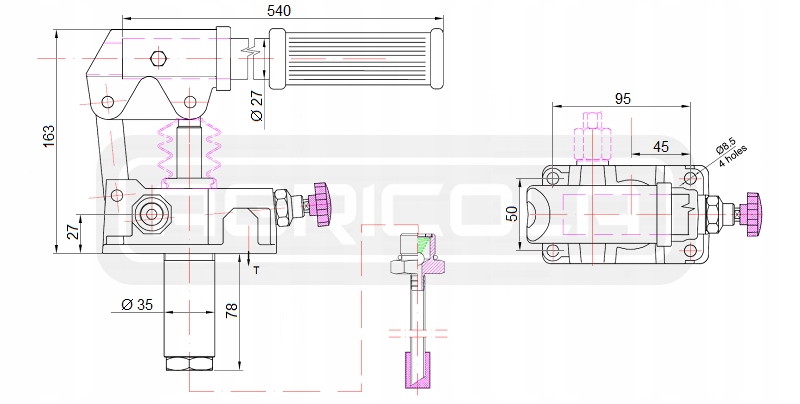

Technical parameters, hydraulic diagram and graphic diagram of a 25cm3 single-sided pump:

One oil port адреса from the single-acting pump, enabling the connection of a single-acting cylinder. In single-acting cylinders, the return function of the piston rod is performed by the spring or the mass of the отменены материал, the return of the piston rod is possible only after releasing the drain valve in the pump.

Technical parameters, hydraulic diagram and graphic diagram of the 45cc double-sided pump:

There are two oil connections from the double-acting pump that enable the connection of a double-acting cylinder. In double-acting cylinders, The piston rod extends or retracts depending on the setting of the oil flow direction. Изменение направления потока контролируется левером, установленным на насос.

Technical data of the tank:

Powder coated tank with a capacity of 6 liters, made of high-quality steel on a professional production line. Проверено на строгость и прочность. Weight: 3.20 кг

The kit includes (рис. ) :

For the sake of safety and quality of transport, the set is shipped untwisted.
