1.12.15.000 - БЛОК ПИТАНИЯ HYDRAULIC UNIT 12V + ПУЛЬТ ДИСТАНЦИОННОГО УПРАВЛЕНИЯ

В наличии
Код товара:
11738476422
18056,00 ₴
Основные параметры
Дополнительная информация
Состояние Новый
Номер детали 1.12.15.000
Описание
ZASILACZ AGREGAT HYDRAULICZNY 12V PILOT STERUJACY Weight with packaging 20 kg

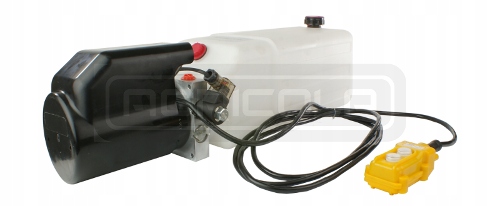

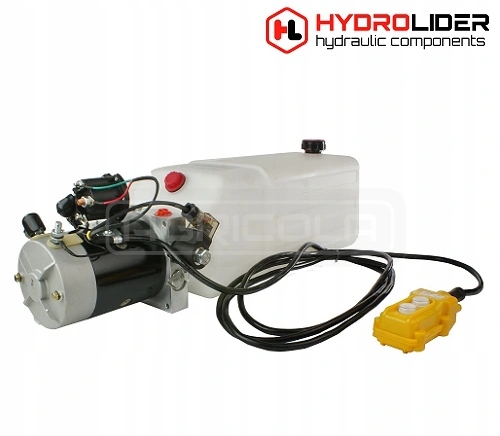

COMPLETE 12V HYDRAULIC POWER SUPPLY

the composition of the complete power supply (aggregate):

  • 2.6 cc гидравлический насос
  • Electric motor 2.0 kW 12V
  • connecting plate with the overflow valve
  • plastic container 11 liters
  • engine cover
  • пульт дистанционного управления (вверх-вниз) + кабель
  • улей>

    Production:

    Original product of the Hydrolider брэнд, символ: 1.12.15.000

    Application:

    it is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

    возможность управления однопоточным приводом. Он был использован в устройствах, где гидравлическая сила должна была поднять нагрузку, в то время как низкая нагрузка берет место под влиянием гравитации и давления на lifted load.

    It is mainly used for lifting a load box in various types of trailers, dump trucks, hydropackers, presses, lifts, loading platforms, car lifts, cranes, agricultural and industrial machines.

    Terms of use:

    The unit is complete, ready to work, Just connect the hoses and fill with oil. Recommended continuous work no longer than 3 minutes, restart after 5 minutes of rest.

    Additional equipment included:

  • a cover защищает то the engine and other fragile elements
  • remote control with a cable to control the lifting and lowering of the load box
  • ZASILACZ AGREGAT HYDRAULICZNY 12V PILOT STERUJACY Part number 1 12 15 000

    Technical data:

  • мощность двигателя: 2.0 kW
  • Electric voltage: 12V
  • Pump capacity: 2.6 cm3 / revolution, in this set 7Л / мин
  • подключение: BSP 3/8 " внутренняя нить.Ли>
  • Overflow (safety) valve: YES
  • максимальное рабочее давление: 180 бар
  • емкость масляного бака: 11l
  • улей>

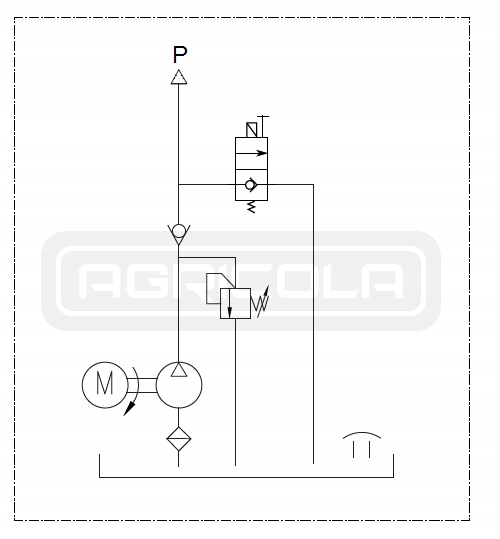

    Hydraulic diagram of the offered power supply (photo):

    ZASILACZ AGREGAT HYDRAULICZNY 12V PILOT STERUJACY EAN 2000000090047
    ZASILACZ AGREGAT HYDRAULICZNY 12V PILOT STERUJACY Part manufacturer Hydrolider

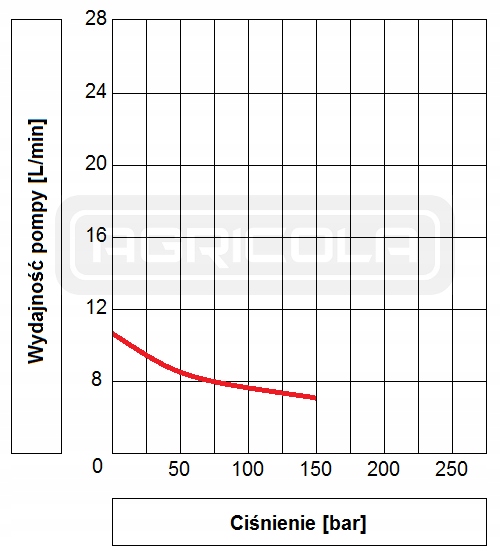

    Power supply efficiency with changing load loads:

    As the weight of the load increases, the pressure on unloading increases. The diagram shows the change in Pump capacity depending on the pressure change in the hydraulic system (рис. ):

    Important !!!

    Agricola sets are designed in such a way they can be easily assembled by yourself. Из-за безопасности товаров в транспорте и ограничений, вызванных правилами курьерских компаний, набор поставляется без винта.
