1.12.00.115.3 - Блок питания гидравлический блок 12V 1.6 KW 3. 3cm3 8L

1.12.00.115.3 - Блок питания гидравлический блок 12V 1.6 KW 3. 3cm3 8L

Что вы ищете?

1.12.00.115.3 - Блок питания гидравлический блок 12V 1.6 KW 3. 3cm3 8L

В наличии
Код товара:
12195385495
33321,00 ₴
Основные параметры
Дополнительная информация
Состояние Новый
Номер детали 1.12.00.115.3
Описание
ZASILACZ AGREGAT HYDRAULICZNY 12V 1 6KW 3 3cm3 8L Weight with packaging 12 kg
COMPLETE 12V HYDRAULIC POWER SUPPLY

the composition of the complete power supply (aggregate):

  • 3.3 cc гидравлический насос
  • 1.6 kW 12V electric motor
  • connecting plate with the overflow valve
  • соленоидный клапан для управления двойным действующим цилиндром
  • металлический бак 8 букв
  • улей>

    Production:

    Original Hydrolider brand product, символ: 1.12.00.115.3

    Application:

    Provides control of one section, E. g. double-acting actuator.

    it is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

    It is mainly used for lifting and lowering the load box in various types of trailers, dumpers, hydropack, presses, lifts, loading platforms, car lifts, cranes, agricultural and industrial machines.

    Terms of use:

    The unit is complete, ready to work, Just connect the hoses and fill with oil. Recommended continuous work no longer than 3 minutes, restart after 5 minutes of rest.

    Technical data:

  • мощность двигателя: 1.6 kW
  • Electric voltage: 12V
  • Pump capacity: 3.3 cm3 / revolution, 8.5 Л / мин in this set
  • подключение: BSP 3/8 " внутренняя нить.Ли>
  • Overflow (safety) valve: YES
  • максимальное рабочее давление: 85 бар
  • емкость масляного бака: 8L
  • улей>

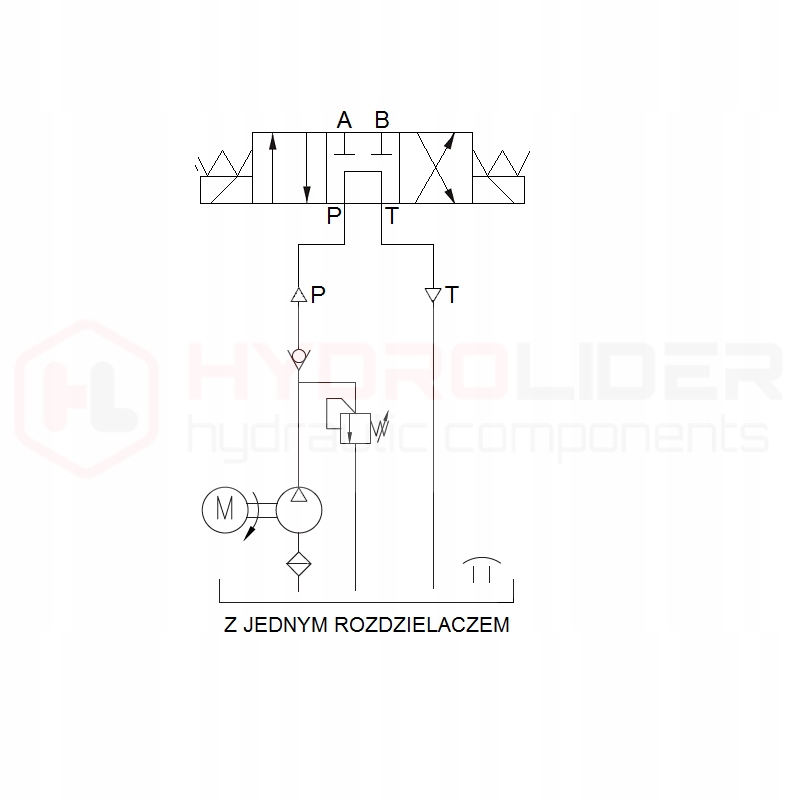

    Hydraulic diagram of the offered power supply (photo):

    ZASILACZ AGREGAT HYDRAULICZNY 12V 1 6KW 3 3cm3 8L Part number 1 12 00 115 3

    Important!

    Agricola sets are designed in such a way they can be easily assembled by yourself. Из-за безопасности товаров в транспорте и ограничений, вызванных правилами курьерских компаний, набор поставляется без винта.
