1.10.60.031 - ELECTRIC DISTRIBUTOR 3 SEK 50L 12V + CONTROL

3-SECTION HYDRAULIC DISTRIBUTOR

CETOP 03 NG6 ELECTRICALLY CONTROLLED 12V INCLUDED WITH a PANEL AND a HARNESS of CABLES

Production:

The original product of the Hydrolider brand, manufacturer's символ: 1.10.60.031

Application:

it is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

распределитель адаптирован к различным типам машин, таким как: сельскохозяйственные машины, тракторы, распылители, повороты, циклопы, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines и другие устройства с гидравлической системой.

панель позволяет вам контролировать начальный раздел и три рабочих раздела В электрически контролируемом гидравлическом манифолде. A set of cables enabling electrical connection of all manifold sections with the control panel.

технические данные:

the set includes: valve block, unloading section, three manifolds, a set of connections with an m18x1.5 output and a control panel with a bundle of cables.

Recommended Oil flow in the system: 0-50 л / мин.

Example of control: three double-acting actuators.

материал:

Distributor body and steel sliders, electric свечи and plastic clamping nuts, block made of steel or aluminum, depending on the batch, plastic panel.

< / div > < div class="text" >

GENERAL FEATURES of the SEPARATOR:

Principle of operation:

The manifold has one starting section and three working sections. Начальная секция, другая загрузка, является необходимой, ее задача-освободить насос, пока мы не контролируем любую рабочую секцию распределителя.

No working section will work if no current is applied to the starting section, therefore, the electrical connection must be configured so that any electrical signal applied to the working section must reach the starting section simultaneously.

Control:

The slider of the starting section, two-position (0 - 1), on a spring, i.e. IT returns to the neutral position after cutting off the power supply. пока слайдер находится в нейтральном положении, масло идет к переполнению, насос затем отключен.

the principle of operation of the slider:

<улей>

Neutral 0 position (текущая подача на катушку отключена) it is not possible to obtain pressure in the working sections.

Working position 1 (product inlet to the coil open) possibility of obtaining pressure on working sections.

Three-position slider of the working section (1 - 0 - 2), on a spring, i. e. IT returns to the neutral position by itself after cutting off the power supply.

the principle of operation of the slider:

<улей>

Neutral 0 position (текущая подача на обе катушки отключена) привод поршневого стержня стоит - масло идет к переполнению.

Working position 1( the supply produces only to the first coil), The Actuator ' s piston rod extends.

Working position 2( the supply produces only to the second coil), The Actuator piston rod retracts.

Hydraulic diagrams on the right side, starting section diagram from the top and working sections diagram below:

Electricity:

Power supply direct current (DC) 12V

Connection (internal threads in the body):

<улей>

Pump feed( P): BSP 1/2 " internal thread

Return to tank( T): BSP 1/2 " Female thread

Sections (A1, A2, A3; B1, B2, B3): BSP 3/8 " внутренняя нить

диапазон давления:

<улей>

Maximum pressure on the supply: 250bar

Maximum pressure on the return: 50Bar

Maximum pressure on sections: 300bar

overflow valve is factory set at 175bar.

Possibility of independent regulation, full turn change by 30Bar.

Oil types recommended by AGRICOLA:

<улей>

rarer high-quality oil: Lotus AGROL BOXOL 26

a thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

рекомендуемый диапазон температуры масла:

<улей>

Permissible ambient temperature: -40 C до +60 C

Permissible Oil temperature: -15 C до +80 C

GENERAL FEATURES of the control PANEL:

All up and down switches with automatic centering (1-0-2) without a latch.

Each panel is sold complete with a two-meter Power cord and a combined four-meter cable with plugs connecting the panel with the splitter. We also have sets of 3M, 6m or 10M Extension cables available at other auctions.

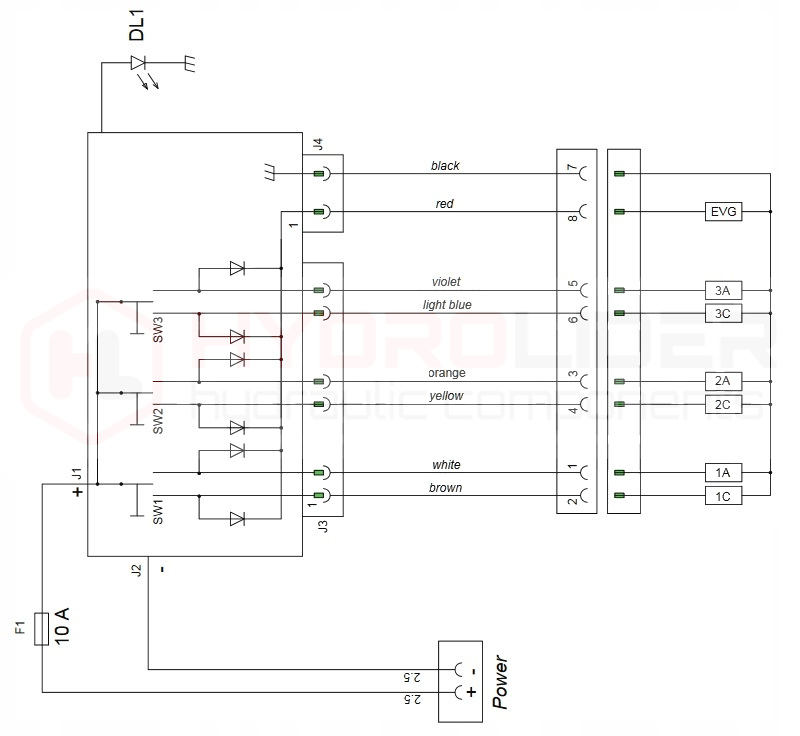

когда любой переключатель включен, сигнал simultaneously также применяется к дополнительной паре проводов, которая может быть использована для активации предупреждающего сигнала (horn, beacon) или для разблокировки катушки клапана (cetop Type manifolds), или для переключения насоса через реле.

Important !!!

Agricola sets are designed in such a way they can be easily assembled by yourself. Из-за безопасности товаров в транспорте и ограничений, вызванных правилами курьерских компаний, набор поставляется без винта. The set is accompanied by a precise, pictorial assembly instruction along with a list of individual elements included in it.
