TRANSDUCER GT8HW-IH Garmin 010-12401-10

Garmin GT8HW-IH 010-12401-10 источника

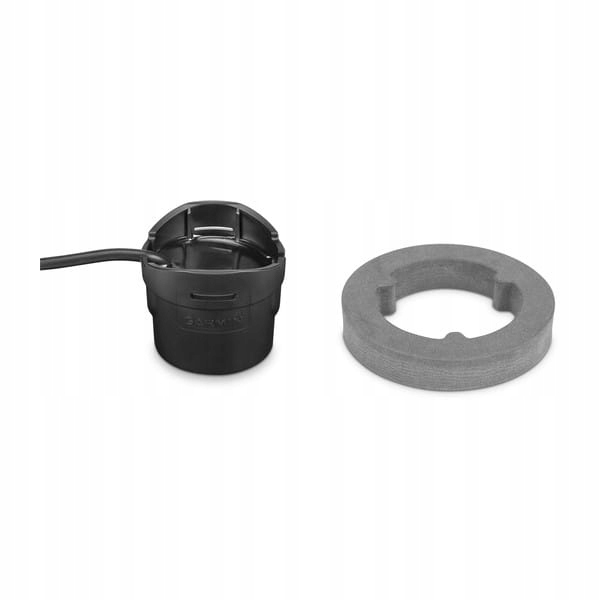

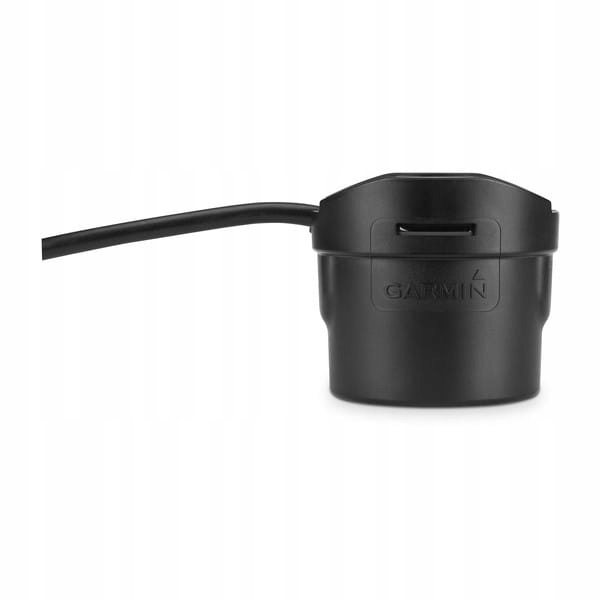

The GT8HW-IH источника is ideal for fishing boats where the источника can be installed inside the стеклопластик hull rather than on the transom where holes could cause various problems. Requires a flat section of the hull for assembly and is ideal for high-speed boats where precise depth records are important.

The 8-pin источника is equipped with traditional wide-range CHIRP sonar (150-240kHz) rated at 250 ВТ. Can be used with the GT30-TM источника and adapter cable to maintain depth at high speeds and scan at троллинг speeds.

будьте уверены, чтобы следовать инструкциям по установке, чтобы избежать повреждения вашей лодки.

артикул: 010-12401-10

Specification:

вес: 0.29 кг (0.63 lb)

длина шнура: 6m (20ft)

Number of connector pins: 8

Dimensions:

Transducer: 88 x 45 x 56 мм (3.5 x 1.8 x 2.2 in)

Frequency:

Traditional: CHIRP 150-240 кГц

Мощность передачи:

Traditional: 250 Вт

максимальная глубина:

Traditional: 800 футов (243.8 м)

Beamwidth (°) LF / HF (-3 дБ):

Traditional: 24/16

Water temperature reading: No.

in box:
